DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0922548H2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
1,380 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 58.1 CFM (1.63m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 38.0dB(A) | 9.6 W | 3200 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922512J2B-BT4FAN 92X25MM 12VDC PWM/TACH MOLEX |
3,424 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 25.0dB(A) | 1.08 W | 2100 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922548M2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
3,981 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 34.0dB(A) | 6.72 W | 2850 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0802548I2B-3T3FAN 80X25MM 48VDC TACH MOLEX 22- |
4,634 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 55.6 CFM (1.56m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 6.24 W | 4000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922512M2B-BT4FAN 92X25MM 12VDC PWM/TACH MOLEX |
2,229 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 34.0dB(A) | 1.68 W | 2850 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0922548J2B-2T2FAN 92X25MM 48VDC MOLEX 22-01-10 |
4,241 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 4.32 W | 2100 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
CFM-A238V-126-440-11FAN AXIAL 120X38MM 12VDC WIRE |
1,521 | 10.92 |
|
Datasheet |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 44.0dB(A) | 5.81 W | 2600 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
|
CFM-A238V-131-480-11FAN AXIAL 120X38MM 12VDC WIRE |
1,880 | 10.92 |
|
Datasheet |
CFM-120V | Tray | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 138.0 CFM (3.86m³/min) | 0.360 in H2O (89.7 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 48.0dB(A) | 11.5 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.481 lb (218.18 g) |
|
|
109P0412A7D0140X15MM 12V DC LCKRTRSNS |
3,840 | 0.00 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | - | 6000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

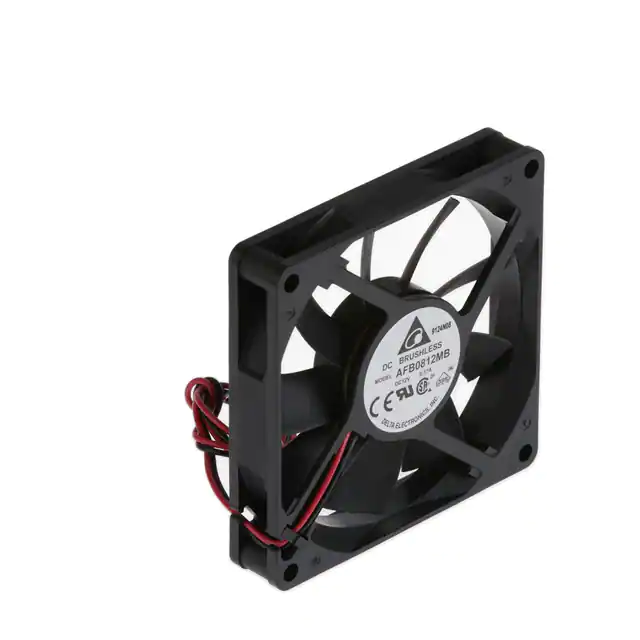

AFB0812MBFAN AXIAL 80X15MM 12VDC WIRE |
4,560 | 9.55 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 28.3 CFM (0.792m³/min) | 0.107 in H2O (26.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 30.5dB(A) | 1.32 W | 2700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
AFB0824HFAN AXIAL 80X25.4MM 24VDC WIRE |
2,281 | 9.55 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 35.3 CFM (0.988m³/min) | 0.159 in H2O (39.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.68 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
AFB0812LFAN AXIAL 80X25.4MM 12VDC WIRE |
4,724 | 9.55 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 27.9 CFM (0.781m³/min) | 0.102 in H2O (25.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 25.0dB(A) | 1.08 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

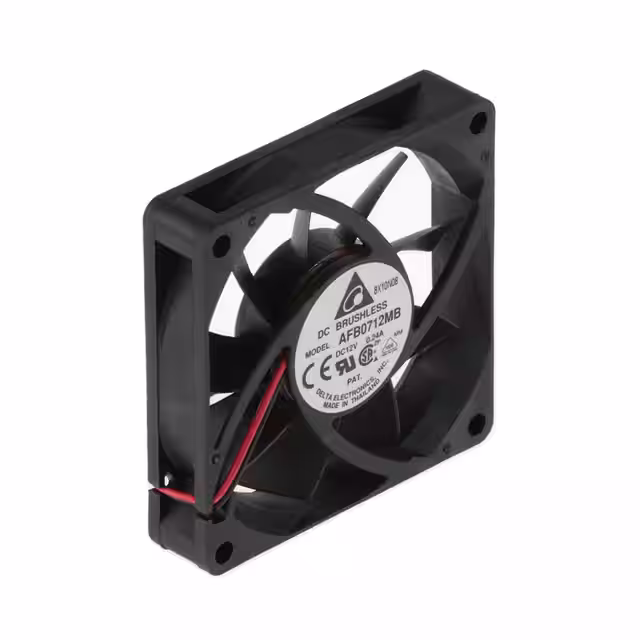

AFB0712MBFAN AXIAL 70X15MM 12VDC WIRE |
3,777 | 9.55 |
|
Datasheet |
AFB | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 28.2 CFM (0.790m³/min) | 0.123 in H2O (30.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.68 W | 3300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
|
DC0802548J2B-BT4FAN 80X25MM 48VDC PWM/TACH MOLEX |
3,714 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 80mm L x 80mm H | 25.40mm | 47.6 CFM (1.33m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 35.0dB(A) | 7.2 W | 3500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922524U2B-BT0FAN 92X25MM 24VDC PWM/TACH |
2,238 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 45.0dB(A) | 7.2 W | 3800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0922548U2B-3T0FAN 92X25MM 48VDC TACH |
3,052 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 14.4 W | 3800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
CFM-9232B-240-461-20FAN AXIAL 92.2X32MM 24VDC WIRE |
3,543 | 11.28 |
|
Datasheet |
CFM-92B | Box | Active | 24VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 82.2 CFM (2.30m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.2dB(A) | 8.64 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

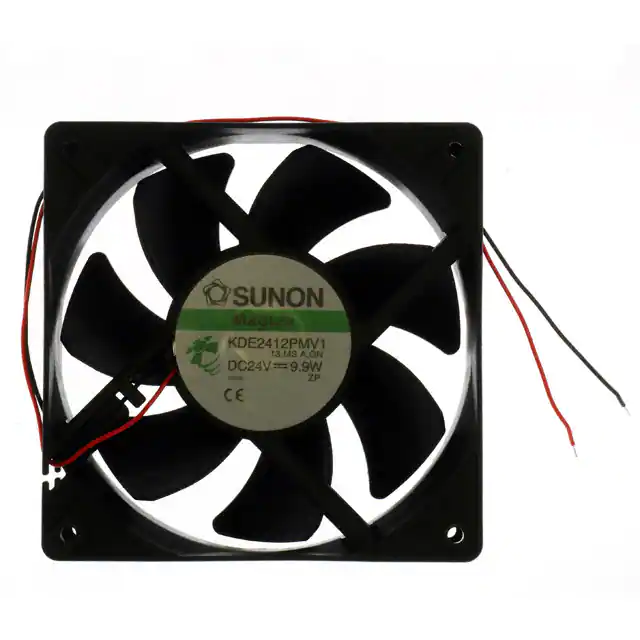

KDE2412PMV1.13.MS.A.GNFAN AXIAL 120X38MM 24VDC WIRE |
3,560 | 0.00 |
|
Datasheet |
MagLev® KDE | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 145.0 CFM (4.06m³/min) | 0.320 in H2O (79.7 Pa) | Vapo-Bearing™ | Tubeaxial | - | 50.0dB(A) | 9.9 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.661 lb (299.82 g) |
|
|
CBM-7530BF-150-493DC BLOWER, 75.7 X 75.7 X 30 MM, |
2,172 | 0.00 |
|
Datasheet |
CBM-75BF | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 17.8 CFM (0.498m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Blower | Auto Restart | 53.5dB(A) | 8.16 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
109P0412R7D01FAN AXIAL 40X15MM 12VDC WIRE |
3,180 | 10.64 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.0 CFM (0.224m³/min) | 0.449 in H2O (111.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 1.56 W | 9700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.071 lb (32.21 g) |
