DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR8032M12B2-FSRFAN AXIAL 80X32MM 12VDC WIRE |
4,126 | 11.91 |
|
Datasheet |
MR8032 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 67.0 CFM (1.88m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.2dB(A) | - | 5500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.32 lb (145.15 g) |
|
|
MR8032M24B1-FSRFAN AXIAL 80X32MM 24VDC WIRE |
3,650 | 11.91 |
|
Datasheet |
MR8032 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 67.0 CFM (1.88m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.2dB(A) | - | 5500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.32 lb (145.15 g) |
|
|
MR8032M24B2-FSRFAN AXIAL 80X32MM 24VDC WIRE |
4,872 | 11.91 |
|
Datasheet |
MR8032 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 67.0 CFM (1.88m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.2dB(A) | - | 5500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.32 lb (145.15 g) |
|
G8020L12B1+6-RSRFAN AXIAL 80X20.8MM 12VDC WIRE |
4,412 | 12.43 |
|
Datasheet |
G8020 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 20.80mm | 31.0 CFM (0.868m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP) | 25.0dB(A) | - | 2500 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.185 lb (83.91 g) |
|

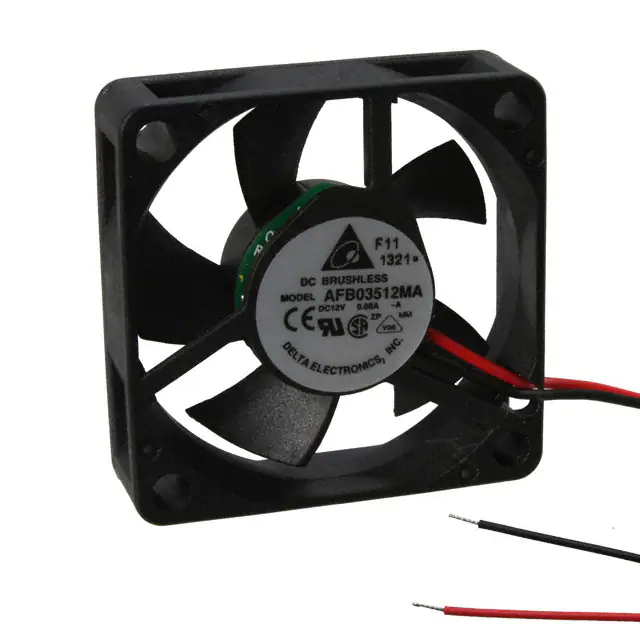

AFB03512MA-AFAN AXIAL 35X10MM 12VDC WIRE |
2,442 | 12.68 |
|
Datasheet |
AFB | Bulk | Obsolete | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 4.5 CFM (0.126m³/min) | 0.075 in H2O (18.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 18.0dB(A) | 600 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.023 lb (10.43 g) |
|
PF92251V1-1000U-F99FAN AXIAL 92X25MM 12VDC WIRE |
1,978 | 8.61 |
|
Datasheet |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 45.5dB(A) | 4.44 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|
|
PF92251V3-1000U-F99FAN AXIAL 92X25MM 12VDC WIRE |
1,561 | 8.61 |
|
Datasheet |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 41.6dB(A) | 2.76 W | 3900 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.234 lb (106.14 g) |
|
|
PF92251V2-1000U-F9912VDC FAN 92X25MM TACH |
4,872 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 43.7dB(A) | 3.36 W | 4200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
GDA1238-12BBFAN AXIAL 120X38MM 12VDC WIRE |
2,677 | 0.00 |
|
Datasheet |
Gryphon | - | Obsolete | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 128.0 CFM (3.58m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 43.5dB(A) | 7.2 W | 3000 RPM | 3 Wire Leads | - | - | - | 0.586 lb (265.81 g) |
|
|
GDA1238-24BBFAN AXIAL 120X38MM 24VDC WIRE |
1,769 | 0.00 |
|
Datasheet |
Gryphon | - | Obsolete | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 128.0 CFM (3.58m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 41.9dB(A) | 14.4 W | 3000 RPM | 3 Wire Leads | - | - | - | 0.586 lb (265.81 g) |
|
PF80251B1-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
3,814 | 14.01 |
|
Datasheet |
PF | Tray | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart | 47.5dB(A) | 4.1 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PF80251B2-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
4,765 | 0.00 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 57.0 CFM (1.60m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 3.4 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PF80251B3-000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
3,384 | 0.00 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 2.7 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PF60251BX-1000U-A99FAN AXIAL 12VDC 60X25MM |
1,624 | 0.00 |
|
- |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 3.24 W | 8300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
PF38281B3-1000U-G9HFAN AXIAL 38X28MM 12VDC WIRE |
4,970 | 0.00 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 14.9 CFM (0.417m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.3dB(A) | 2.16 W | 13000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF38281B3-1000U-H9H12VDC FAN 38X28MM PWM |
2,979 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 14.9 CFM (0.417m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Tubeaxial | PWM Control | 47.3dB(A) | 2.16 W | 13000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF38281B2-1000U-G9H12VDC FAN 38X28MM ALARM |
2,983 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.9 CFM (0.473m³/min) | 1.299 in H2O (323.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 51.0dB(A) | 3.18 W | 15000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF38281B4-1000U-G9H12VDC FAN 38X28MM ALARM |
4,982 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 40.8dB(A) | 1.14 W | 10000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF38281B4-1000U-H9H12VDC FAN 38X28MM PWM |
2,959 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | PWM Control | 40.8dB(A) | 1.14 W | 10000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF38281B2-1000U-H9H12VDC FAN 38X28MM PWM |
2,851 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.9 CFM (0.473m³/min) | 1.299 in H2O (323.6 Pa) | Ball | Tubeaxial | PWM Control | 51.0dB(A) | 3.18 W | 15000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
