DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MR8025H12B1+6-FSRFAN AXIAL 80X25MM 12VDC WIRE |
1,444 | 12.36 |
|
Datasheet |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.5dB(A) | - | 4200 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025H24B1+6-FSRFAN AXIAL 80X25MM 24VDC WIRE |
2,872 | 12.36 |
|
Datasheet |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 41.5dB(A) | - | 4200 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025L12B1+6-FSRFAN AXIAL 80X25MM 12VDC WIRE |
1,028 | 12.36 |
|
Datasheet |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.5dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025L24B1+6-FSRFAN AXIAL 80X25MM 24VDC WIRE |
3,522 | 12.36 |
|
Datasheet |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 44.0 CFM (1.23m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 31.5dB(A) | - | 3000 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025M12B1+6-FSRFAN AXIAL 80X25MM 12VDC WIRE |
1,530 | 12.36 |
|
Datasheet |
MR8025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.1dB(A) | - | 3600 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|
|
MR8025M24B1+6-FSRFAN AXIAL 80X25MM 24VDC WIRE |
4,082 | 12.36 |
|
Datasheet |
MR8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 52.0 CFM (1.46m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.1dB(A) | - | 3600 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.119 lb (53.98 g) |
|

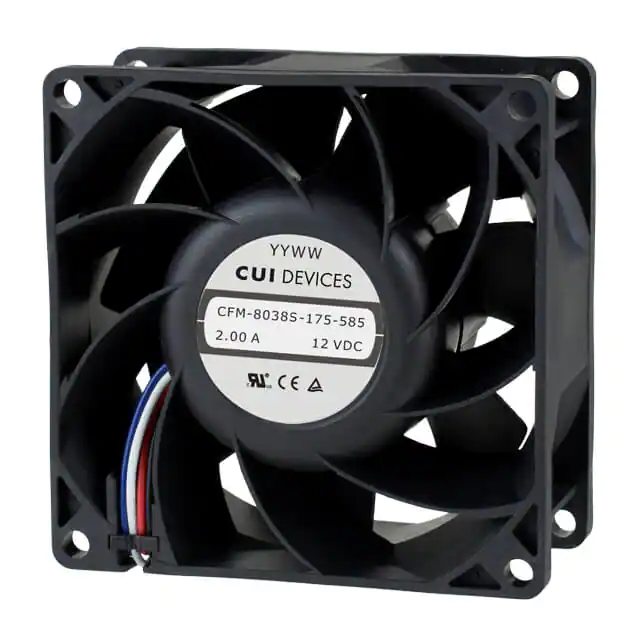

CFM-8038S-150-498-20FAN AXIAL 80X37.6MM 12VDC WIRE |
2,821 | 13.35 |
|
Datasheet |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 49.8dB(A) | 7.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9238B-148-523-20FAN AXIAL 92X37.5MM 12VDC WIRE |
4,858 | 14.10 |
|
Datasheet |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 92.0 CFM (2.58m³/min) | 0.630 in H2O (156.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 52.3dB(A) | 11.4 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
UF3F3-700-TCThermal Products |
2,827 | 0.00 |
|
- |
MagLev® UF, Mighty Mini | Bulk | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 30.0dB(A) | 100 mW | 14500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
|
UB393-700-TCThermal Products |
2,564 | 0.00 |
|
- |
MagLev® UB, Mighty Mini | Bulk | Active | 3VDC | Square - 9mm L x 9mm H | 3.00mm | 0.041 CFM (0.001m³/min) | 0.065 in H2O (16.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 25.0dB(A) | 280 mW | 17400 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|
AFB1224HH-R00FAN AXIAL 120X25.4MM 24VDC WIRE |
3,337 | 0.00 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 41.5dB(A) | 4.32 W | 2800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
AFB1224HHAUDFAN AXIAL 120X25.4MM 24VDC WIRE |
3,994 | 12.51 |
|
Datasheet |
AFB | Box | Obsolete | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 95.1 CFM (2.66m³/min) | 0.304 in H2O (75.7 Pa) | Ball | Tubeaxial | - | 41.5dB(A) | 4.32 W | 2800 RPM | 2 Wire Leads | - | - | - | - |
|
|
AFB1212L-F00FAN AXIAL 120X25.4MM 12VDC WIRE |
4,961 | 13.26 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 62.9 CFM (1.76m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.5dB(A) | 1.68 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
AFB1212M-R00FAN AXIAL 120X25.4MM 12VDC WIRE |
3,823 | 13.26 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 73.8 CFM (2.07m³/min) | 0.203 in H2O (50.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 35.5dB(A) | 2.16 W | 2200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
AFB1212L-R00FAN AXIAL 120X25.4MM 12VDC WIRE |
3,231 | 13.26 |
|
Datasheet |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 62.9 CFM (1.76m³/min) | 0.154 in H2O (38.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.5dB(A) | 1.68 W | 1900 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
|
PF80251V2-1000U-F9912VDC FAN 80X25MM TACH |
3,686 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 56.0 CFM (1.6m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 43.1dB(A) | 2.88 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC0402812H2B-BT4FAN 40X28MM 12VDC PWM/TACH MOLEX |
3,738 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.8 CFM (0.666m³/min) | 1.320 in H2O (328.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 54.0dB(A) | 6.6 W | 13000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
9GA0412H7002FAN AXIAL 40X15MM 12VDC WIRE |
2,633 | 11.60 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 7.1 CFM (0.199m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 720 mW | 7300 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.062 lb (28.12 g) |
|
11925SA-12J-EA-00FAN AXIAL 119X25MM 12VDC WIRE |
4,951 | 0.00 |
|
Datasheet |
11925SA | Box | Obsolete | 12VDC | Square - 119mm L x 119mm H | 25.00mm | 46.9 CFM (1.31m³/min) | 0.060 in H2O (14.9 Pa) | Ball | Tubeaxial | - | 20.5dB(A) | 600 mW | 1300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.309 lb (140.16 g) |
|
|
PF40281B2-1000U-G9H12VDC FAN 40X28MM ALARM |
3,859 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.0 CFM (0.504m³/min) | 1.160 in H2O (288.9 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 48.7dB(A) | 2.64 W | 13000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
