DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE60201B2-000U-F9912VDC FAN 60X20MM TACH |
2,276 | 0.00 |
|
Datasheet |
PE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.5 CFM (0.658m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 35.0dB(A) | 1.78 W | 4400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
CBM-979433B-135-540-20FAN BLOWER 97.68X32.7MM 12VDC |
2,490 | 13.04 |
|
Datasheet |
CBM-97B-2 | Box | Active | 12VDC | Rectangular/Rounded - 97.68mm L x 94.18mm H | 32.70mm | 23.9 CFM (0.669m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 54.1dB(A) | 10.32 W | 3500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0402012L2B-BT4FAN 40X20MM 12VDC PWM/TACH MOLEX |
4,622 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.4 CFM (0.263m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.0dB(A) | 960 mW | 8000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0402012U2B-BT4FAN 40X20MM 12VDC PWM/TACH MOLEX |
2,641 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 16.8 CFM (0.470m³/min) | 1.080 in H2O (269.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 49.0dB(A) | 3 W | 14000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0402812U2B-BT4FAN 40X28MM 12VDC PWM/TACH MOLEX |
2,341 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.8 CFM (0.694m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 58.0dB(A) | 7.68 W | 15000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
G6015H12B1+6-RHRFAN AXIAL 60X15MM 12VDC WIRE |
2,780 | 12.66 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 33.0dB(A) | - | 4600 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
FFB03812VHN-R00FAN AXIAL 38X28MM 12VDC WIRE |
1,878 | 11.83 |
|
Datasheet |
FFB | Tray | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.2 CFM (0.566m³/min) | 1.463 in H2O (364.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 58.5dB(A) | 7.8 W | 16000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
FFB03812VHN-F00FAN AXIAL 38X28MM 12VDC WIRE |
4,053 | 11.83 |
|
Datasheet |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.2 CFM (0.566m³/min) | 1.463 in H2O (364.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 7.8 W | 16000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
|
BFB0712M-F00FAN BLOWER 75.7X30MM 12VDC WIRE |
1,629 | 12.09 |
|
Datasheet |
BFB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 9.0 CFM (0.252m³/min) | 0.268 in H2O (66.7 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.56 W | 2350 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.211 lb (95.71 g) |
|

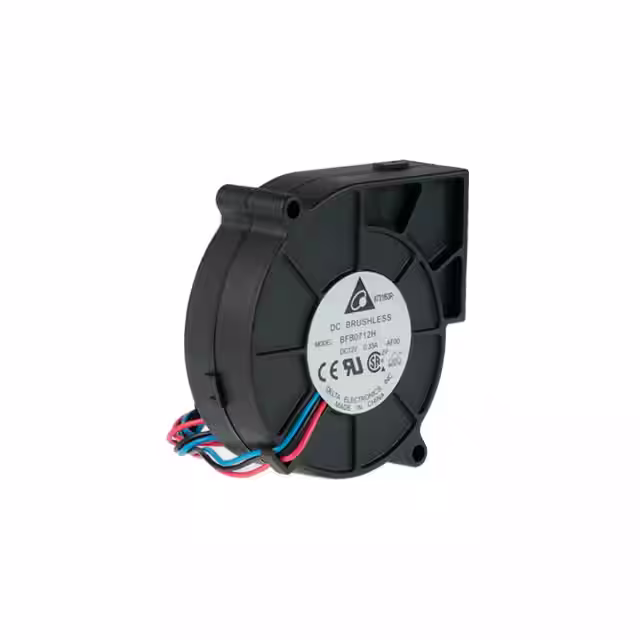

BFB0712H-AF00FAN BLOWER 75.7X25MM 12VDC WIRE |
2,986 | 12.70 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 13.8 CFM (0.386m³/min) | 0.773 in H2O (192.5 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 48.0dB(A) | 3.24 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
|
PF92251V2-1000U-Q9912VDC FAN 92X25MM ALARM/PWM |
1,046 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 43.7dB(A) | 3.36 W | 4200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92251V1-1000U-Q9912VDC FAN 92X25MM ALARM/PWM |
3,273 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 45.5dB(A) | 4.44 W | 4500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92251V3-1000U-Q9912VDC FAN 92X25MM ALARM/PWM |
4,225 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control | 41.6dB(A) | 2.76 W | 3900 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252BX-1000U-H9924VDC FAN 60X25MM PWM |
2,306 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 46.0dB(A) | 3.22 W | 8300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252BX-1000U-G9924VDC FAN 60X25MM ALARM |
1,859 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.660 in H2O (164.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 46.0dB(A) | 3.22 W | 8300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252B1-1000U-G9924VDC FAN 60X25MM ALARM |
1,374 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 35.9 CFM (1.01m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.7dB(A) | 2.57 W | 7500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B3-1000U-G9912VDC FAN 60X25MM ALARM |
4,294 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.5dB(A) | 1.42 W | 6200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252B1-1000U-H9924VDC FAN 60X25MM PWM |
4,350 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 35.9 CFM (1.01m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 41.7dB(A) | 2.57 W | 7500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60251B1-1000U-G9912VDC FAN 60X25MM ALARM |
3,866 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 35.9 CFM (1.01m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.7dB(A) | 2.34 W | 7500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF60252B2-1000U-H9924VDC FAN 60X25MM PWM |
1,280 | 0.00 |
|
Datasheet |
PF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control | 40.7dB(A) | 2.14 W | 7000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
