DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF92251V2-1000U-S9912VDC FAN 92X25MM TACH/PWM |
4,537 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 43.7dB(A) | 3.36 W | 4200 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PF92251V1-1000U-S9912VDC FAN 92X25MM TACH/PWM |
2,334 | 0.00 |
|
Datasheet |
PF | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 45.5dB(A) | 4.44 W | 4500 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PMD1206PTV1-A.U.GNFAN AXIAL 60X25MM 12VDC WIRE |
1,061 | 7.72 |
|
Datasheet |
MagLev® PMD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.0dB(A) | 4.3 W | 6900 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1206PTV2-A.U.GNFAN AXIAL 60X25MM 12VDC WIRE |
1,303 | 7.72 |
|
Datasheet |
MagLev® PMD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 31.5 CFM (0.882m³/min) | 0.420 in H2O (104.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 41.0dB(A) | 3.2 W | 6100 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1206PTV3-A.U.GNFAN AXIAL 60X25MM 12VDC WIRE |
2,332 | 7.72 |
|
Datasheet |
MagLev® PMD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 37.0dB(A) | 2.8 W | 5600 RPM | 2 Wire Leads | - | - | - | - |
|
|
PMD1206PTVX-A.U.GNFAN AXIAL 60X25MM 12VDC WIRE |
2,750 | 7.72 |
|
Datasheet |
MagLev® PMD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.640 in H2O (159.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 45.0dB(A) | 5.4 W | 7600 RPM | 2 Wire Leads | - | - | - | - |
|
|
GB0507PGV1-A.13.B2467.F.GNFAN BLOWER 70X12MM 5VDC WIRE |
1,756 | 0.00 |
|
Datasheet |
MagLev® GB | Bulk | Obsolete | 5VDC | Square/Rounded - 70mm L x 70mm H | 12.00mm | - | - | Vapo-Bearing™ | Blower | - | - | - | - | 3 Wire Leads | - | - | CE, cURus, TUV | - |
|
|
GF80252B7-000U-AC9Thermal Products |
3,530 | 0.00 |
|
Datasheet |
GF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 33.0 CFM (0.924m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB(A) | 1.08 W | 2600 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF80252B6-000U-AC9Thermal Products |
3,385 | 0.00 |
|
Datasheet |
GF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.42 W | 2900 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
GF80252B5-000U-AC9Thermal Products |
1,332 | 0.00 |
|
Datasheet |
GF | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 41.0 CFM (1.15m³/min) | 0.180 in H2O (44.8 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB(A) | 1.76 W | 3200 RPM | 2 Wire Leads | IP56 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
109R0812S4D01FAN AXIAL 80X25MM 12VDC WIRE |
3,506 | 12.69 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
109R0812S4D011FAN AXIAL 80X25MM 12VDC WIRE |
4,536 | 12.69 |
|
Datasheet |
San Ace 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
PE60201B1-000U-G99FAN AXIAL 60X20MM 12VDC WIRE |
3,164 | 10.53 |
|
Datasheet |
MagLev® PE | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 27.5 CFM (0.770m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 39.0dB(A) | 2.3 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | - |
|
|
PE60201BX-000U-G9912VDC FAN 60X20MM ALARM |
1,209 | 0.00 |
|
Datasheet |
PE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 30.5 CFM (0.854m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 41.0dB(A) | 2.76 W | 5500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PE60201B3-000U-G9912VDC FAN 60X20MM ALARM |
3,554 | 0.00 |
|
Datasheet |
PE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.5 CFM (0.546m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 1.24 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PE60201B4-000U-G9912VDC FAN 60X20MM ALARM |
1,146 | 0.00 |
|
Datasheet |
PE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 16.0 CFM (0.448m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 24.0dB(A) | 0.97 W | 3000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PE60201B2-000U-G9912VDC FAN 60X20MM ALARM |
2,068 | 0.00 |
|
Datasheet |
PE | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 23.5 CFM (0.658m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 35.0dB(A) | 1.78 W | 4400 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|

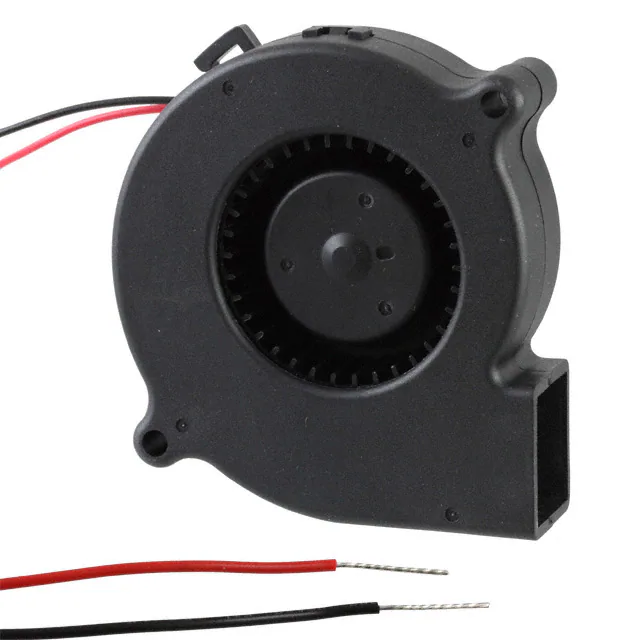

BFB0712HDFAN BLOWER 70.2X20MM 12VDC WIRE |
1,902 | 20.03 |
|
Datasheet |
BFB | Bulk | Obsolete | 12VDC | Rectangular/Rounded - 70.2mm L x 76.5mm H | 20.00mm | 8.2 CFM (0.230m³/min) | 1.034 in H2O (257.6 Pa) | Ball | Blower | Locked Rotor Protection | 42.0dB(A) | 3.72 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.128 lb (58.06 g) |
|
|
G4028H24B-RSR-CCFAN AXIAL 40X28MM 24VDC WIRE |
2,308 | 13.57 |
|
Datasheet |
G4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 16.0 CFM (0.448m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 41.0dB(A) | - | 10000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
G6015H12B6-RHRFAN AXIAL 60X15MM 12VDC WIRE |
4,834 | 10.86 |
|
Datasheet |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 18.0 CFM (0.504m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | PWM Control | 33.0dB(A) | - | 4600 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
