DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD8025-24LBIP68FAN AXIAL 80X25MM 24VDC WIRE |
4,789 | 11.11 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 22.0 CFM (0.616m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 21.0dB | 2 W | 2000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
|
OD8025-24MBIP68FAN AXIAL 80X25MM 24VDC WIRE |
2,719 | 11.11 |
|
Datasheet |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 32.0 CFM (0.896m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB | 2.4 W | 2700 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
OD9225-24LBXEFAN AXIAL 92X25.5MM 24VDC WIRE |
2,230 | 10.48 |
|
Datasheet |
OD9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 75.7 CFM (2.12m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 4.4 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9225-48MBXEFAN AXIAL 92X25.5MM 48VDC WIRE |
1,993 | 12.22 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.50mm | 84.8 CFM (2.37m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 5.3 W | 4490 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9225-48HHBXEFAN AXIAL 92X25.5MM 48VDC WIRE |
2,277 | 13.07 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.50mm | 102.8 CFM (2.88m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 55.2dB(A) | 10.2 W | 5475 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9225-48LBXEFAN AXIAL 92X25.5MM 48VDC WIRE |
4,405 | 12.22 |
|
Datasheet |
OD9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.50mm | 75.7 CFM (2.12m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 4 W | 4000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD9225-24MBXEFAN AXIAL 92X25.5MM 24VDC WIRE |
2,194 | 10.48 |
|
Datasheet |
OD9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.50mm | 84.8 CFM (2.37m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 5.5 W | 4490 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
PF38281B4-1000U-A9HFAN AXIAL 38X28MM 12VDC WIRE |
4,757 | 6.99 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 11.3 CFM (0.316m³/min) | 0.620 in H2O (154.4 Pa) | Ball | Tubeaxial | Auto Restart | 40.8dB(A) | 1.14 W | 10000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF38281B3-1000U-A9HFAN AXIAL 38X28MM 12VDC WIRE |
4,201 | 6.99 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 14.9 CFM (0.417m³/min) | 1.030 in H2O (256.6 Pa) | Ball | Tubeaxial | Auto Restart | 47.3dB(A) | 2.16 W | 13000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40281B4-1000U-A9HFAN AXIAL 40X28MM 12VDC WIRE |
1,737 | 6.99 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 12.8 CFM (0.359m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart | 39.9dB(A) | 1.16 W | 9200 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
DC0501012J2B-3T1FAN 50X10MM 12VDC TACH COMPUTER |
3,083 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 10.00mm | 6.7 CFM (0.188m³/min) | 0.050 in H2O (12.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 18.0dB(A) | 600 mW | 3500 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401005V2B-3T3FAN 40X10MM 5VDC TACH MOLEX 22-0 |
1,204 | 0.00 |
|
Datasheet |
- | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2 W | 10000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0501512J2B-3T1FAN 50X15MM 12VDC TACH COMPUTER |
3,772 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 9.9 CFM (0.277m³/min) | 0.080 in H2O (19.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 720 mW | 3600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0501512L2B-3T1FAN 50X15MM 12VDC TACH COMPUTER |
2,249 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.2 CFM (0.342m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 27.0dB(A) | 840 mW | 4200 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0401012V2B-3T1FAN 40X10MM 12VDC TACH COMPUTER |
2,927 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 12.2 CFM (0.342m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 2.04 W | 10000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

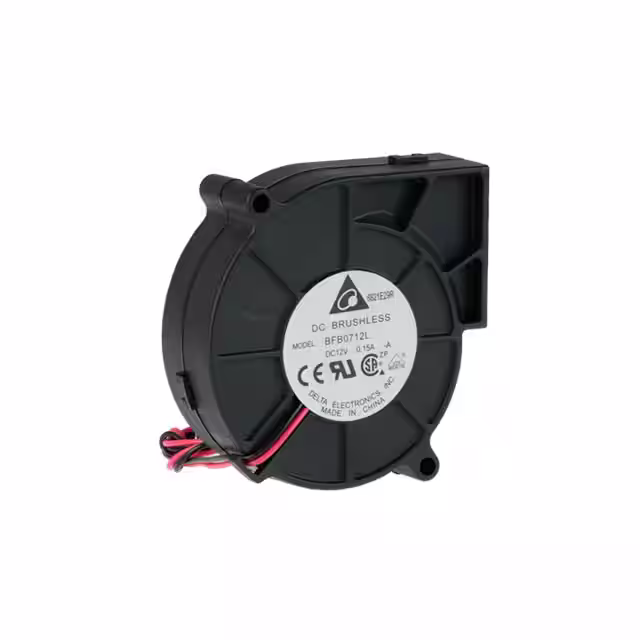

BFB0712L-AFAN BLOWER 75.7X25MM 12VDC WIRE |
2,889 | 12.27 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 9.3 CFM (0.260m³/min) | 0.286 in H2O (71.2 Pa) | Ball | Blower | Locked Rotor Protection | 39.0dB(A) | 1.2 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|

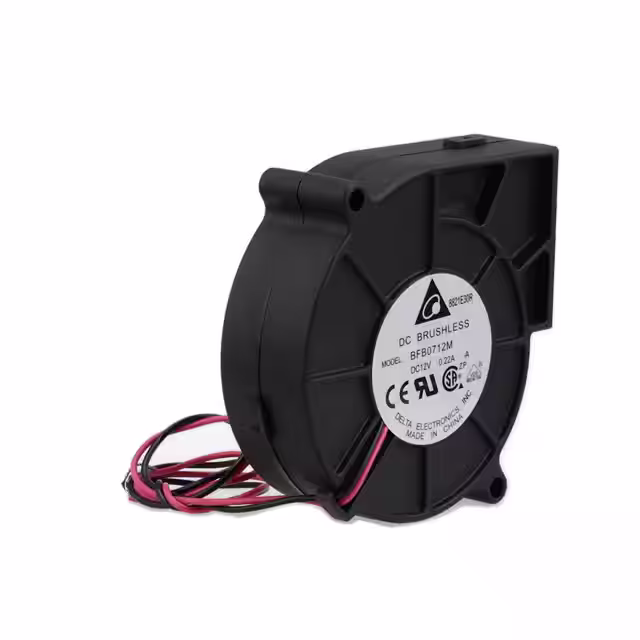

BFB0712M-AFAN BLOWER 75.7X25MM 12VDC WIRE |
4,665 | 12.27 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 11.3 CFM (0.316m³/min) | 0.478 in H2O (119.1 Pa) | Ball | Blower | Locked Rotor Protection | 43.0dB(A) | 1.92 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|

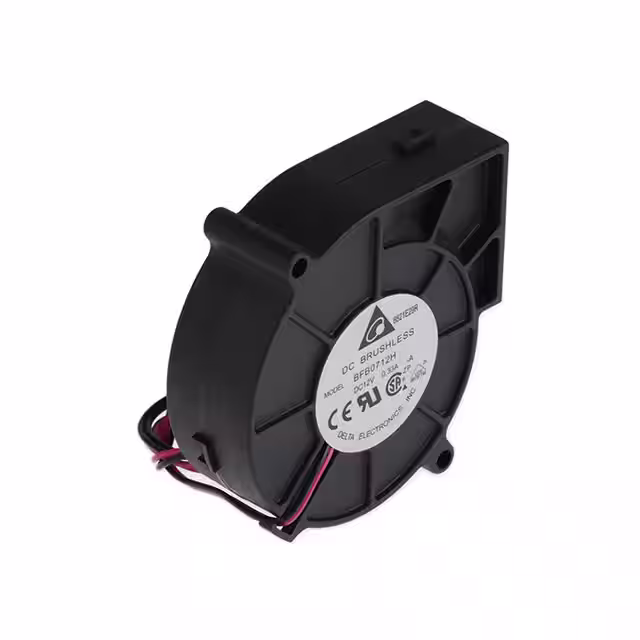

BFB0712H-AFAN BLOWER 75.7X25MM 12VDC WIRE |
1,658 | 12.27 |
|
Datasheet |
BFB | Box | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 25.00mm | 13.8 CFM (0.386m³/min) | 0.773 in H2O (192.5 Pa) | Ball | Blower | Locked Rotor Protection | 48.0dB(A) | 3.24 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.199 lb (90.26 g) |
|
|
09225VA-12P-AA-00FAN AXIAL 92X25MM 12VDC WIRE |
1,298 | 0.00 |
|
Datasheet |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 85.8 CFM (2.40m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB | 6.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|
|
09225VA-12M-EA-00FAN AXIAL 92X25MM 12VDC WIRE |
4,514 | 0.00 |
|
Datasheet |
09225VA | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 68.1 CFM (1.91m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 42.0dB | 3.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
