DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0402812W2B-BT4FAN 40X28MM 12VDC PWM/TACH MOLEX |
1,678 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 16.8 W | 23000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0402812V2B-BT4FAN 40X28MM 12VDC PWM/TACH MOLEX |
1,846 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 29.5 CFM (0.826m³/min) | 2.890 in H2O (719.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 62.0dB(A) | 13.2 W | 21000 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

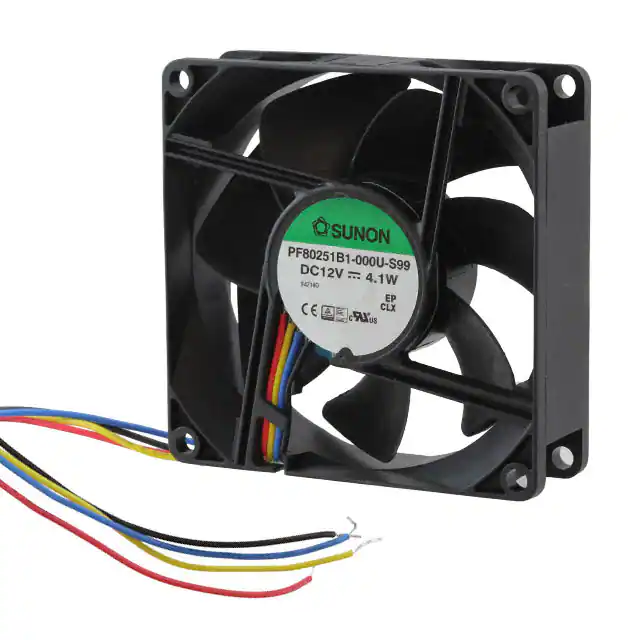

PF80251B1-000U-S99FAN AXIAL 80X25MM 12VDC WIRE |
3,199 | 15.08 |
|
Datasheet |
PF | Box | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 47.5dB(A) | 4.1 W | 4800 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
DC0402824H2B-3T3FAN 40X28MM 24VDC TACH MOLEX 22- |
1,456 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 51.0dB(A) | 8.4 W | 11000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0382812L2B-3T3FAN 38X28MM 12VDC TACH MOLEX 22- |
4,685 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 9.4 CFM (0.263m³/min) | 0.390 in H2O (97.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 38.0dB(A) | 1.32 W | 8000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803212H2B-2T2FAN 80X32MM 12VDC MOLEX 22-01-10 |
2,059 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 69.0 CFM (1.93m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.0dB(A) | 6 W | 5500 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803212J2B-2T2FAN 80X32MM 12VDC MOLEX 22-01-10 |
3,237 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 38.1 CFM (1.07m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 31.0dB(A) | 1.8 W | 3000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0402824M2B-BT4FAN 40X28MM 24VDC PWM/TACH MOLEX |
1,011 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 15.9 CFM (0.445m³/min) | 0.690 in H2O (171.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 44.0dB(A) | 6.24 W | 9500 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803212M2B-2T2FAN 80X32MM 12VDC MOLEX 22-01-10 |
2,343 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 60.4 CFM (1.69m³/min) | 0.450 in H2O (112.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.0dB(A) | 4.2 W | 4800 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A238S-132-480-20FAN AXIAL 120X37.5MM 12VDC WIRE |
3,684 | 13.32 |
|
Datasheet |
CFM-120S | Box | Active | 12VDC | Square - 120mm L x 120mm H | 37.50mm | 123.9 CFM (3.47m³/min) | 0.340 in H2O (84.7 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 10.32 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-A238S-232-480-20FAN AXIAL 120X37.5MM 24VDC WIRE |
2,392 | 13.32 |
|
Datasheet |
CFM-120S | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 123.9 CFM (3.47m³/min) | 0.340 in H2O (84.7 Pa) | Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 12.72 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
FFB0924HHEFAN AXIAL 92X38MM 24VDC WIRE |
3,909 | 13.07 |
|
Datasheet |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 71.7 CFM (2.01m³/min) | 0.298 in H2O (74.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 4.32 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|

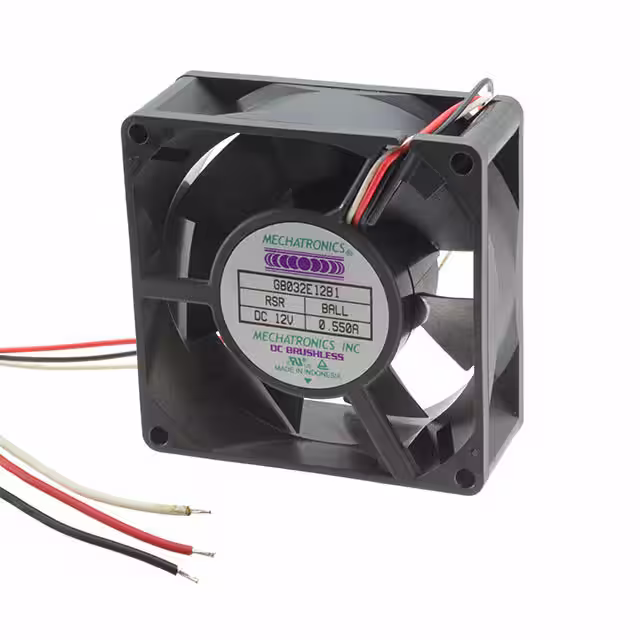

G8032E12B1-RSRFAN AXIAL 80X32MM 12VDC WIRE |
3,370 | 12.93 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 52.0 CFM (1.46m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 46.0dB(A) | - | 4500 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
G8032H12B1-RSRFAN AXIAL 80X32MM 12VDC WIRE |
4,123 | 12.93 |
|
Datasheet |
G8032 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 48.0 CFM (1.34m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 42.0dB(A) | - | 4000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.286 lb (129.73 g) |
|
|
AFB0624SH-TYTHFAN AXIAL 60X25.4MM 24VDC WIRE |
1,504 | 12.32 |
|
Datasheet |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 34.2 CFM (0.958m³/min) | 0.422 in H2O (105.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 44.5dB(A) | 4.08 W | 6000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
DC0702512M2B-3T1FAN 70X25MM 12VDC TACH COMPUTER |
2,154 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 35.6 CFM (0.997m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 32.0dB(A) | 1.08 W | 3600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PE80252V1-000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
1,257 | 0.00 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 46.5dB(A) | 4.8 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PE80252V3-000U-A99FAN AXIAL 80X25MM 24VDC WIRE |
2,826 | 0.00 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 43.5dB(A) | 3.29 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|
|
PE92252V2-000U-A99FAN AXIAL 92X25MM 24VDC WIRE |
1,357 | 0.00 |
|
Datasheet |
MagLev® PE | Box | Obsolete | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 70.0 CFM (1.96m³/min) | 0.300 in H2O (74.7 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.0dB(A) | 4.32 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.227 lb (102.97 g) |
|
|
GM1204PQV1-8A.GNFAN AXIAL 40X28MM 12VDC WIRE |
1,309 | 0.00 |
|
Datasheet |
MagLev® GM | Bulk | Obsolete | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.3 CFM (0.428m³/min) | 0.520 in H2O (129.5 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.0dB(A) | 2.8 W | 9200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
