DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1202524M2B-BT4FAN 120X25MM 24VDC PWM/TACH MOLE |
4,412 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 42.0dB(A) | 11.52 W | 2800 RPM | 4 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

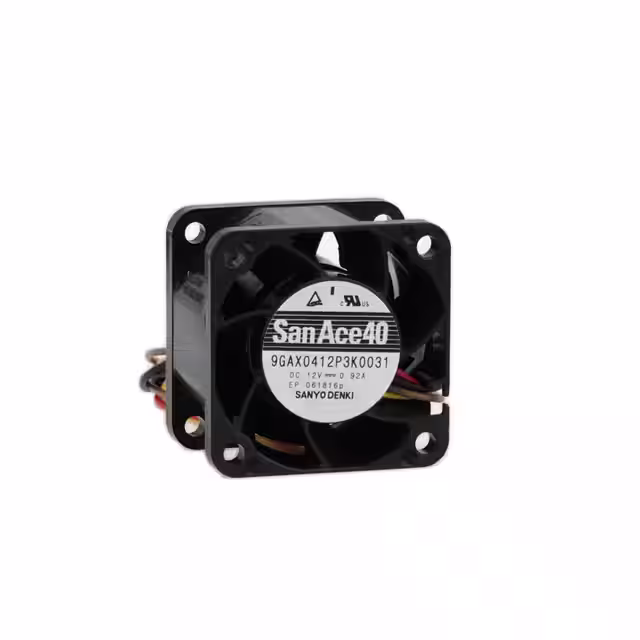

9GAX0412P3K0031FAN AXIAL 40X28MM 12VDC WIRE |
3,098 | 13.49 |
|
Datasheet |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 28.6 CFM (0.801m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 61.0dB(A) | 11.04 W | 22000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
CFM-A238-43-22FAN AXIAL 120X38MM 48VDC WIRE |
1,253 | 15.31 |
|
Datasheet |
CFM-120 | Tray | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 200.9 CFM (5.63m³/min) | 0.780 in H2O (194.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.5dB(A) | 23.04 W | 4600 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.624 lb (283.04 g) |
|
B1232L12B-BSRFAN BLOWER 120X32MM 12VDC WIRE |
3,973 | 15.19 |
|
Datasheet |
B1232 | Bulk | Active | 12VDC | Square/Rounded - 120mm L x 120mm H | 32.00mm | 21.0 CFM (0.588m³/min) | 0.330 in H2O (82.2 Pa) | Ball | Blower | Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2100 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.705 lb (319.78 g) |
|
|
MS9225H48B-FSR-2EMFAN AXIAL 92X25MM 48VDC WIRE |
3,107 | 13.56 |
|
Datasheet |
MS9225-S | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 73.6 CFM (2.06m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 49.0dB(A) | - | 4500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | - | - | 0.225 lb (102.06 g) |
|
|
MC9238X24B-FSRFAN AXIAL 92X38MM 24VDC WIRE |
2,615 | 15.21 |
|
Datasheet |
MC9238 | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | - | - | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 47.5dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.4 lb (181.44 g) |
|
|
MC9238H12B-FSRFAN AXIAL 92X38MM 12VDC WIRE |
2,756 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MR9238E12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE |
4,934 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238E12B2-FSRFAN AXIAL 92X38MM 12VDC WIRE |
3,405 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 63.3dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238E24B1-FSRFAN AXIAL 92X38MM 24VDC WIRE |
1,222 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238E24B2-FSRFAN AXIAL 92X38MM 24VDC WIRE |
2,894 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 63.3dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238E48B1-FSRFAN AXIAL 92X38MM 48VDC WIRE |
1,808 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.3dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238E48B2-FSRFAN AXIAL 92X38MM 48VDC WIRE |
3,355 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 173.0 CFM (4.84m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 63.3dB(A) | - | 8000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238H12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE |
2,355 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.8dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238H12B2-FSRFAN AXIAL 92X38MM 12VDC WIRE |
4,709 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 58.8dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238H24B1-FSRFAN AXIAL 92X38MM 24VDC WIRE |
3,479 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.8dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238H24B2-FSRFAN AXIAL 92X38MM 24VDC WIRE |
2,268 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 58.8dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238H48B1-FSRFAN AXIAL 92X38MM 48VDC WIRE |
3,906 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 58.8dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238H48B2-FSRFAN AXIAL 92X38MM 48VDC WIRE |
3,727 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 152.0 CFM (4.26m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 58.8dB(A) | - | 7000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
|
|
MR9238L12B1-FSRFAN AXIAL 92X38MM 12VDC WIRE |
1,915 | 14.51 |
|
Datasheet |
MR9238 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 50.5dB(A) | - | 5000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.437 lb (198.00 g) |
