DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BFB1012H-R00FAN BLOWER 97.2X33MM 12VDC WIRE |
2,107 | 0.00 |
|
Datasheet |
BFB | Tray | Obsolete | 12VDC | Rectangular/Rounded - 97.2mm L x 94.4mm H | 33.00mm | 25.4 CFM (0.711m³/min) | 1.000 in H2O (249.1 Pa) | Ball | Blower | Locked Rotor Sensor | 52.0dB(A) | 9.6 W | 3600 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.353 lb (160.12 g) |
|
|
CFM-9225BG68-240-438DC AXIAL FAN, 92 MM SQUARE, 25 M |
1,905 | 0.00 |
|
Datasheet |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 70.2 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart | 43.8dB(A) | 4.8 W | 4000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
FFB0812VHFAN AXIAL 80X25.4MM 12VDC WIRE |
2,205 | 13.73 |
|
Datasheet |
FFB | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 54.6 CFM (1.53m³/min) | 0.291 in H2O (72.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 45.4dB(A) | 4.08 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.254 lb (115.21 g) |
|
|
AFB0824SHEFAN AXIAL 80X38MM 24VDC WIRE |
4,311 | 0.00 |
|
Datasheet |
AFB | Box | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 72.8 CFM (2.04m³/min) | 0.547 in H2O (136.3 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 46.0dB(A) | 8.4 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.344 lb (156.04 g) |
|
|
DC0922548U2B-3T1FAN 92X25MM 48VDC TACH COMPUTER |
1,938 | 0.00 |
|
Datasheet |
- | Bulk | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 69.2 CFM (1.94m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 45.0dB(A) | 14.4 W | 3800 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
PMD2408PKB1-A.(2).GNFAN AXIAL 80X20MM 24VDC WIRE |
3,758 | 0.00 |
|
Datasheet |
PMD | Box | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 53.0 CFM (1.48m³/min) | 0.360 in H2O (89.7 Pa) | Ball | Tubeaxial | - | 49.0dB(A) | 5 W | 4600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.187 lb (84.82 g) |
.GN.jpg)
|

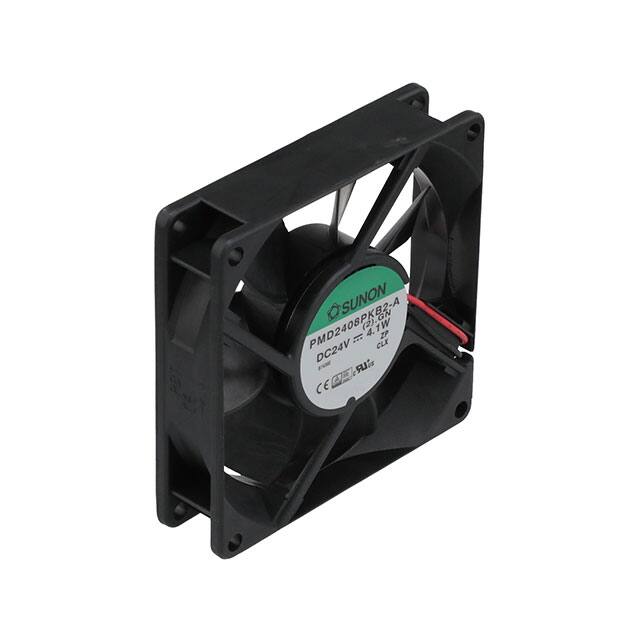

PMD2408PKB2-A.(2).GNFAN AXIAL 80X20MM 24VDC WIRE |
3,978 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 49.0 CFM (1.37m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart | 46.0dB(A) | 4.1 W | 4200 RPM | 2 Wire Leads | - | - | - | 0.188 lb (85.28 g) |
|
|
PMD2408PKB3-A.(2).GNFAN AXIAL 80X20MM 24VDC WIRE |
3,614 | 0.00 |
|
Datasheet |
PMD | Bulk | Obsolete | 24VDC | Square - 80mm L x 80mm H | 20.00mm | 45.0 CFM (1.26m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.0dB(A) | 3.4 W | 3900 RPM | 2 Wire Leads | - | - | - | - |
|
G1225E12B-FSR-CCFAN AXIAL 120X25MM 12VDC WIRE |
1,139 | 13.74 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 99.0 CFM (2.77m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 42.0dB(A) | - | 2700 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
G1225S12B-FSR-CCFAN AXIAL 120X25MM 12VDC WIRE |
1,854 | 13.74 |
|
Datasheet |
G1225 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 54.0 CFM (1.51m³/min) | 0.070 in H2O (17.4 Pa) | Ball | Tubeaxial | Conformal Coating, Thermal Overload Protector (TOP) | 26.0dB(A) | - | 1500 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.434 lb (196.86 g) |
|
|
DC0251012H2B-3T1FAN 25X10MM 12VDC TACH COMPUTER |
4,853 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 13000 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PF40281BX-1000U-A9HFAN AXIAL 40X28MM 12VDC WIRE |
1,702 | 11.23 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.3 CFM (0.876m³/min) | 3.120 in H2O (777.2 Pa) | Ball | Tubeaxial | Auto Restart | 62.0dB(A) | 11.4 W | 22000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF38281B1-1000U-A9HFAN AXIAL 38X28MM 12VDC WIRE |
4,954 | 11.23 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.540 in H2O (383.6 Pa) | Ball | Tubeaxial | Auto Restart | 51.8dB(A) | 3.78 W | 16000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF38281BX-1000U-A9HFAN AXIAL 38X28MM 12VDC WIRE |
2,664 | 8.89 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 23.0 CFM (0.644m³/min) | 2.260 in H2O (562.9 Pa) | Ball | Tubeaxial | Auto Restart | 57.0dB(A) | 6.84 W | 20000 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
|
PF40281B1-1000U-A9HFAN AXIAL 40X28MM 12VDC WIRE |
1,459 | 8.89 |
|
Datasheet |
PF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 24.9 CFM (0.697m³/min) | 2.050 in H2O (510.6 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 6.12 W | 17600 RPM | 2 Wire Leads | - | - | CCC, CE, cURus, TUV | - |
|
CBM-A232B-130-521FAN BLOWER 119.3X32MM 12VDC WIRE |
2,301 | 0.00 |
|
Datasheet |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 27.7 CFM (0.776m³/min) | 1.350 in H2O (336.3 Pa) | Ball | Blower | Auto Restart | 52.1dB(A) | 12.96 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
MEC0382V3-000U-F9924VDC FAN 120X38MM TACH |
2,130 | 0.00 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 37.0dB(A) | 3.1 W | 2100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0382V1-000U-F9924VDC FAN 120X38MM TACH |
2,748 | 0.00 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.7 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 48.0dB(A) | 9.2 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0382V2-000U-F9924VDC FAN 120X38MM TACH |
2,349 | 0.00 |
|
Datasheet |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.0dB(A) | 5.4 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
DC0602524L2B-3T1FAN 60X25MM 24VDC TACH COMPUTER |
2,501 | 0.00 |
|
Datasheet |
- | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 21.5 CFM (0.602m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 2.88 W | 3600 RPM | 3 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
