DC Brushless Fans (BLDC)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Voltage - Rated | Size / Dimension | Width | Air Flow | Static Pressure | Bearing Type | Fan Type | Features | Noise | Power (Watts) | RPM | Termination | Ingress Protection | Operating Temperature | Approval Agency | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

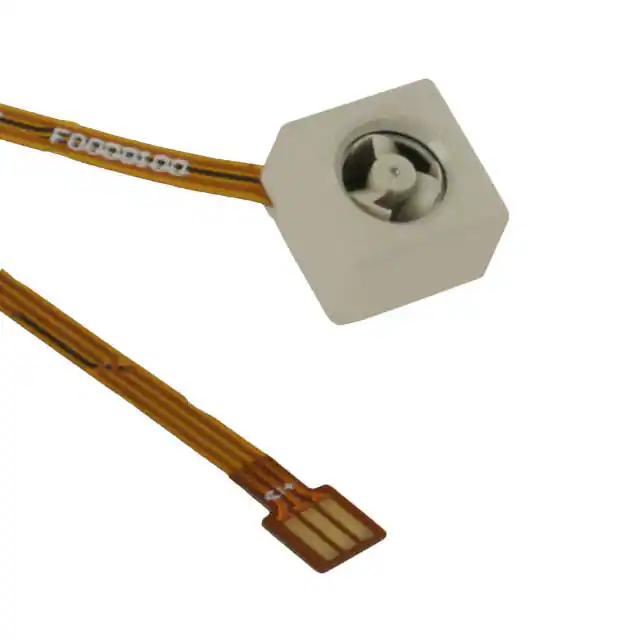

UF385-100FAN AXIAL 8X5MM VAPO 3VDC WIRE |
2,899 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 8mm L x 8mm H | 5.00mm | 0.010 CFM (0.0003m³/min) | 0.012 in H2O (3.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 17.1dB(A) | 200 mW | 17000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.001 lb (0.45 g) |
|

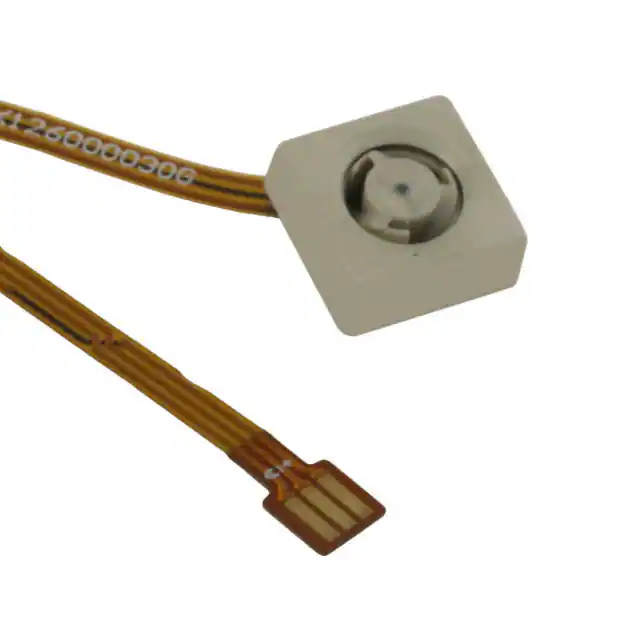

UF383-100FAN AXIAL 8X3MM VAPO 3VDC WIRE |
3,861 | 0.00 |
|
Datasheet |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 8mm L x 8mm H | 3.00mm | 0.006 CFM (0.0002m³/min) | 0.006 in H2O (1.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 2.1dB(A) | 300 mW | 13500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.000 lb (0.30 g) |
|
|
CFM-9238BF68-195-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,609 | 0.00 |
|
Datasheet |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.8dB(A) | 23.4 W | 9500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9238BF68-295-628-20DC AXIAL FAN, 92 MM SQUARE, 38 M |
3,460 | 0.00 |
|
Datasheet |
CFM-92BF68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 129.6 CFM (3.63m³/min) | 2.300 in H2O (572.9 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 62.8dB(A) | 22.8 W | 9500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0405612U2B-2T2FAN 40X56MM 12VDC MOLEX 22-01-10 |
3,473 | 0.00 |
|
Datasheet |
- | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | 37.2 CFM (1.04m³/min) | 3.870 in H2O (963.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 69.0dB(A) | 20.64 W | 21000 RPM | 2 Position Rectangular Connector | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9GA0712P1G0011FAN AXIAL 70X38MM 12VDC WIRE |
1,986 | 27.40 |
|
Datasheet |
San Ace 70 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 38.00mm | 93.6 CFM (2.62m³/min) | 3.453 in H2O (860.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 65.0dB(A) | 31.2 W | 16500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.375 lb (170.1 g) |
|
|
ODB600AN-12HBThermal Products |
2,513 | 0.00 |
|
- |
ODB600AN | Bulk | Active | 12VDC | Rectangular/Rounded - 126mm L x 125mm H | 32.00mm | 30.0 CFM (0.840m³/min) | 0.530 in H2O (132.0 Pa) | Ball | Blower | Auto Restart | 48.6dB(A) | 7.2 W | 2750 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
CFM-9238BF68-180-585-22DC AXIAL FAN, 92 MM SQUARE, 38 M |
1,608 | 0.00 |
|
Datasheet |
CFM-92BF68 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 108.9 CFM (3.05m³/min) | 1.640 in H2O (408.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 58.5dB(A) | 14.4 W | 8000 RPM | 4 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
PSD1206PWB1-A(2).Z.GNFAN AXIAL DUAL 60X60MM 12VDC |
3,502 | 29.64 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 60.00mm | 67.0 CFM (1.88m³/min) | 2.523 in H2O (628.5 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed | 66.3dB(A) | 20.3 W | 11500 Front, 11000 Rear | 2 Wire Leads | - | - | - | - |
|
|
PMD1204PPB3-A.(2).GNFAN AXIAL 40X56MM 12VDC WIRE |
3,686 | 32.18 |
|
Datasheet |
PMD | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 56.00mm | - | - | Ball | Tubeaxial | Auto Restart | - | - | - | 2 Wire Leads | - | - | - | - |
|
OD1238-48HHBIP68FAN AXIAL 119.5X38MM 48VDC WIRE |
2,922 | 28.53 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 119.5mm L x 119.5mm H | 38.00mm | 136.0 CFM (3.81m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB | 7.7 W | 3200 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.572 lb (259.45 g) |
|
|
OD1238-48LBIP68FAN AXIAL 119.5X38MM 48VDC WIRE |
2,555 | 28.53 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 119.5mm L x 119.5mm H | 38.00mm | 103.0 CFM (2.88m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 38.0dB | 3.4 W | 2300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.572 lb (259.45 g) |
|
|
OD1238-48MBIP68FAN AXIAL 119.5X38MM 48VDC WIRE |
3,007 | 28.53 |
|
Datasheet |
OD1238 | Box | Active | 48VDC | Square - 119.5mm L x 119.5mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Tubeaxial | Auto Restart | 41.0dB | 3.8 W | 2600 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.572 lb (259.45 g) |
|

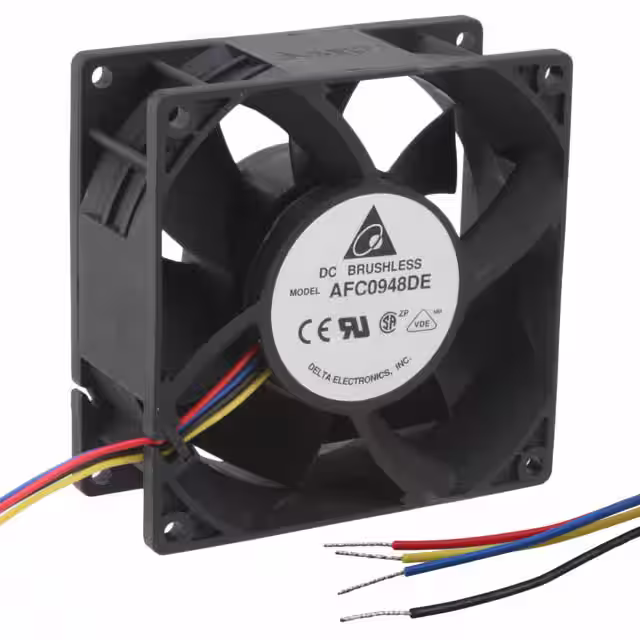

AFC0948DE-TP20FAN AXIAL 92X38MM 48VDC WIRE |
2,371 | 29.70 |
|
Datasheet |
AFC | Box | Not For New Designs | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 159.4 CFM (4.46m³/min) | 1.528 in H2O (380.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 28.8 W | 7500 RPM | 4 Wire Leads | - | -40 ~ 149°F (-40 ~ 65°C) | CE, TUV, UL | 0.573 lb (260.00 g) |
|
|
9GA0948H102FAN AXIAL 92X38MM 48VDC WIRE |
1,835 | 30.88 |
|
Datasheet |
San Ace 92 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 38.00mm | 141.0 CFM (3.95m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 63.0dB(A) | 26.4 W | 9700 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.529 lb (239.95 g) |
|
|
9GA0912P1F01192X38MM 12VDC TACH/PWM |
1,062 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9GA0912P1F0192X38MM 12VDC TACH/PWM |
2,807 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PSD1206PWB1-A(2).Z.F.PWM.GNFAN AXIAL DUAL 60X60MM 12VDC |
1,850 | 29.90 |
|
Datasheet |
MagLev® PSD | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 60.00mm | 67.0 CFM (1.88m³/min) | 2.523 in H2O (628.5 Pa) | Ball | Tubeaxial (Dual) | Auto Restart, Dual Speed, PWM Control | 66.3dB(A) | 20.3 W | 11500 Front, 11000 Rear | 3 Wire Leads | - | - | - | - |
|
FFB1248EHE-F00FAN AXIAL 120X38MM 48VDC WIRE |
3,830 | 37.59 |
|
Datasheet |
FFB | Tray | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 190.0 CFM (5.32m³/min) | 0.700 in H2O (174.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 59.0dB(A) | 24 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 122°F (-10 ~ 50°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
|
FFB1248VHE-F00FAN AXIAL 120X38MM 48VDC WIRE |
4,601 | 29.97 |
|
Datasheet |
FFB | Box | Obsolete | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 151.8 CFM (4.25m³/min) | 0.445 in H2O (110.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 53.0dB(A) | 13.44 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
