Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLP2520H2R2MT0S1FIXED IND 2.2UH 1.3A 117MOHM SMD |
6,165 | 0.14 |
|
Datasheet |
MLP | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.3 A | - | Shielded | 117mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
78F1R0K-RCFIXED IND 1UH 815MA 150 MOHM TH |
6,164 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 815 mA | - | Unshielded | 150mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

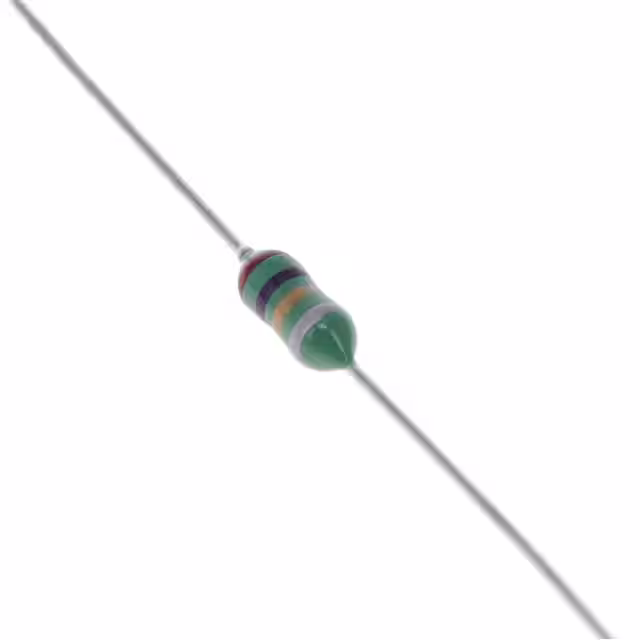

78F2R7K-RCFIXED IND 2.7UH 595MA 280MOHM TH |
6,028 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 595 mA | - | Unshielded | 280mOhm Max | 50 @ 7.9MHz | 95MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
NRH3012T4R7MNVFIXED IND 4.7UH 1.06A 156MOHM SM |
5,442 | 0.31 |
|
Datasheet |
NR, H Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.06 A | 1A | Shielded | 156mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
LQM21NN4R7K10LFIXED IND 4.7UH 30MA 1 OHM SMD |
5,324 | 0.23 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 4.7 µH | ±10% | 30 mA | - | Shielded | 1Ohm Max | 45 @ 10MHz | 47MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
78F101J-RCFIXED IND 100UH 165MA 4.1 OHM TH |
5,295 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 165 mA | - | Unshielded | 4.1Ohm Max | 60 @ 2.5MHz | 5.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

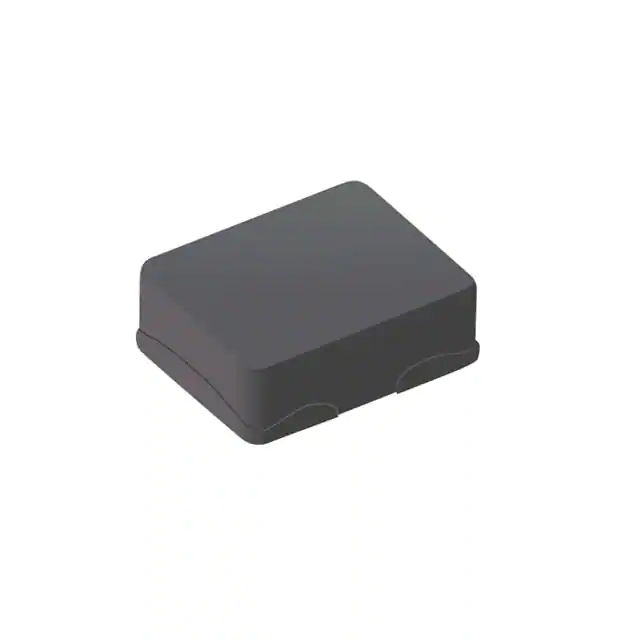

SRP2512TMA-2R2MFIXED IND 2.2UH 3.1A 0.0792OHM |
5,275 | 0.13 |
|
Datasheet |
SRP2512TMA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 3.1 A | 3.4A | Shielded | 79.2mOhm Max | 15 @ 1MHz | 45MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Flat Wire | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
78F820J-RCFIXED IND 82UH 175MA 3.6 OHM TH |
5,150 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 175 mA | - | Unshielded | 3.6Ohm Max | 60 @ 2.5MHz | 6MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
77F220K-TR-RCFIXED IND 22UH 410MA 900 MOHM TH |
5,002 | 0.31 |
|
Datasheet |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 410 mA | - | Unshielded | 900mOhm Max | 60 @ 2.52MHz | 9.9MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|
|
SRP2010TMA-1R0MIND METAL POWDER 1UH 3.6A |
4,965 | 0.13 |
|
Datasheet |
SRP2010TMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 3.6 A | 4.4A | Shielded | 59mOhm Max | 15 @ 1MHz | 60MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
77F8R2K-TR-RCFIXED IND 8.2UH 530MA 520MOHM TH |
4,875 | 0.11 |
|
Datasheet |
77F | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 530 mA | - | Unshielded | 520mOhm Max | 80 @ 7.96MHz | 53MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.410" L (3.99mm x 10.41mm) | - |
|

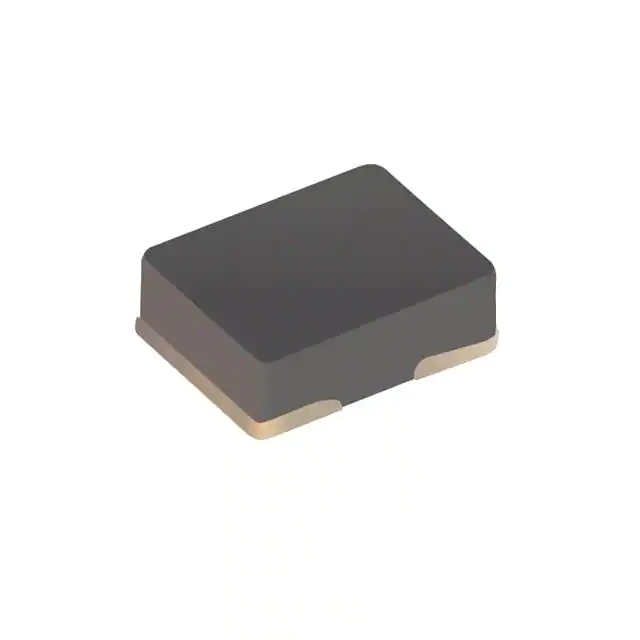

SRP3212A-R33MIND METAL POWDER 0.33UH 8.5A |
4,835 | 0.13 |
|
Datasheet |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 330 nH | ±20% | 8.5 A | 9.1A | Shielded | 13mOhm Max | 3 @ 100kHz | 132MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
NRS5020T1R0NMGJFIXED IND 1UH 3.6A 25.2 MOHM SMD |
4,202 | 0.31 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.6 A | 4A | Shielded | 25.2mOhm Max | - | 81MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|

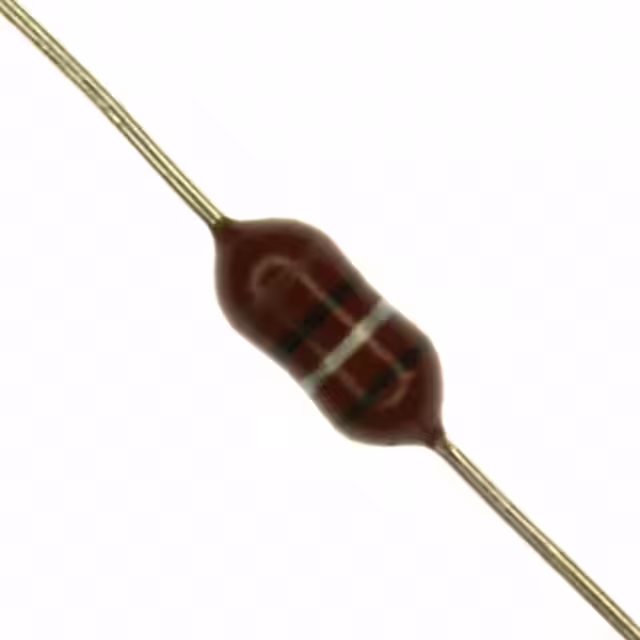

78FR10M-RCFIXED IND 100NH 1.2A 60 MOHM TH |
4,133 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 1.2 A | - | Unshielded | 60mOhm Max | 20 @ 25MHz | 400MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|

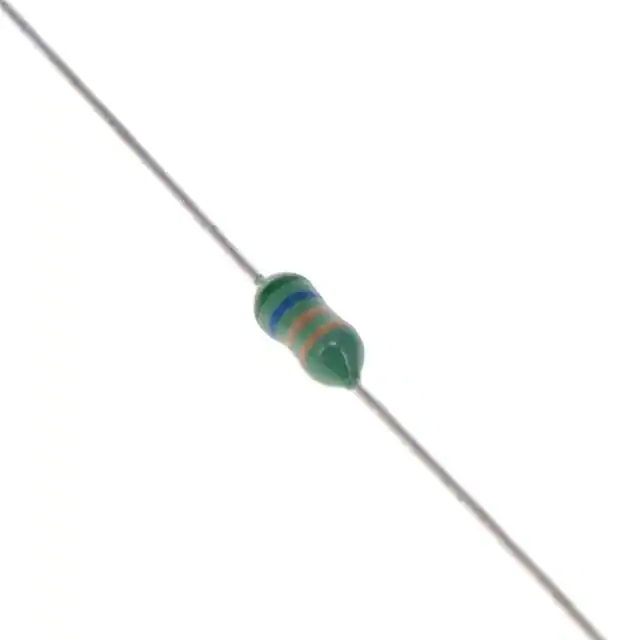

78F5R6J-RCFIXED IND 5.6UH 500MA 400MOHM TH |
4,114 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 500 mA | - | Unshielded | 400mOhm Max | 45 @ 7.9MHz | 32MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F2R2K-RCFIXED IND 2.2UH 630MA 250MOHM TH |
4,072 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 630 mA | - | Unshielded | 250mOhm Max | 50 @ 7.9MHz | 110MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
78F3R3J-RCFIXED IND 3.3UH 575MA 300MOHM TH |
3,406 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 575 mA | - | Unshielded | 300mOhm Max | 50 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
VLS3015CX-3R3M-HFIXED IND 3.3UH 1.79A 0.101OHM |
3,357 | 0.41 |
|
Datasheet |
VLS-CX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.79 A | 1.29A | Shielded | 101mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
78F102J-RCFIXED IND 1MH 60MA 31.4 OHM TH |
3,334 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 60 mA | - | Unshielded | 31.4Ohm Max | 60 @ 790kHz | 1.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
|
SRP3212A-4R7MIND METAL POWDER 4.7UH 2.2A |
3,112 | 0.13 |
|
Datasheet |
SRP3212A | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 2.2 A | 2.8A | Shielded | 146mOhm Max | 5 @ 100kHz | 25MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | Flat Wire | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
