Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

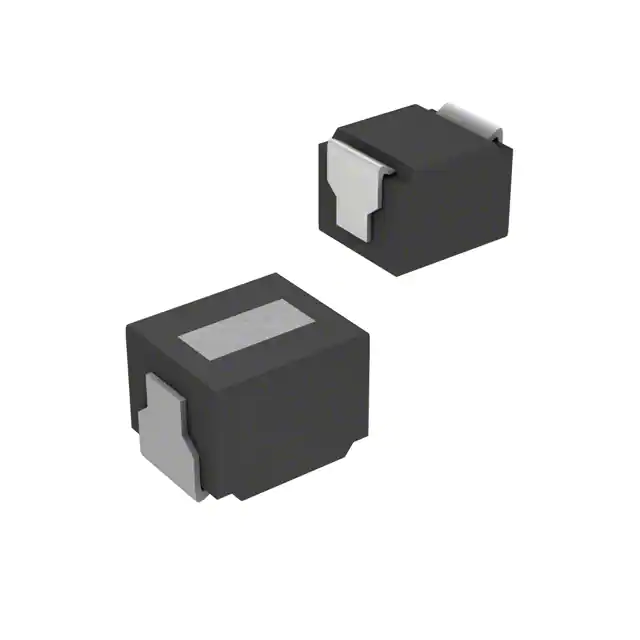

CM322522-470KLFIXED IND 47UH 75MA 7 OHM SMD |
3,517 | 0.32 |
|
Datasheet |
CM322522 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 75 mA | - | Unshielded | 7Ohm Max | 30 @ 2.52MHz | 15MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.087" (2.20mm) |
-BR-Series.jpg)
|
BRC2012T1R0MFIXED IND 1UH 1.4A 78 MOHM SMD |
118,898 | 0.32 |
|
Datasheet |
BR, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.4 A | 1.5A | Unshielded | 78mOhm Max | - | 490MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
|
BRC2012T3R3MDFIXED IND 3.3UH 870MA 221MOHM SM |
56,763 | 0.32 |
|
Datasheet |
BR, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 870 mA | 800mA | Unshielded | 221mOhm Max | - | 300MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
|
SDER041H-2R2MSFIXED IND 2.2UH 3.1A 45MOHM SMD |
52,414 | 0.32 |
|
Datasheet |
SDER041H | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.1 A | 2.8A | Shielded | 45mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
NRS5020T4R7MMGJFIXED IND 4.7UH 2A 72 MOHM SMD |
45,993 | 0.31 |
|
Datasheet |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2 A | 2A | Shielded | 72mOhm Max | - | 37MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.079" (2.00mm) |
|
LQM21DH100M70LFIXED IND 10UH 300MA 845MOHM SMD |
45,040 | 0.26 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±20% | 300 mA | 250mA | Shielded | 845mOhm Max | - | 27MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CPI0603A100R-10MULTILAYER FERRITE CHIP POWER IN |
33,162 | 0.29 |
|
Datasheet |
CPI0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 110 mA | - | Unshielded | 520mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

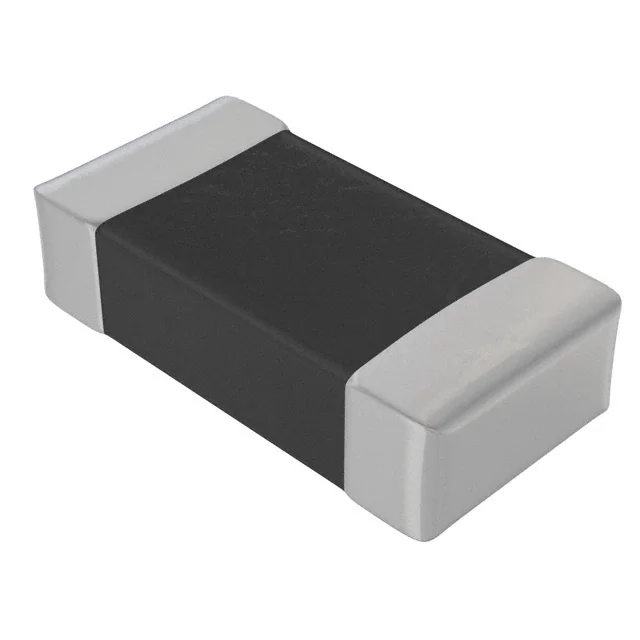

AIML-1206-2R2K-TFIXED IND 2.2UH 50MA 550MOHM SMD |
32,911 | 0.31 |
|
Datasheet |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±10% | 50 mA | - | Shielded | 550mOhm Max | 50 @ 10MHz | 58MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
AIML-1206-100K-TFIXED IND 10UH 25MA 800 MOHM SMD |
31,094 | 0.31 |
|
Datasheet |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 10 µH | ±10% | 25 mA | - | Shielded | 800mOhm Max | 55 @ 2MHz | 28MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
MLJ1005HXGR16JTD0BFIXED IND 160NH 600MA 754MOHM SM |
26,340 | 0.33 |
|
Datasheet |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 160 nH | ±5% | 600 mA | - | Shielded | 754mOhm Max | 14 @ 13.56MHz | - | - | -55°C ~ 125°C | 13.56 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
LQW15AW82NJ80DFIXED IND 82NH 370MA 0.87OHM SMD |
25,908 | 0.31 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±5% | 370 mA | - | Unshielded | 870mOhm Max | 33 @ 250MHz | 1.7GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
|
LQW15AWR12J80DFIXED IND 120NH 320MA 1.2OHM SMD |
22,504 | 0.31 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 120 nH | ±5% | 320 mA | - | Unshielded | 1.2Ohm Max | 33 @ 250MHz | 1.4GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
|
AIML-1206-220K-TFIXED IND 22UH 5MA 900 MOHM SMD |
21,698 | 0.31 |
|
Datasheet |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±10% | 5 mA | - | Shielded | 900mOhm Max | 40 @ 1MHz | 19MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
AIML-1206-6R8K-TFIXED IND 6.8UH 25MA 750MOHM SMD |
20,187 | 0.31 |
|
Datasheet |
AIML-1206 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±10% | 25 mA | - | Shielded | 750mOhm Max | 55 @ 4MHz | 34MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.055" (1.40mm) |
|
|
LQM21DH220M70LFIXED IND 22UH 220MA 1.625OHM SM |
19,828 | 0.26 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 22 µH | ±20% | 220 mA | 100mA | Shielded | 1.625Ohm Max | - | 19MHz | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
MLP2016S1R0MT0S1FIXED IND 1UH 1.4A 117 MOHM SMD |
18,486 | 0.33 |
|
Datasheet |
MLP | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 1.4 A | - | Shielded | 117mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
78FR22K-RCFIXED IND 220NH 1.15A 75 MOHM TH |
16,398 | 0.31 |
|
Datasheet |
78F | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 1.15 A | - | Unshielded | 75mOhm Max | 40 @ 25MHz | 380MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.110" Dia x 0.280" L (2.79mm x 7.11mm) | - |
|
B82496C3101G000FIXED IND 100NH 200MA 1.8OHM SMD |
16,311 | 0.55 |
|
Datasheet |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±2% | 200 mA | - | Unshielded | 1.8Ohm Max | 14 @ 100MHz | 1.8GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
-BR-Series.jpg)
|
BRC2518T220KFIXED IND 22UH 490MA 560MOHM SMD |
16,243 | 0.32 |
|
Datasheet |
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 490 mA | 640mA | Unshielded | 560mOhm | - | 10MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|

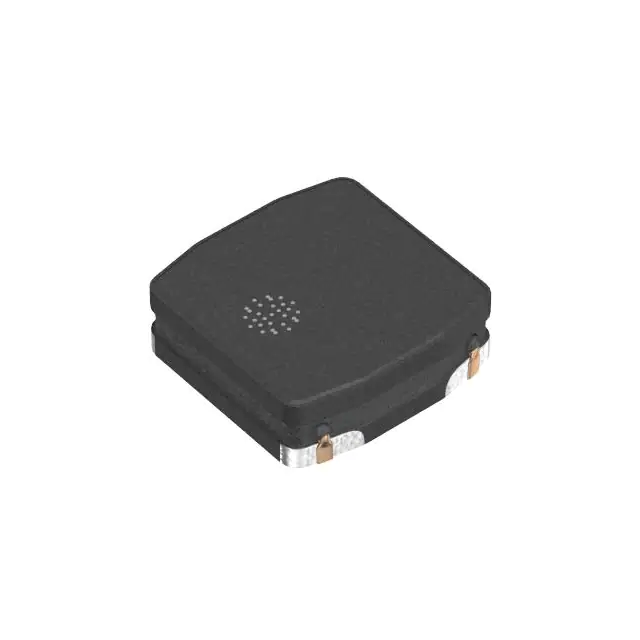

VLS3010CX-101M-1FIXED IND 100UH 300MA 2.988 OHM |
12,914 | 0.35 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 300 mA | 150mA | Shielded | 2.988Ohm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.039" (1.00mm) |
