Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-BR-Series.jpg)
|
BRC1608TR50M6FIXED IND 500NH 1.05A 90MOHM SMD |
10,276 | 0.34 |
|
Datasheet |
BR, C Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 500 nH | ±20% | 1.05 A | 1.2A | Unshielded | 90mOhm | - | 710MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
NRS5024T1R0NMGJFIXED IND 1UH 4.4A 16 MOHM SMD |
9,966 | 0.33 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.4 A | 5.8A | Shielded | 16mOhm Max | - | 85MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
|
NRS5024T2R2NMGJFIXED IND 2.2UH 3.1A 29 MOHM SMD |
9,930 | 0.33 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 3.1 A | 4.1A | Shielded | 29mOhm Max | - | 51MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.094" (2.40mm) |
|
ASMPH-0603-2R2M-TFIXED IND 2.2UH 850MA 300MOHM SM |
9,661 | 0.32 |
|
Datasheet |
ASMPH-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 850 mA | 300mA | Shielded | 300mOhm | - | 80MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
LQH2MPN100MGRLFIXED IND 10UH 480MA 1.056OHM SM |
9,005 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 480 mA | 610mA | Shielded | 1.056Ohm Max | - | 30MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
VLS5045EX-6R8MFIXED IND 6.8UH 2.9A 59.8MOHM SM |
8,993 | 0.44 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.9 A | 3.6A | Shielded | 59.8mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
MLP2012HR47MT0S1FIXED IND 470NH 1.3A 91 MOHM SMD |
8,658 | 0.34 |
|
Datasheet |
MLP | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 470 nH | ±20% | 1.3 A | - | Shielded | 91mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
LSXND5050YAL100MMGFIXED IND 10UH 2.1A 72.8MOHM SMD |
7,730 | 0.14 |
|
- |
LSXN | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.3A | Shielded | 72.8mOhm Max | - | 18MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.161" (4.10mm) |
|
|
BRC1608T1R0M6FIXED IND 1UH 680MA 188 MOHM SMD |
7,667 | 0.34 |
|
Datasheet |
BR, C Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 680 mA | 890mA | Unshielded | 188mOhm | - | 550MHz | - | -40°C ~ 105°C | 6 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQH2MPN220MGRLFIXED IND 22UH 290MA 2.52OHM SMD |
7,296 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 290 mA | 410mA | Shielded | 2.52Ohm Max | - | 20MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQH2MPN820MGRLFIXED IND 82UH 150MA 8.76OHM SMD |
6,621 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 150 mA | 210mA | Shielded | 8.76Ohm Max | - | 5MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|

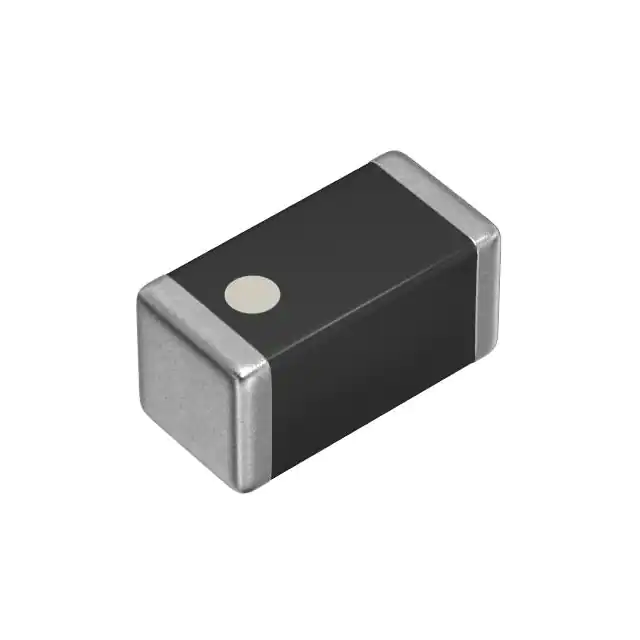

MLJ1005HXG56NETD0BFIXED IND 56NH 950MA 325MOHM SMD |
5,928 | 0.33 |
|
Datasheet |
MLJ | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 56 nH | ±4nH | 950 mA | - | Shielded | 325mOhm Max | 14 @ 13.56MHz | - | - | -55°C ~ 125°C | 13.56 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.026" (0.65mm) |
|
|
LQH2MPN150MGRLFIXED IND 15UH 340MA 2.04OHM SMD |
5,491 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 340 mA | 490mA | Shielded | 2.04Ohm Max | - | 25MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
AOTA-B201610S2R2MTIND 2.2UH 2A 74M |
5,462 | 0.00 |
|
Datasheet |
AOTA-B201610S | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 2 A | 2.6A | Shielded | 74mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQH2MPN4R7MGRLFIXED IND 4.7UH 580MA 720MOHM SM |
5,188 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 580 mA | 870mA | Shielded | 720mOhm Max | - | 40MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
ASMPH-0603-R68M-TFIXED IND 680NH 1.15A 180MOHM SM |
4,978 | 0.32 |
|
Datasheet |
ASMPH-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 680 nH | ±20% | 1.15 A | 1.1A | Shielded | 180mOhm | - | 160MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQH2MPN6R8MGRLFIXED IND 6.8UH 530MA 864MOHM SM |
3,852 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 530 mA | 730mA | Shielded | 864mOhm Max | - | 35MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQH2MPN470MGRLFIXED IND 47UH 180MA 6.36OHM SMD |
3,789 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 180 mA | 270mA | Shielded | 6.36Ohm Max | - | 10MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
LQH2MPN680MGRLFIXED IND 68UH 160MA 8.04OHM SMD |
3,553 | 0.28 |
|
Datasheet |
LQH2 | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 160 mA | 230mA | Shielded | 8.04Ohm Max | - | 7MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.037" (0.95mm) |
|
|
ASMPH-0603-1R5M-TFIXED IND 1.5UH 900MA 230MOHM SM |
3,546 | 0.32 |
|
Datasheet |
ASMPH-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1.5 µH | ±20% | 900 mA | 500mA | Shielded | 230mOhm | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
