Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTEH20161T-1R0MSRFIXED INDUCTOR 1UH |
60,232 | 0.31 |
|
Datasheet |
HTEH20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.3 A | 4.8A | Unshielded | 36mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
CW100505-68NJFIXED IND 68NH 180MA 1.12OHM SMD |
23,675 | 0.37 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 68 nH | ±5% | 180 mA | - | Unshielded | 1.12Ohm | 22 @ 200MHz | 1.62GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
.jpg)
|
B82422A1472K100FIXED IND 4.7UH 150MA 2.2OHM SMD |
23,244 | 0.60 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 150 mA | - | Unshielded | 2.2Ohm Max | 27 @ 7.96MHz | 110MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|

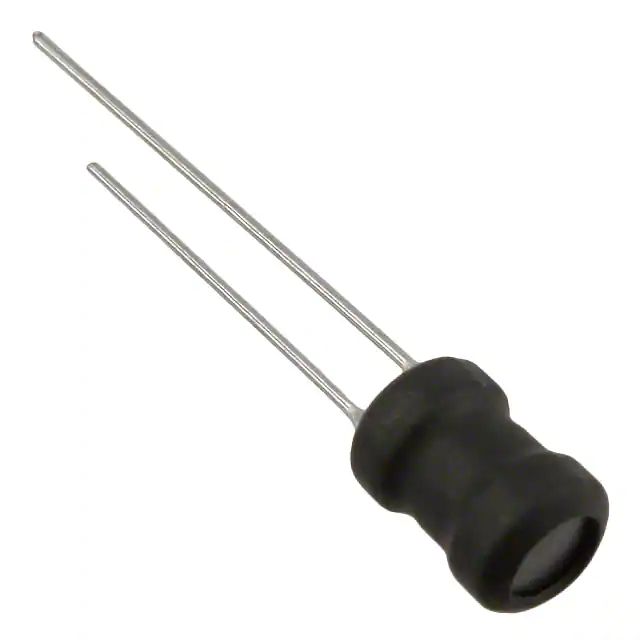

RLB0812-103KLFIXED IND 10MH 34MA 39 OHM TH |
23,064 | 0.47 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 34 mA | - | Unshielded | 39Ohm Max | 60 @ 79.6kHz | 360kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.264" Dia (6.70mm) | 0.433" (11.00mm) |
|
|
CW100505-3N9JFIXED IND 3.9NH 840MA 66MOHM SMD |
19,426 | 0.37 |
|
Datasheet |
CW100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±5% | 840 mA | - | Unshielded | 66mOhm | 20 @ 250MHz | 5.8GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.022" W (1.00mm x 0.55mm) | 0.024" (0.60mm) |
|
LQW15AW56NG80DFIXED IND 56NH 480MA 0.52OHM SMD |
19,108 | 0.12 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 56 nH | ±2% | 480 mA | - | Unshielded | 520mOhm Max | 33 @ 250MHz | 2.1GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
.jpg)
|
LQM18PZ2R2MDHDFIXED IND 2.2UH 650MA 470MOHM SM |
15,866 | 0.34 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 650 mA | 250mA | Shielded | 470mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
VLS252010HBX-2R2M-1FIXED IND 2.2UH 1.76A 120MOHM SM |
13,899 | 0.36 |
|
Datasheet |
VLS-HBX-1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.76 A | 2.3A | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
HTEH20161T-R47MSRFIXED INDUCTOR 0.47UH |
13,151 | 0.31 |
|
Datasheet |
HTEH20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 0.47 µH | ±20% | 4.8 A | 6A | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
B82422A1223K100FIXED IND 22UH 140MA 2.65OHM SMD |
12,715 | 0.60 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 140 mA | - | Unshielded | 2.65Ohm Max | 27 @ 2.52MHz | 16MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
HTEX20161T-4R7MDRFIXED IND 4.7UH 1.5A 250MOHM SMD |
8,158 | 0.31 |
|
Datasheet |
HTEX20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 1.5 A | 1.7A | Shielded | 250mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQW15AW82NG80DFIXED IND 82NH 370MA 0.87OHM SMD |
7,825 | 0.12 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 82 nH | ±2% | 370 mA | - | Unshielded | 870mOhm Max | 33 @ 250MHz | 1.7GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
LQM18PZ1R0MCHDFIXED IND 1UH 950MA 290MOHM SMD |
7,795 | 0.34 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 1 µH | ±20% | 950 mA | 600mA | Shielded | 290mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
|
LQM31PNR47M00LFIXED IND 470NH 1.4A 87.5MOHM SM |
7,402 | 0.35 |
|
Datasheet |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 470 nH | ±20% | 1.4 A | - | Shielded | 87.5mOhm Max | - | 80MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
LQM21PN4R7MGHLFIXED IND 4.7UH 1.2A 275MOHM SMD |
7,166 | 0.28 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 4.7 µH | ±20% | 1.2 A | 250mA | Shielded | 275mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
LQW15AWR22G80DFIXED IND 220NH 220MA 2.75OHM SM |
6,942 | 0.12 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 220 nH | ±2% | 220 mA | - | Unshielded | 2.75Ohm Max | 33 @ 250MHz | 1.1GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
|
LQW15AWR18G80DFIXED IND 180NH 260MA 2.2OHM SMD |
6,715 | 0.12 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 180 nH | ±2% | 260 mA | - | Unshielded | 2.2Ohm Max | 33 @ 250MHz | 1.3GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
VLS5045EX-330MFIXED IND 33UH 1.3A 312 MOHM SMD |
5,874 | 0.44 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.3 A | 1.5A | Shielded | 312mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
LQW15AWR15G80DFIXED IND 150NH 280MA 1.71OHM SM |
5,826 | 0.12 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 150 nH | ±2% | 280 mA | - | Unshielded | 1.71Ohm Max | 33 @ 250MHz | 1.4GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
|
VLS5045EX-220MFIXED IND 22UH 1.8A 162.5MOHM SM |
5,807 | 0.44 |
|
Datasheet |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2A | Shielded | 162.5mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
