Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15AWR10G80DFIXED IND 100NH 350MA 1OHM SMD |
5,547 | 0.12 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 100 nH | ±2% | 350 mA | - | Unshielded | 1Ohm Max | 33 @ 250MHz | 1.6GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|

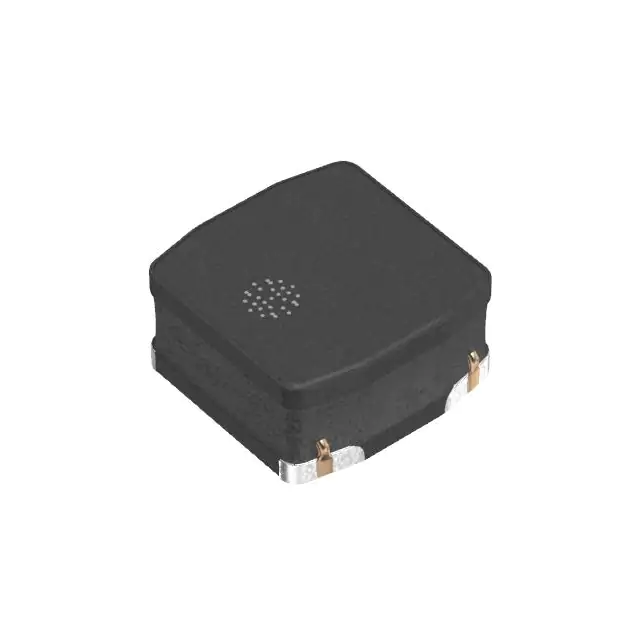

VLS3015CX-150M-1FIXED IND 15UH 1.11A 0.382OHM SM |
5,457 | 0.38 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.11 A | 720mA | Shielded | 382mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
LQM21PN2R2MCHDFIXED IND 2.2UH 1.05A 250MOHM SM |
4,239 | 0.25 |
|
Datasheet |
LQM21 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 1.05 A | 200mA | Shielded | 250mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
VLS5045EX-470M-HFIXED IND 47UH 1A 390 MOHM SMD |
3,559 | 0.52 |
|
Datasheet |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1 A | 1.3A | Shielded | 390mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|

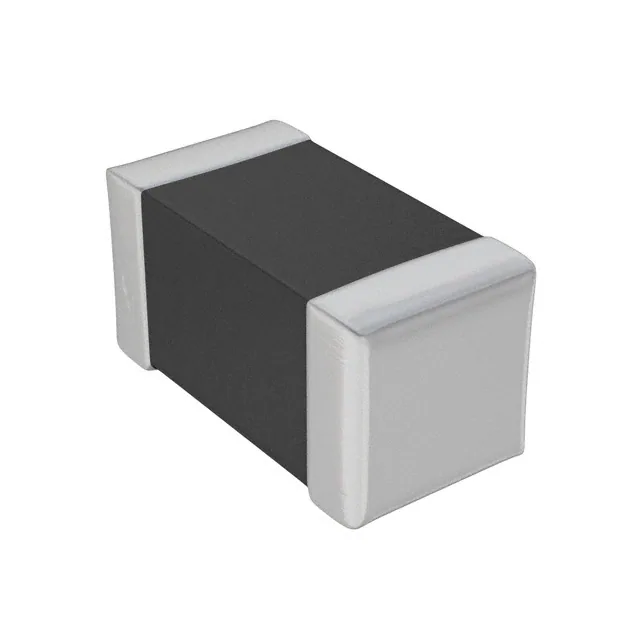

LQM18PZ2R2MCHDFIXED IND 2.2UH 750MA 480MOHM SM |
2,940 | 0.34 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.2 µH | ±20% | 750 mA | 200mA | Shielded | 480mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.026" (0.65mm) |
.jpg)
|
VLS252012HBX-6R8M-1FIXED IND 6.8UH 1.15A 372MOHM SM |
1,931 | 0.70 |
|
Datasheet |
VLS-HBX-1 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 1.15 A | 940mA | Shielded | 372mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
LQW15AWR12G80DFIXED IND 120NH 320MA 1.2OHM SMD |
1,875 | 0.12 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 120 nH | ±2% | 320 mA | - | Unshielded | 1.2Ohm Max | 33 @ 250MHz | 1.4GHz | - | -40°C ~ 140°C | 250 MHz | - | Surface Mount | 0402 | 0.040" L x 0.024" W (1.02mm x 0.61mm) | 0.026" (0.66mm) |
|
|
VLS3015CX-330M-1FIXED IND 33UH 750MA 0.779OHM SM |
1,734 | 0.42 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 750 mA | 470mA | Shielded | 779mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
LQM18PZ2R5NCHDFIXED IND 2.5UH 900MA 300MOHM SM |
1,731 | 0.34 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 2.5 µH | ±30% | 900 mA | 100mA | Shielded | 300mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.024" (0.60mm) |
|
VLS3015CX-220M-1FIXED IND 22UH 870MA 0.496OHM SM |
1,023 | 0.38 |
|
Datasheet |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 870 mA | 570mA | Shielded | 496mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 3015 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

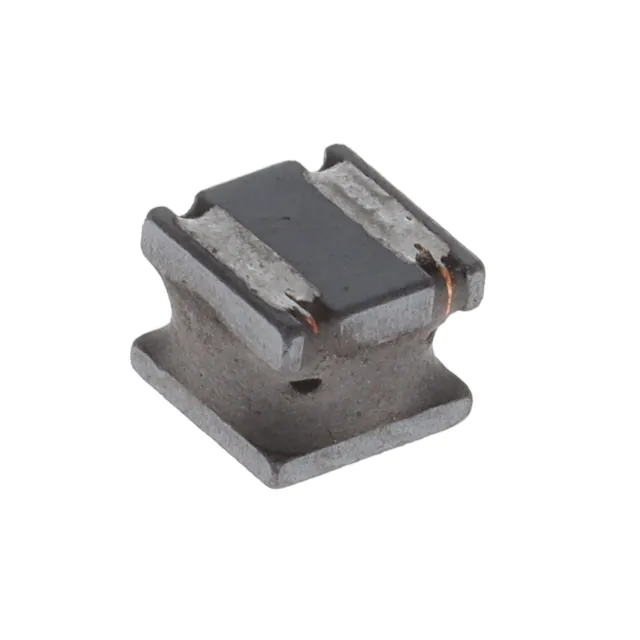

SDEI054T-330MSFIXED IND 33UH 1.5A 211MOHM SMD |
214,752 | 0.38 |
|
Datasheet |
SDEI054T | Nonstandard | Tape & Reel (TR) | Active | - | - | 33 µH | ±20% | 1.5 A | 1.75A | Shielded | 211mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
|
NR3015T220MFIXED IND 22UH 470MA 624MOHM SMD |
161,791 | 0.38 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 470 mA | 470mA | Shielded | 624mOhm Max | - | 20MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
NR6028T330MFIXED IND 33UH 1.1A 286 MOHM SMD |
143,175 | 0.37 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | 1.1A | Shielded | 286mOhm Max | - | 10MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
|
NR3015T470MFIXED IND 47UH 300MA 1.608OHM SM |
128,606 | 0.38 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 300 mA | 320mA | Shielded | 1.608Ohm Max | - | 17MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|
|
NR3015T3R3MFIXED IND 3.3UH 1.23A 96MOHM SMD |
57,649 | 0.38 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.23 A | 1.21A | Shielded | 96mOhm Max | - | 49MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.059" (1.50mm) |
|

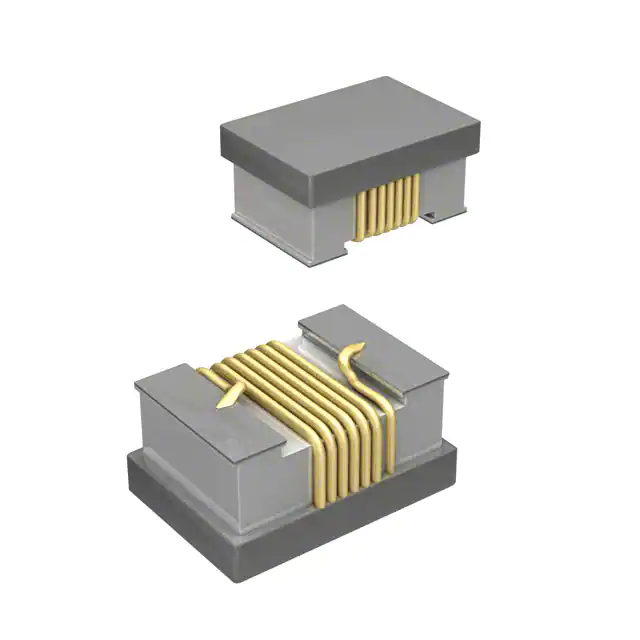

CW201212-R47JFIXED IND 470NH 250MA 1.72OHM SM |
55,635 | 0.38 |
|
Datasheet |
CW201212 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 250 mA | - | Unshielded | 1.72Ohm | 33 @ 100MHz | 375MHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.083" L x 0.059" W (2.10mm x 1.50mm) | 0.059" (1.50mm) |
|
B78108S1153K000FIXED IND 15UH 610MA 600 MOHM TH |
44,879 | 0.40 |
|
Datasheet |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 610 mA | - | Unshielded | 600mOhm Max | 60 @ 2.52MHz | 20MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
NRS6028T470MMGJFIXED IND 47UH 920MA 390MOHM SMD |
36,939 | 0.37 |
|
- |
NR, S Type | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 920 mA | 1A | Shielded | 390mOhm Max | - | 8MHz | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.110" (2.80mm) |
|
LQM31PN1R0M00LFIXED IND 1UH 1.2A 150 MOHM SMD |
32,606 | 0.35 |
|
Datasheet |
LQM31 | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.2 A | - | Shielded | 150mOhm Max | - | 60MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.037" (0.95mm) |
|
SDEI054T-470MSFIXED IND 47UH 1.35A 294MOHM SMD |
32,453 | 0.38 |
|
Datasheet |
SDEI054T | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.35 A | 1.44A | Shielded | 294mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.193" L x 0.193" W (4.90mm x 4.90mm) | 0.157" (4.00mm) |
