Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASPI-6045S-R82N-TFIXED IND 820NH 5.9A 8 MOHM SMD |
1,708 | 0.71 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±30% | 5.9 A | 10.35A | Shielded | 8mOhm | - | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
ASPI-6045S-150M-TFIXED IND 15UH 2.05A 68 MOHM SMD |
1,472 | 0.71 |
|
Datasheet |
ASPI-6045S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.05 A | 2.5A | Shielded | 68mOhm | - | 12MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
LQH3NPZ100MJRLFIXED IND 10UH 1.2A 288 MOHM SMD |
1,367 | 0.44 |
|
Datasheet |
LQH3 | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.2 A | 810mA | Shielded | 288mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

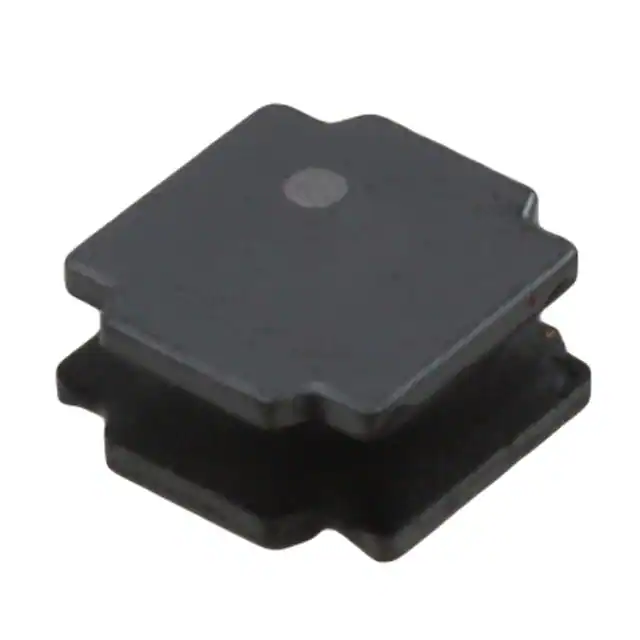

NR8040T150MFIXED IND 15UH 2.4A 65 MOHM SMD |
53,496 | 0.57 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.4 A | 2.7A | Shielded | 65mOhm Max | - | 16MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NR8040T330MFIXED IND 33UH 1.7A 130 MOHM SMD |
40,421 | 0.57 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.7 A | 1.9A | Shielded | 130mOhm Max | - | 12MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
|
NR8040T6R8NFIXED IND 6.8UH 3.7A 32.5MOHM SM |
30,861 | 0.57 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 6.8 µH | ±30% | 3.7 A | 4A | Shielded | 32.5mOhm Max | - | 24MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
TYS6045331M-10FIXED IND 330UH 570MA 1.27OHM SM |
23,776 | 0.52 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 570 mA | 570mA | Shielded | 1.27Ohm | - | 2.8MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS6045221M-10FIXED IND 220UH 590MA 834MOHM SM |
21,501 | 0.52 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 µH | ±20% | 590 mA | 700mA | Shielded | 834mOhm | - | 3.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
LQW18CNR33J0ZDFIXED IND 330NH 630MA 250MOHM SM |
13,781 | 0.55 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±5% | 630 mA | - | Unshielded | 250mOhm Max | - | 600MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
NR8040T3R6NFIXED IND 3.6UH 4.9A 19.5MOHM SM |
12,917 | 0.57 |
|
Datasheet |
NR | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 3.6 µH | ±30% | 4.9 A | 5.3A | Shielded | 19.5mOhm Max | - | 34MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.157" (4.00mm) |
|
F1C1-201210-100MFIXED IND 10.0UH 1.0A 660 MOHM |
11,946 | 0.00 |
|
Datasheet |
F1C1-2012 | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Molded | Metal | 10 µH | ±20% | 1 A | 1A | Shielded | 660mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
|
TYS6045470M-10FIXED IND 47UH 1.2A 200 MOHM SMD |
10,508 | 0.49 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.2 A | 1.4A | Shielded | 200mOhm | - | 6.4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
LQW18CNR12J0ZDFIXED IND 120NH 1.1A 85 MOHM SMD |
10,338 | 0.55 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±5% | 1.1 A | - | Unshielded | 85mOhm Max | - | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
RLB1014-333KLFIXED IND 33MH 74MA 90 OHM TH |
9,965 | 0.57 |
|
Datasheet |
RLB | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 74 mA | 75mA | Unshielded | 90Ohm Max | 45 @ 79.6kHz | 180kHz | - | -40°C ~ 125°C | 79.6 kHz | - | Through Hole | - | 0.343" Dia (8.70mm) | 0.512" (13.00mm) |
|
LQW15CN1R0M10DFIXED IND 1UH 270MA 0.94OHM SMD |
9,795 | 0.57 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 270 mA | - | Unshielded | 940mOhm Max | - | 120MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW18CNR65J0ZDFIXED IND 650NH 430MA 520MOHM SM |
9,465 | 0.55 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 650 nH | ±5% | 430 mA | - | Unshielded | 520mOhm Max | - | 510MHz | AEC-Q200 | -40°C ~ 125°C | 10 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
.jpg)
|
LPWI201610B1R0TFIXED IND 1UH 3.2A 46 MOHM SMD |
8,935 | 0.62 |
|
Datasheet |
LPWI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 3.2 A | 4A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SRP2510A-1R0MFIXED IND 1UH 3A 54 MOHM SMD |
6,765 | 0.57 |
|
Datasheet |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 3 A | 3.5A | Shielded | 54mOhm Max | 35 @ 1MHz | 94MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
TYS6045100M-10FIXED IND 10UH 2.45A 48 MOHM SMD |
6,295 | 0.52 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 2.45 A | 3.2A | Shielded | 48mOhm | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
|
|
TYS6045150M-10FIXED IND 15UH 2.05A 68 MOHM SMD |
5,537 | 0.20 |
|
Datasheet |
TYS6045 | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 2.05 A | 2.5A | Shielded | 68mOhm | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.185" (4.70mm) |
