Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW15CA1R0K00DFIXED IND 1UH 180MA 2.2OHM SMD |
11,097 | 0.54 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 180 mA | - | Unshielded | 2.2Ohm Max | - | 400MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|

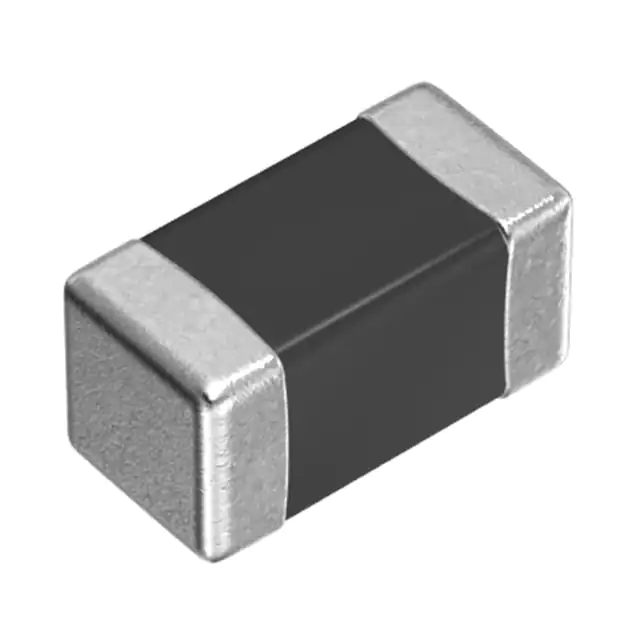

TFM201610ALC-R47MTAAFIXED IND 470NH 5.2A 25 MOHM SMD |
10,994 | 0.68 |
|
Datasheet |
TFM-ALC | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 470 nH | ±20% | 5.2 A | 5.1A | Shielded | 25mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQW15CAR27J00DFIXED IND 270NH 480MA 0.38OHM SM |
9,119 | 0.54 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 nH | ±5% | 480 mA | - | Unshielded | 380mOhm Max | - | 1.2GHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|
SRP2510A-4R7MFIXED IND 4.7UH 1.36A 262MOHM SM |
8,458 | 0.57 |
|
Datasheet |
SRP2510A | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 1.36 A | 1.8A | Shielded | 262mOhm Max | 35 @ 1MHz | 40MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|
LPWI252010H1R0TFIXED IND 1UH 4.3A 45 MOHM SMD |
8,319 | 0.64 |
|
Datasheet |
LPWI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal Composite | 1 µH | ±20% | 4.3 A | 4.1A | Shielded | 45mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
.jpg)
|

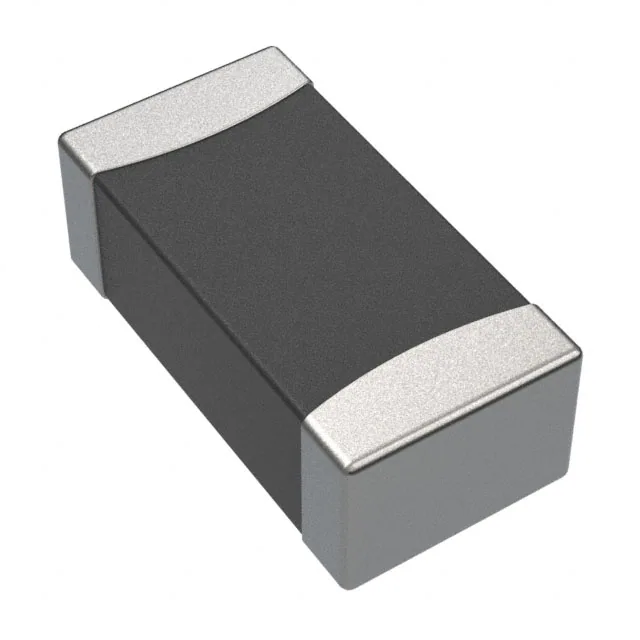

7447915FIXED IND 1UH 100MA 400 MOHM SMD |
8,116 | 0.55 |
|
Datasheet |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 1 µH | ±10% | 100 mA | - | Unshielded | 400mOhm Max | 45 @ 10MHz | 87MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|
B82141A1104J000FIXED IND 100UH 170MA 3.5 OHM TH |
8,105 | 0.43 |
|
Datasheet |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 170 mA | - | Unshielded | 3.5Ohm Max | 60 @ 796kHz | 5.3MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
VLCF5020T-100MR87FIXED IND 10UH 870MA 182MOHM SMD |
7,385 | 0.76 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 870 mA | 870mA | Shielded | 182mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
|
LQW15CAR80J00DFIXED IND 800NH 190MA 2.1OHM SMD |
6,770 | 0.54 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 800 nH | ±5% | 190 mA | - | Unshielded | 2.1Ohm Max | - | 770MHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|
|
LQW15CN3R3M10DFIXED IND 3.3UH 130MA 3.65OHM SM |
6,492 | 0.57 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 130 mA | - | Unshielded | 3.65Ohm Max | - | 80MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
DFE252012PD-2R2M=P2FIXED IND 2.2UH 2.2A 0.084OHM SM |
6,301 | 0.54 |
|
Datasheet |
DFE252012PD | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 2.2 A | 2.8A | Shielded | 84mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | Flat Wire | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
TFM201610ALMAR33MTAAFIXED IND 330NH 4.3A 31 MOHM SMD |
6,083 | 0.74 |
|
Datasheet |
TFM-ALMA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 330 nH | ±20% | 4.3 A | 5.2A | Shielded | 31mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | - | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
LQH43PN470M26LFIXED IND 47UH 520MA 861.6 MOHM |
5,367 | 0.38 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 520 mA | 470mA | Shielded | 861.6mOhm Max | - | 8MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQH43PN220M26LFIXED IND 22UH 780MA 392.4 MOHM |
5,283 | 0.38 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 780 mA | 700mA | Shielded | 392.4mOhm Max | - | 15MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
LQW15CAR32J00DFIXED IND 320NH 420MA 0.41OHM SM |
5,208 | 0.54 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 320 nH | ±5% | 420 mA | - | Unshielded | 410mOhm Max | - | 1.1GHz | - | -40°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.040" L x 0.022" W (1.02mm x 0.55mm) | 0.026" (0.66mm) |
|

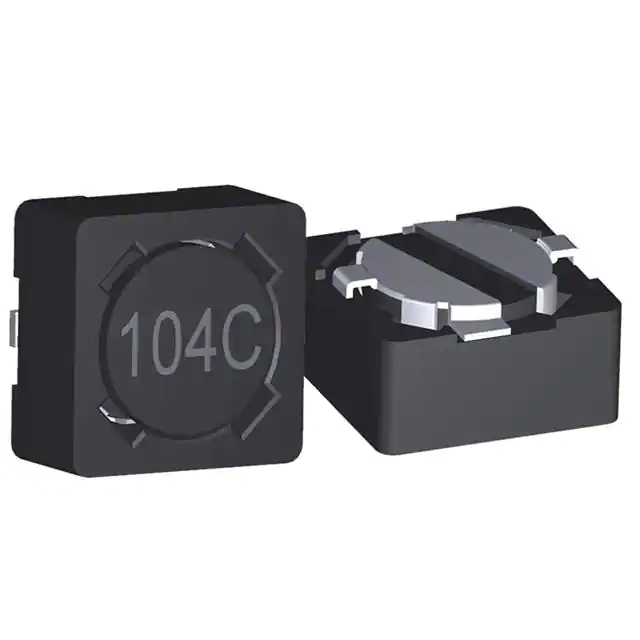

46223CFIXED IND 22UH 1.8A 120 MOHM SMD |
5,066 | 1.29 |
|
Datasheet |
4600 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 1.8 A | - | Shielded | 120mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.179" (4.55mm) |
|
LQH44PH6R8MPRLFIXED IND 6.8UH 1.5A 120MOHM SMD |
4,565 | 0.36 |
|
Datasheet |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.5 A | 1.85A | Shielded | 120mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PH4R7MPRLFIXED IND 4.7UH 1.9A 78 MOHM SMD |
4,033 | 0.36 |
|
Datasheet |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.9 A | 2.05A | Shielded | 78mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH44PH221MPRLFIXED IND 220UH 280MA 3.78OHM SM |
3,943 | 0.36 |
|
Datasheet |
LQH32 | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 280 mA | 330mA | Shielded | 3.78Ohm Max | - | 4MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.071" (1.80mm) |
|
|
LQH43PN1R0N26LFIXED IND 1UH 3.3A 31.2 MOHM SMD |
3,904 | 0.38 |
|
Datasheet |
LQH43 | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 3.3 A | 3.4A | Shielded | 31.2mOhm Max | - | 100MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
