Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
197C15FIXED IND 1.35MH 15A 0.029OHM SM |
2,775 | 7.00 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.35 mH | ±15% | 15 A | - | Unshielded | 29mOhm | - | 289.05kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|
193MFIXED IND 10H 300MA 63 OHM CHASS |
4,887 | 108.58 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 10 H | ±15% | 300 mA | - | Unshielded | 63Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|
197B20FIXED IND 800UH 20A 0.023OHM SMD |
3,113 | 3.00 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 800 µH | ±15% | 20 A | - | Unshielded | 23mOhm | - | 333kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 4.500" L x 3.370" W (114.30mm x 85.60mm) | 3.860" (98.04mm) |
|
|
193PFIXED IND 5H 500MA 26 OHM CHASS |
3,178 | 117.95 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Bulk | Active | Wirewound | - | 5 H | ±15% | 500 mA | - | Unshielded | 26Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 4.500" L x 3.750" W (114.30mm x 95.25mm) | 4.560" (115.82mm) |
|
197E15FIXED IND 3.5MH 15A 0.08OHM SMD |
3,902 | 4.00 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 3.5 mH | ±15% | 15 A | - | Unshielded | 80mOhm | - | 152.9kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
197D20FIXED IND 2MH 20A 0.049OHM SMD |
1,174 | 202.03 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 2 mH | ±15% | 20 A | - | Unshielded | 49mOhm | - | 218kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
197C25FIXED IND 1.4MH 25A 0.03OHM SMD |
4,545 | 5.00 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 1.4 mH | ±15% | 25 A | - | Unshielded | 30mOhm | - | 272.3kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
197M5FIXED IND 25MH 5A 0.403OHM SMD |
4,193 | 205.98 |
|
Datasheet |
197 | Nonstandard | Box | Active | Powdered Iron Core | Carbonyl Powder | 25 mH | ±15% | 5 A | - | Unshielded | 403mOhm | - | 72.4kHz | - | -40°C ~ 105°C | - | - | Surface Mount | - | 6.100" L x 4.380" W (154.94mm x 111.25mm) | 6.400" (162.56mm) |
|
|
193LPFIXED IND 5H 300MA 55 OHM CHASS |
1,163 | 215.30 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 5 H | ±15% | 300 mA | - | Unshielded | 55Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
|
193MPFIXED IND 10H 300MA 63 OHM CHASS |
1,295 | 243.40 |
|
Datasheet |
193 | Nonstandard, 2 Lead | Box | Active | Wirewound | - | 10 H | ±15% | 300 mA | - | Unshielded | 63Ohm | - | - | - | -40°C ~ 65°C | - | - | Chassis Mount | - | 3.880" L x 3.310" W (98.55mm x 84.07mm) | 4.250" (107.95mm) |
|
195D50FIXED IND 1.4MH 50A 5 MOHM CHASS |
1,986 | 256.30 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 1.4 mH | ±15% | 50 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.380" L x 5.500" W (162.05mm x 139.70mm) | 5.380" (136.65mm) |
|

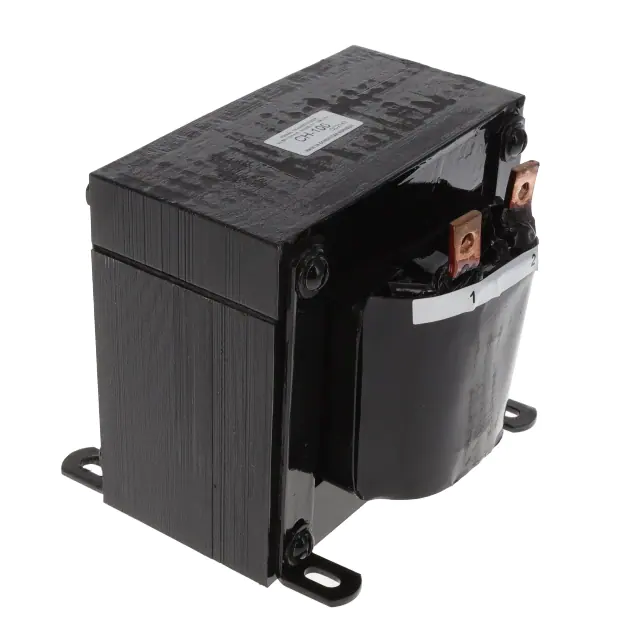

CH-100FIXED IND 500UH 100A 5 MOHM CHAS |
2,327 | 279.89 |
|
Datasheet |
- | Nonstandard | Box | Active | - | - | 500 µH | - | 100 A | - | Unshielded | 5mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.374" L x 6.252" W (161.90mm x 158.80mm) | 5.374" (136.50mm) |
|
|
195E75FIXED IND 2.5MH 75A 8 MOHM CHASS |
2,059 | 327.63 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 2.5 mH | ±15% | 75 A | - | Unshielded | 8mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.000" L x 6.630" W (152.40mm x 168.40mm) | 5.160" (131.06mm) |
|
|
195M20FIXED IND 20MH 20A 75 MOHM CHASS |
1,045 | 346.35 |
|
Datasheet |
195 | Nonstandard | Bulk | Active | - | - | 20 mH | ±15% | 20 A | - | Unshielded | 75mOhm | - | - | - | - | - | - | Chassis Mount | - | 6.000" L x 7.500" W (152.40mm x 190.50mm) | 5.000" (127.00mm) |
|
P0250.103NLFIXED IND 10UH 4.3A 31 MOHM SMD |
2,312 | 0.00 |
|
Datasheet |
P0250NL | Nonstandard | Tray | Active | Wirewound | - | 10 µH | ±15% | 4.3 A | 10A | Unshielded | 31mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.733" L x 0.596" W (18.62mm x 15.14mm) | 0.290" (7.36mm) |
 MHQ Series.jpg)
|
MHQ0402PSA3N7BT000FIXED IND 3.7NH 200MA 750MOHM SM |
3,509 | 0.10 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.7 nH | ±0.1nH | 200 mA | - | Shielded | 750mOhm Max | 10 @ 500MHz | 6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
.jpg)
|
LQG15WZ7N5H02DFIXED IND 7.5NH 600MA 0.16OHM SM |
2,719 | 0.15 |
|
Datasheet |
LQG15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Air | 7.5 nH | ±3% | 600 mA | - | Unshielded | 160mOhm Max | - | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.020" (0.51mm) |
|
|
MHQ0402PSA1N4BT000FIXED IND 1.4NH 400MA 300MOHM SM |
2,094 | 0.10 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.4 nH | ±0.1nH | 400 mA | - | Shielded | 300mOhm Max | 10 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MHQ0402PSA1N2BT000FIXED IND 1.2NH 500MA 200MOHM SM |
4,295 | 0.10 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 1.2 nH | ±0.1nH | 500 mA | - | Shielded | 200mOhm Max | 10 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
MHQ0402PSA2N1BT000FIXED IND 2.1NH 400MA 400MOHM SM |
2,385 | 0.10 |
|
Datasheet |
MHQ-PSA | 01005 (0402 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.1 nH | ±0.1nH | 400 mA | - | Shielded | 400mOhm Max | 10 @ 500MHz | 8GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | - | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
