Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RLB0913-4R7KFIXED IND 4.7UH 4A 30 MOHM TH |
1,139 | 0.81 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 4 A | 4.3A | Unshielded | 30mOhm | 20 @ 7.96MHz | 51MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|
|
RLB0913-6R8KFIXED IND 6.8UH 3.65A 35 MOHM TH |
1,072 | 0.81 |
|
Datasheet |
RLB0913 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 3.65 A | 3.7A | Unshielded | 35mOhm | 20 @ 7.96MHz | 29MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.492" (12.50mm) |
|

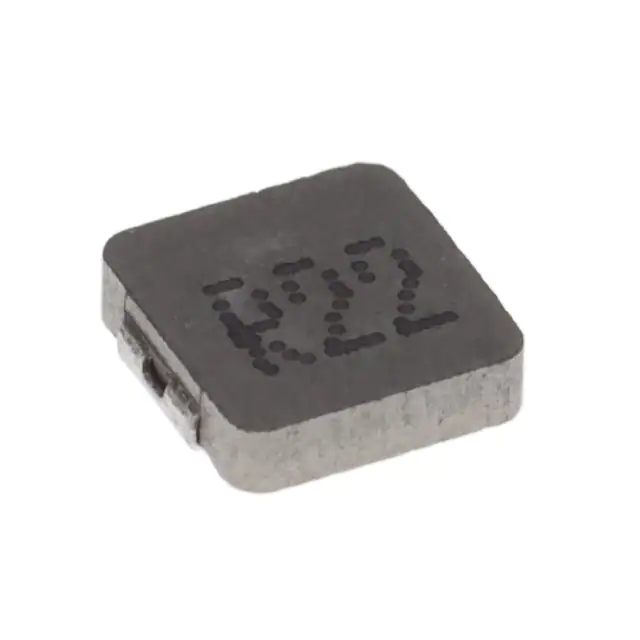

0412CDMCCDS-R22MCFIXED IND 220NH 9A 11 MOHM SMD |
83,050 | 0.86 |
|
Datasheet |
0412CDMCC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 220 nH | ±20% | 9 A | 12A | Shielded | 11mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.165" W (4.40mm x 4.20mm) | 0.047" (1.20mm) |
|
DFE2HCAH2R2MJ0LFIXED IND 2.2UH 1.9A 101MOHM SMD |
29,171 | 0.72 |
|
Datasheet |
DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 2.2 µH | ±20% | 1.9 A | 2.5A | Shielded | 101mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
AIAP-02-102KFIXED IND 1MH 400MA 2.3 OHM TH |
20,410 | 0.88 |
|
Datasheet |
AIAP-02 | Axial | Bulk | Active | Wirewound | - | 1 mH | ±10% | 400 mA | - | Unshielded | 2.3Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.252" Dia x 0.551" L (6.40mm x 14.00mm) | - |
|

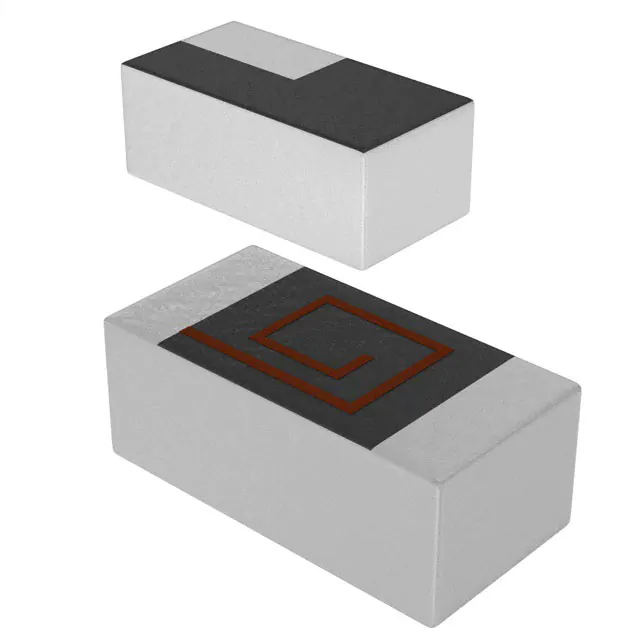

L06033R9CGSTRFIXED IND 3.9NH 500MA 120MOHM SM |
18,016 | 0.65 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.9 nH | ±0.2nH | 500 mA | - | Unshielded | 120mOhm Max | 25 @ 450MHz | 6.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06036R8CGSTRFIXED IND 6.8NH 300MA 300MOHM SM |
12,215 | 0.65 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 6.8 nH | ±0.2nH | 300 mA | - | Unshielded | 300mOhm Max | 23 @ 450MHz | 4.5GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|

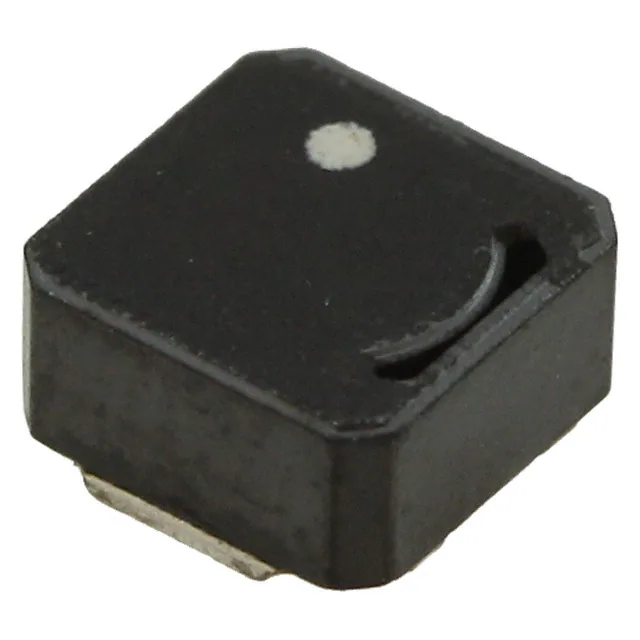

VLCF5028T-100M1R0-2FIXED IND 10UH 1.05A 83 MOHM SMD |
10,187 | 1.29 |
|
Datasheet |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.05 A | 1.05A | Shielded | 83mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.110" (2.80mm) |
|
|
DFE2HCAHR47MJ0LFIXED IND 470NH 4.5A 25 MOHM SMD |
8,886 | 0.72 |
|
Datasheet |
DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 4.5 A | 5.1A | Shielded | 25mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
104CDMCCDS-8R2MCFIXED IND 8.2UH 8.3A 27MOHM SMD |
7,771 | 1.04 |
|
Datasheet |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 8.2 µH | ±20% | 8.3 A | 12A | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|
|
104CDMCCDS-2R2MCFIXED IND 2.2UH 15A 7 MOHM SMD |
6,125 | 1.04 |
|
Datasheet |
104CDMC/DS | Nonstandard | Tape & Reel (TR) | Active | Molded | Metal | 2.2 µH | ±20% | 15 A | 21A | Shielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

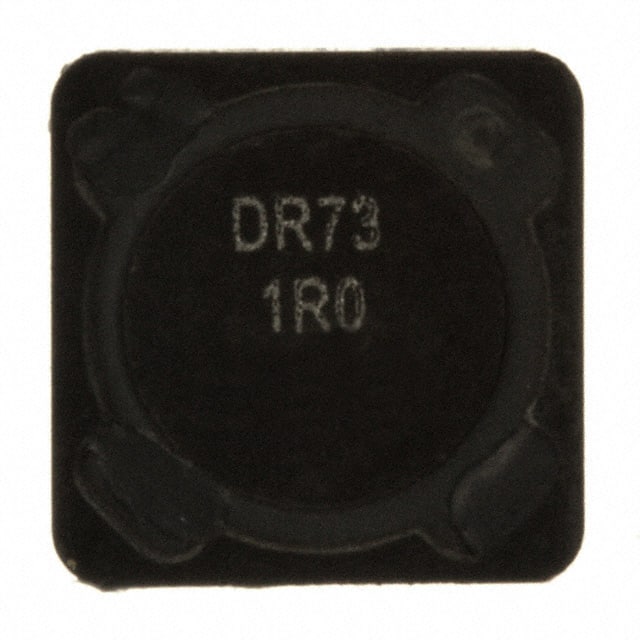

DR73-1R0-RFIXED IND 1UH 5.28A 10.2MOHM SMD |
5,672 | 0.97 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 5.28 A | 7.97A | Shielded | 10.2mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
|
L06032R7CGSTRFIXED IND 2.7NH 750MA 80MOHM SMD |
5,393 | 0.65 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 2.7 nH | ±0.2nH | 750 mA | - | Unshielded | 80mOhm Max | 21 @ 450MHz | 9GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
DFE2HCAH1R0MJ0LFIXED IND 1UH 3A 50 MOHM SMD |
5,205 | 0.72 |
|
Datasheet |
DFE2H | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 3 A | 3.4A | Shielded | 50mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
|
L06038R2CGSTRFIXED IND 8.2NH 300MA 350MOHM SM |
3,628 | 0.65 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 8.2 nH | ±0.2nH | 300 mA | - | Unshielded | 350mOhm Max | 23 @ 450MHz | 3.8GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
|
L06033R3CGSTRFIXED IND 3.3NH 750MA 80MOHM SMD |
3,433 | 0.65 |
|
Datasheet |
Accu-L® | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Non-Magnetic | 3.3 nH | ±0.2nH | 750 mA | - | Unshielded | 80mOhm Max | 24 @ 450MHz | 8.4GHz | - | -55°C ~ 125°C | 450 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.032" W (1.60mm x 0.81mm) | 0.028" (0.71mm) |
|
PA4341.222NLTFIXED IND 2.2UH 8A 20 MOHM SMD |
3,405 | 1.09 |
|
Datasheet |
PA4341.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.272" W (7.60mm x 6.90mm) | 0.118" (3.00mm) |
|
B82498F1392J000FIXED IND 3.9UH 95MA 3.6 OHM SMD |
1,256 | 0.35 |
|
Datasheet |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 95 mA | - | Unshielded | 3.6Ohm Max | 20 @ 7.96MHz | 230MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

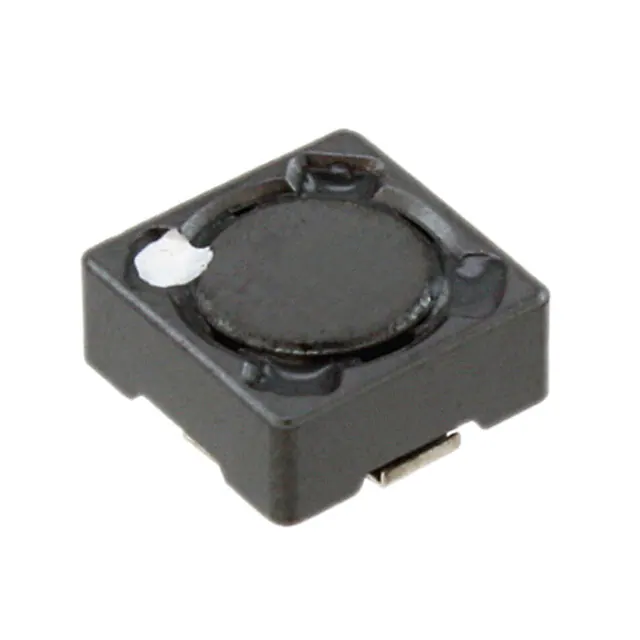

B82472G4224M000FIXED IND 220UH 400MA 1.1OHM SMD |
27,249 | 1.22 |
|
Datasheet |
B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | 300mA | Shielded | 1.1Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.138" (3.50mm) |
|
IHLP1616BZERR22M01FIXED IND 220NH 13A 8 MOHM SMD |
18,198 | 1.26 |
|
Datasheet |
IHLP-1616BZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 220 nH | ±20% | 13 A | 24A | Shielded | 8mOhm Max | - | 151MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
