Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMRM00101040100MA1IND 10UH SHLD 20% 6.5A |
9,585 | 0.00 |
|
Datasheet |
AMRM00101040A1 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 6.5 A | 7A | Unshielded | 30mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.402" W (11.60mm x 10.20mm) | 0.157" (4.00mm) |
|
TFM252012ALVA1R0MTAAFIXED IND 1UH 3.7A 42 MOHM SMD |
7,668 | 0.81 |
|
Datasheet |
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 3.7 A | 4.2A | Shielded | 42mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
MWSA0503S-2R2MTFIXED IND 2.2UH 7A 29 MOHM SMD |
4,554 | 1.06 |
|
Datasheet |
MWSA-S | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Alloy Powder | 2.2 µH | ±20% | 7 A | 7A | Shielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.205" W (5.40mm x 5.20mm) | 0.118" (3.00mm) |
|

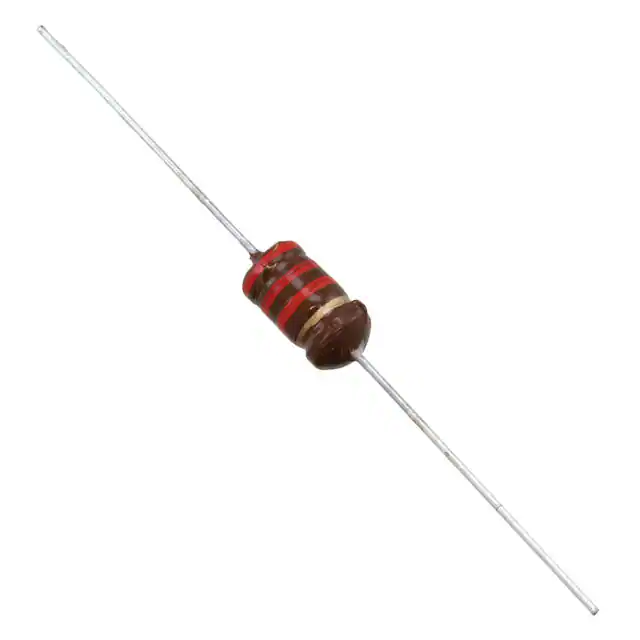

B82145A1225J000FIXED IND 2.2MH 250MA 8 OHM TH |
3,836 | 0.92 |
|
Datasheet |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 250 mA | - | Unshielded | 8Ohm Max | 60 @ 252kHz | 800kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|
74405031047FIXED IND 4.7UH 1.2A 235MOHM SMD |
2,804 | 0.77 |
|
Datasheet |
WE-LQSH | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.2 A | 2.5A | Shielded | 235mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3012 | 0.118" L x 0.106" W (3.00mm x 2.70mm) | 0.047" (1.20mm) |
|
WPN4020H100MTFIXED IND 10UH 2A 216 MOHM SMD |
2,121 | 0.84 |
|
Datasheet |
WPN | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 3.5A | Shielded | 216mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
SRN8040TA-4R7MFIXED IND 4.7UH 5.8A 19.5MOHM SM |
50,776 | 0.86 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5.8 A | 6.7A | Shielded | 19.5mOhm | 15 @ 1MHz | 38MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
|
SRN8040TA-220MFIXED IND 22UH 2.9A 73 MOHM SMD |
37,988 | 0.86 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 2.9 A | 3.1A | Shielded | 73mOhm | 12 @ 1MHz | 18MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|

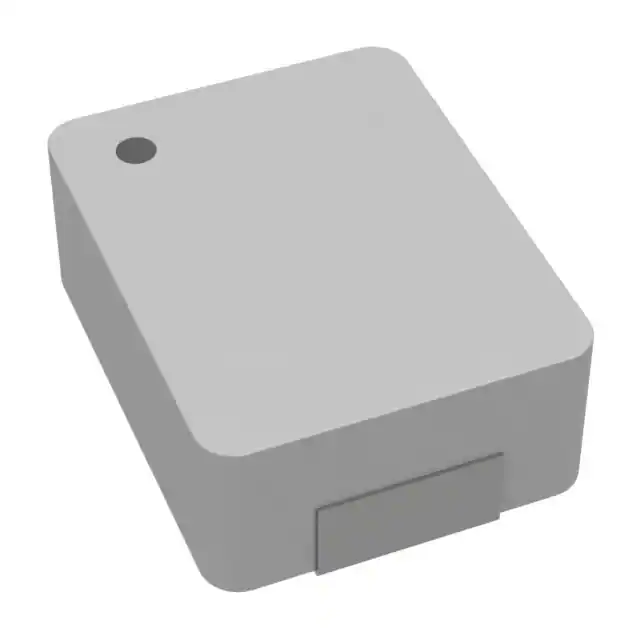

HMLQ32251B-2R2MSFIXED IND 2.2UH 3.2A 85MOHM SMD |
25,879 | 0.73 |
|
Datasheet |
HMLQ32251B | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Metal | 2.2 µH | ±20% | 3.2 A | 3.6A | Shielded | 85mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
|
SRN8040TA-101MFIXED IND 100UH 1.2A 300MOHM SMD |
25,647 | 0.86 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.2 A | 1.45A | Shielded | 300mOhm | 10 @ 1MHz | 8MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|

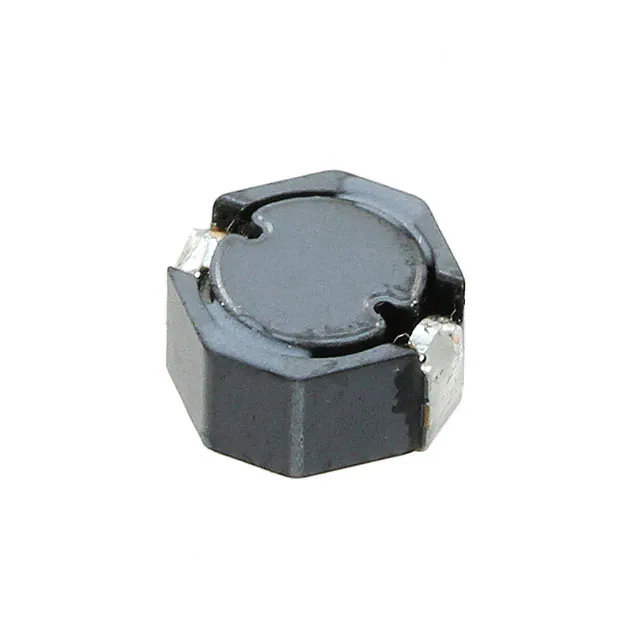

#A915AY-100M=P3FIXED IND 10UH 1.41A 0.09OHM SMD |
13,382 | 0.83 |
|
Datasheet |
D53LC | 2020 (5050 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.41 A | 1.33A | Shielded | 90mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | 2020 | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.118" (3.00mm) |
|

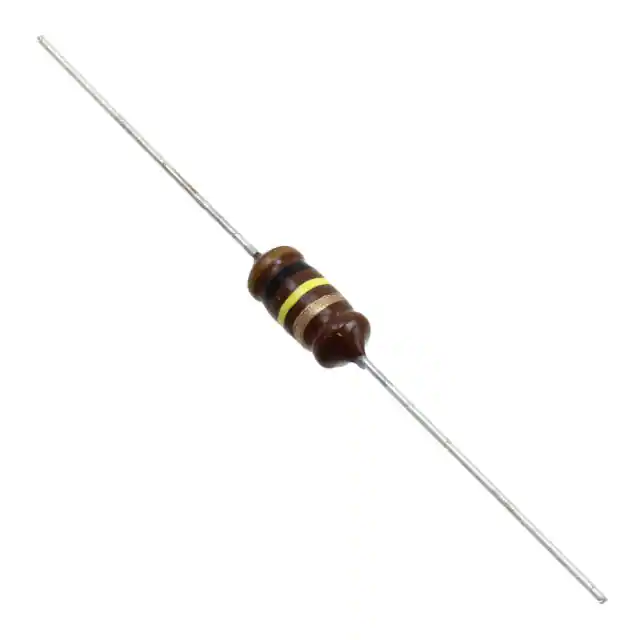

B82144A2107J000FIXED IND 100MH 20MA 420 OHM TH |
11,860 | 0.93 |
|
Datasheet |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±5% | 20 mA | - | Unshielded | 420Ohm Max | 30 @ 79.6kHz | 120kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
SRN8040TA-121MFIXED IND 120UH 1.1A 350MOHM SMD |
10,589 | 0.86 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 1.1 A | 1.3A | Shielded | 350mOhm | 10 @ 1MHz | 7.5MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
|
RLB9012-223KLFIXED IND 22MH 110MA 59.3 OHM TH |
9,559 | 0.86 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 110 mA | - | Unshielded | 59.3Ohm Max | 15 @ 79kHz | 210kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
DFE322520F-R47M=P2FIXED IND 0.47UH 8.5A |
8,049 | 0.00 |
|
Datasheet |
DFE322520F | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Wirewound | Metal | 470 nH | ±20% | 6 A | 8.5A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.079" (2.00mm) |
|
CDRH3D14/HPNP-100NCFIXED IND 10UH 670MA 440MOHM SMD |
7,713 | 0.86 |
|
Datasheet |
CDRH3D14/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±25% | 670 mA | 1A | Shielded | 440mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.059" (1.50mm) |
|
|
RLB9012-103KLFIXED IND 10MH 170MA 25.1 OHM TH |
5,326 | 0.86 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 170 mA | - | Unshielded | 25.1Ohm Max | 15 @ 79kHz | 320kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-221KLFIXED IND 220UH 1A 650 MOHM TH |
4,368 | 0.86 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 1 A | - | Unshielded | 650mOhm Max | 20 @ 796kHz | 2.7MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
RLB9012-681KLFIXED IND 680UH 590MA 1.6 OHM TH |
4,252 | 0.86 |
|
Datasheet |
RLB9012 | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 590 mA | - | Unshielded | 1.6Ohm Max | 20 @ 796kHz | 1.6MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
SRN8040TA-221MFIXED IND 220UH 850MA 610MOHM SM |
3,738 | 0.86 |
|
Datasheet |
SRN8040TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 850 mA | 990mA | Shielded | 610mOhm | 10 @ 1MHz | 5.5MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.177" (4.50mm) |
