Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP1513CA-8R2MIND,16.5X15.5X12.7MM,8.2UH20%,26 |
4,250 | 5.66 |
|
Datasheet |
SRP1513CA | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 8.2 µH | ±20% | 26 A | 33A | Shielded | 5.74mOhm Max | 40 @ 100kHz | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.512" (13.00mm) |
|
CTX150-2-52-RFIXED IND 150UH 4.3A 71.9MOHM TH |
1,703 | 5.09 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 4.3 A | 4A | Unshielded | 71.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.205" Dia x 0.441" W (30.60mm x 11.20mm) | - |
|
AMPLA1707S-4R7MTFIXED IND 4.7UH 25A 5.5 MOHM SMD |
4,601 | 3.42 |
|
Datasheet |
AMPLA1707S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 4.7 µH | ±20% | 25 A | 50A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.693" L x 0.665" W (17.60mm x 16.90mm) | 0.276" (7.00mm) |
|
2300HT-391-H-RCFIXED IND 390UH 4.7A 130 MOHM TH |
2,765 | 4.03 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 390 µH | ±15% | 4.7 A | - | Shielded | 130mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
CTX500-1-52-RFIXED IND 500UH 1.7A 361 MOHM TH |
3,714 | 5.11 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 1.7 A | 1.9A | Unshielded | 361mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.945" Dia x 0.602" W (24.00mm x 15.30mm) | - |
|

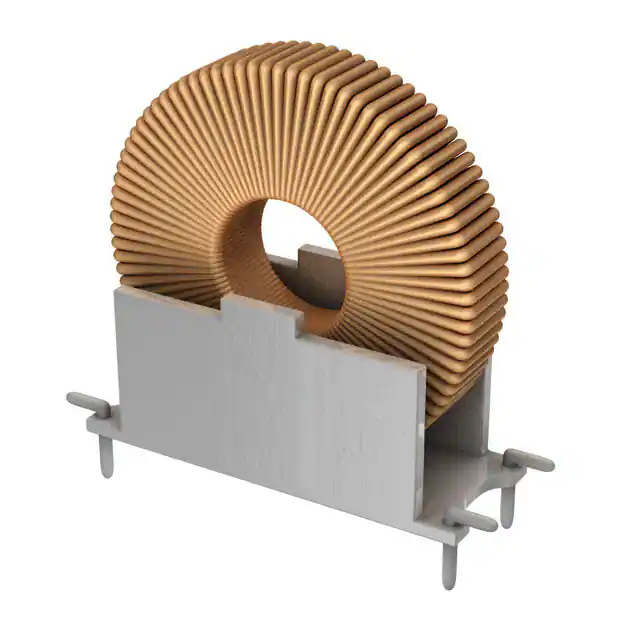

CTX10-5-52M-RFIXED IND 10UH 8.7A 10.4 MOHM TH |
1,279 | 5.00 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 8.7 A | 11.1A | Unshielded | 10.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.894" (22.70mm) |
|
|
B82559A5602A033ERU33 PTH FLAT WIRE INDUCTOR 6.0 |
2,250 | 0.00 |
|
Datasheet |
ERU33 - Flat Wire Inductor | Nonstandard | Tray | Active | Wirewound | Ferrite | 6 µH | ±12% | 50 A | 62A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Through Hole | - | 1.299" L x 1.154" W (33.00mm x 29.30mm) | 0.606" (15.40mm) |
|
|
2890R-08KFIXED IND 3.3UH 1.19A 305MOHM TH |
2,416 | 2.58 |
|
Datasheet |
2890R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 3.3 µH | ±10% | 1.19 A | - | Unshielded | 305mOhm Max | 60 @ 7.9MHz | 100MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.280" Dia x 0.900" L (7.11mm x 22.86mm) | - |
|
|
P0151NLTFIXED IND 220UH 810MA 673MOHM SM |
4,329 | 2.88 |
|
Datasheet |
Bobcat | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 220 µH | - | 810 mA | - | Unshielded | 673mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
|
CTX20-5-52M-RFIXED IND 20UH 7.8A 26 MOHM TH |
1,396 | 6.25 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7.8 A | 9.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.004" (25.50mm) |
|
|
1330R-36JFIXED IND 4.7UH 239MA 1.2OHM SMD |
4,995 | 2.51 |
|
Datasheet |
1330R | 2-SMD | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±5% | 239 mA | - | Unshielded | 1.2Ohm Max | 45 @ 7.9MHz | 75MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Surface Mount | - | 0.313" L x 0.115" W (7.95mm x 2.92mm) | 0.145" (3.68mm) |
|
|
CTX500-1-52M-RFIXED IND 500UH 1.7A 361 MOHM TH |
3,789 | 5.22 |
|
Datasheet |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 1.7 A | 1.9A | Unshielded | 361mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 0.984" (25.00mm) |
|
|
LHDM003101ARDV0EDUST CHOKE COIL |
2,961 | 0.00 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | 140 µH | ±20% | 3 A | - | Unshielded | 58mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 1.063" Dia x 0.551" W (27.00mm x 14.00mm) | - |
|
|
LHDM005300AQDV0EDUST CHOKE COIL |
2,437 | 0.00 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | 46 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.965" Dia x 0.571" W (24.50mm x 14.50mm) | - |
|
CTX10-7-52LP-RFIXED IND 10UH 11.4A 8 MOHM TH |
2,302 | 5.49 |
|
Datasheet |
CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 11.4 A | 13.5A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.012" Dia (25.70mm) | 0.709" (18.00mm) |
|
S1008R-751JFIXED IND 750NH 735MA 210MOHM SM |
3,201 | 2.91 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 750 nH | ±5% | 735 mA | - | Shielded | 210mOhm Max | 40 @ 25MHz | 163MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
LHDM003800AQDV0EDUST CHOKE COIL |
4,100 | 0.00 |
|
Datasheet |
DM | Vertical, No Base, 2 PC Pin | Bulk | Active | Toroidal | Sendust | 120 µH | ±20% | 3 A | - | Unshielded | 48mOhm Max | - | - | - | -40°C ~ 120°C | 100 kHz | - | Through Hole | Vertical, No Base, 2 PC Pin | 0.945" Dia x 0.531" W (24.00mm x 13.50mm) | - |
|
|
S1008-103KFIXED IND 10UH 230MA 2.1 OHM SMD |
1,896 | 5.97 |
|
Datasheet |
S1008 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 230 mA | - | Shielded | 2.1Ohm Max | 30 @ 7.9MHz | 29MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
RL-1256-3-2200FIXED IND 2200UH 1.3A 705MOHM TH |
4,181 | 0.00 |
|
Datasheet |
RL-1256 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 2.2 mH | ±10% | 1.3 A | 2.5A | Unshielded | 1.02Ohm Max | - | - | - | -40°C ~ 130°C | 10 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.850" (21.59mm) |
|
2300HT-331-V-RCFIXED IND 330UH 4.9A 100 MOHM TH |
2,185 | 4.03 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 330 µH | ±15% | 4.9 A | - | Shielded | 100mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
