Home > Products > Inductors, Coils, Chokes > Fixed Inductors

Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
CTX150-2-52M-R FIXED IND 150UH 4.3A 71.9MOHM TH Eaton - Electronics Division	2,216	5.89	RFQ	Datasheet	CTX	Radial, Vertical, 4 Leads (Open)	Bulk	Active	Toroidal	Iron Powder	150 µH	±20%	4.3 A	4A	Unshielded	71.9mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.220" L x 0.630" W (31.00mm x 16.00mm)	1.280" (32.50mm)
SWF-0.90-330 FIXED IND 330UH 900MA 740MOHM TH Amgis, LLC	1,539	0.00	RFQ	Datasheet	SW	Radial, Vertical Cylinder	Bulk	Active	Toroidal	Iron Powder	330 µH	±20%	900 mA	-	Unshielded	740mOhm Max	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	0.669" Dia (17.00mm)	0.492" (12.50mm)
CTX10-7-52M-R FIXED IND 10UH 11.4A 8 MOHM TH Eaton - Electronics Division	4,049	6.97	RFQ	Datasheet	CTX	Radial, Vertical, 4 Leads (Open)	Bulk	Active	Toroidal	Iron Powder	10 µH	±20%	11.4 A	13.5A	Unshielded	8mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.394" L x 0.854" W (35.40mm x 21.70mm)	1.051" (26.70mm)
HMP1710-6R8 IND SMD 6.8UH ASSEMBLY CHOKE Delta Electronics/Cyntec	2,628	0.00	RFQ	Datasheet	HMP1710	Nonstandard	Tape & Reel (TR)	Active	-	-	6.8 µH	±20%	14 A	25A	Unshielded	5.6mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.689" L x 0.657" W (17.50mm x 16.70mm)	0.394" (10.00mm)
HMP1710M-2R0 IND SMD 2.0UH ASSEMBLY CHOKE Delta Electronics/Cyntec	3,991	0.00	RFQ	Datasheet	HMP1710	Nonstandard	Tape & Reel (TR)	Active	-	-	2 µH	±20%	54 A	37A	Unshielded	1.3mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.689" L x 0.657" W (17.50mm x 16.70mm)	0.394" (10.00mm)
HMP1710-4R7 IND SMD 4.7UH ASSEMBLY CHOKE Delta Electronics/Cyntec	3,073	0.00	RFQ	Datasheet	HMP1710	Nonstandard	Tape & Reel (TR)	Active	-	-	4.7 µH	±20%	22 A	25A	Unshielded	2.9mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.689" L x 0.657" W (17.50mm x 16.70mm)	0.394" (10.00mm)
HMP1710-3R3 IND SMD 3.3UH ASSEMBLY CHOKE Delta Electronics/Cyntec	2,391	0.00	RFQ	Datasheet	HMP1710	Nonstandard	Tape & Reel (TR)	Active	-	-	3.3 µH	±20%	25 A	27.5A	Unshielded	1.8mOhm Max	-	-	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.689" L x 0.657" W (17.50mm x 16.70mm)	0.394" (10.00mm)
CTX22-15557 FIXED IND 1MH 1.3A 470 MOHM SMD Eaton - Electronics Division	1,737	0.00	RFQ	Datasheet	PFC	10-SMD, Gull Wing	Bulk	Obsolete	Toroidal	Ferrite	1 mH	-	1.3 A	-	Unshielded	470mOhm Max	-	-	-	-20°C ~ 105°C	100 kHz	-	Surface Mount	10-SMT	1.252" L x 1.063" W (31.80mm x 27.00mm)	0.516" (13.10mm)
CTX750-1-52LP-R FIXED IND 750UH 1.8A 434 MOHM TH Eaton - Electronics Division	4,511	6.46	RFQ	Datasheet	CTX	Radial, Horizontal (Open)	Bulk	Active	Toroidal	Iron Powder	750 µH	±20%	1.8 A	2.4A	Unshielded	434mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.173" Dia (29.80mm)	0.685" (17.40mm)

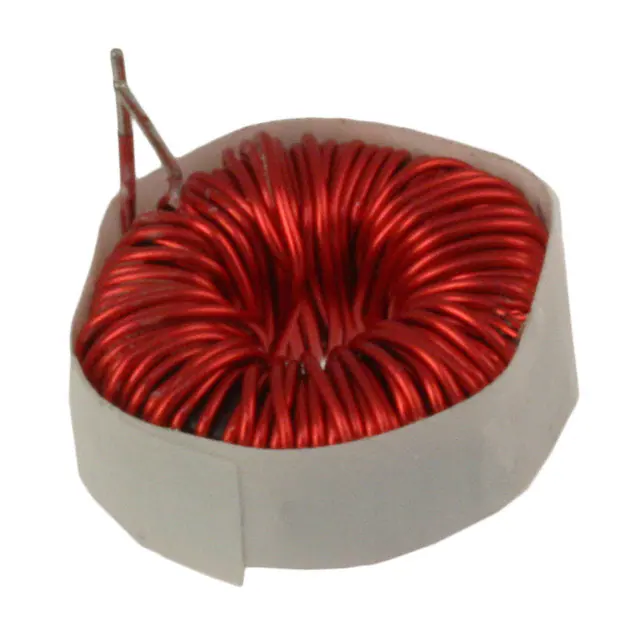

CTX16-18405-R FIXED IND 140UH 3.2A 190 MOHM TH Eaton - Electronics Division	4,347	0.00	RFQ	Datasheet	PFC	Radial, Horizontal, 4 Leads (Open)	Bulk	Obsolete	Toroidal	-	140 µH	-	3.2 A	-	Unshielded	190mOhm Max	-	-	-	-20°C ~ 105°C	-	-	Through Hole	-	0.827" Dia (21.00mm)	0.433" (11.00mm)
F1F5-1707-4R7M HIGH POWER INDUCTOR4.7UH 27A 5.4 Signal Transformer	3,202	0.00	RFQ	-	*	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F1F5-1707-3R3M HIGH POWER INDUCTOR3.3UH 32A 3.1 Signal Transformer	1,971	0.00	RFQ	-	*	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
F1F5-1707-6R8M HIGH POWER INDUCTOR6.8UH 21A 7.5 Signal Transformer	3,247	0.00	RFQ	-	*	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTX750-1-52-R FIXED IND 750UH 1.8A 434 MOHM TH Eaton - Electronics Division	1,325	6.79	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	750 µH	±20%	1.8 A	2.4A	Unshielded	434mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.173" Dia x 0.685" W (29.80mm x 17.40mm)	-
CTX1000-1-52LPR FIXED IND 1MH 1.5A 638 MOHM TH Eaton - Electronics Division	3,883	6.83	RFQ	Datasheet	CTX	Radial, Horizontal (Open)	Bulk	Active	Toroidal	Iron Powder	1 mH	±20%	1.5 A	2.1A	Unshielded	638mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.173" Dia (29.80mm)	1.228" (31.20mm)
CTX1000-1-52-R FIXED IND 1MH 1.5A 638 MOHM TH Eaton - Electronics Division	2,442	6.51	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	1 mH	±20%	1.5 A	2.1A	Unshielded	638mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.173" Dia x 0.461" W (29.80mm x 11.70mm)	-
CTX20-7-52-R FIXED IND 20UH 11.4A 11 MOHM TH Eaton - Electronics Division	3,562	6.92	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	20 µH	±20%	11.4 A	14.5A	Unshielded	11mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.276" Dia x 0.780" W (32.40mm x 19.80mm)	-
CTX250-2-52-R FIXED IND 250UH 4.2A 83.3MOHM TH Eaton - Electronics Division	1,485	6.50	RFQ	Datasheet	CTX	Radial, Vertical (Open)	Bulk	Active	Toroidal	Iron Powder	250 µH	±20%	4.2 A	4.2A	Unshielded	83.3mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.228" Dia x 0.748" W (31.20mm x 19.00mm)	-
CTX20-7-52M-R FIXED IND 20UH 11.4A 11 MOHM TH Eaton - Electronics Division	3,738	6.50	RFQ	Datasheet	CTX	Radial, Vertical, 4 Leads (Open)	Bulk	Active	Toroidal	Iron Powder	20 µH	±20%	11.4 A	14.5A	Unshielded	11mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.394" L x 0.854" W (35.40mm x 21.70mm)	1.346" (34.20mm)
CTX500-2-52M-R FIXED IND 500UH 3.1A 183 MOHM TH Eaton - Electronics Division	1,234	6.50	RFQ	Datasheet	CTX	Radial, Vertical, 4 Leads (Open)	Bulk	Active	Toroidal	Iron Powder	500 µH	±20%	3.1 A	3.3A	Unshielded	183mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	1.220" L x 0.630" W (31.00mm x 16.00mm)	1.512" (38.40mm)

Total 147749 Record«Prev 1... 2210 2211 2212 221322142215 2216 2217...7388 Next»
