Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744045180FIXED IND 18UH 680MA 600MOHM SMD |
7,510 | 0.85 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 680 mA | 1.1A | Unshielded | 600mOhm Max | 42 @ 1MHz | 22MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
.jpg)
|
74479763168FIXED IND 680NH 1A 225 MOHM SMD |
7,082 | 0.54 |
|
Datasheet |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 680 nH | ±20% | 1 A | 950mA | Shielded | 225mOhm Max | 10 @ 1MHz | 190MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
CLF5030NIT-330M-DFIXED IND 33UH 880MA 372MOHM SMD |
6,712 | 1.00 |
|
Datasheet |
CLF-NI-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 880 mA | 940mA | Shielded | 372mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.118" (3.00mm) |
|
B82432T1334K000FIXED IND 330UH 120MA 11 OHM SMD |
5,462 | 0.96 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 120 mA | - | Unshielded | 11Ohm Max | 20 @ 796kHz | 4.1MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|

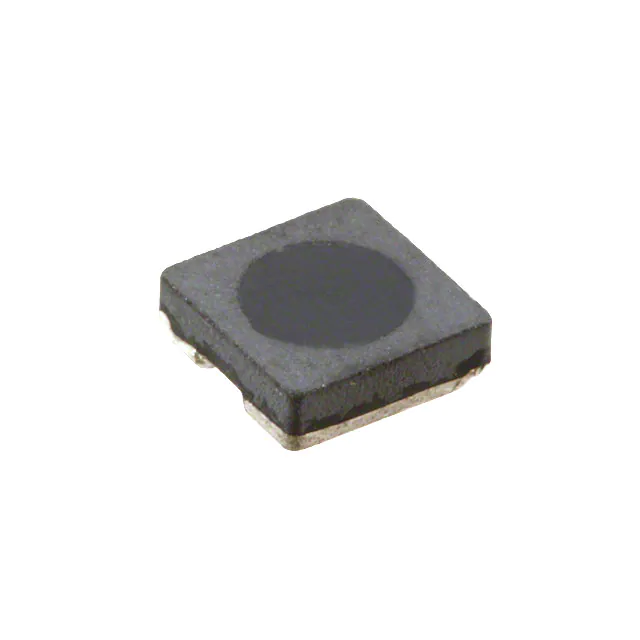

SRR3011-100YLFIXED IND 10UH 650MA 280MOHM SMD |
3,825 | 0.94 |
|
Datasheet |
SRR3011 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 650 mA | 500mA | Shielded | 280mOhm Max | 18 @ 2.52MHz | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.051" (1.30mm) |
|
1231AS-H-150M=P3FIXED IND 15UH 1.1A 222 MOHM SMD |
3,775 | 0.58 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 800mA | Shielded | 222mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.146" L x 0.154" W (3.70mm x 3.90mm) | 0.071" (1.80mm) |
|
744045330FIXED IND 33UH 430MA 1.1 OHM SMD |
2,192 | 0.85 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 430 mA | 850mA | Unshielded | 1.1Ohm Max | 55 @ 1MHz | 18MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|

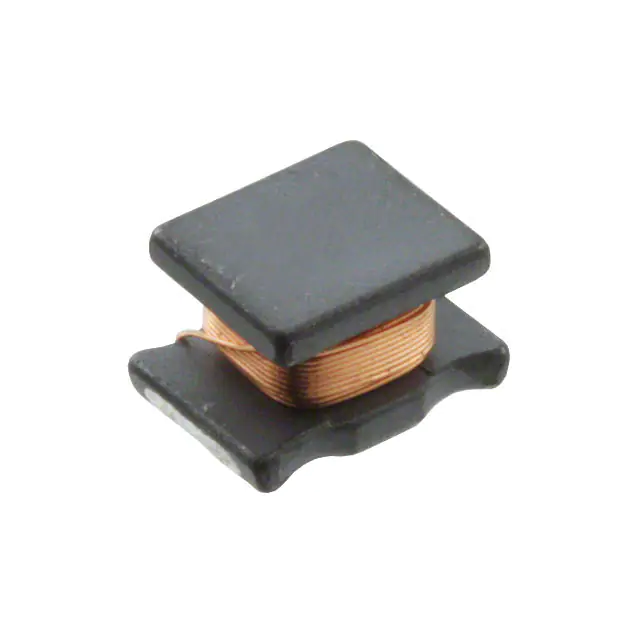

744045210FIXED IND 100UH 270MA 2.5OHM SMD |
2,184 | 0.85 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 270 mA | 450mA | Unshielded | 2.5Ohm Max | 60 @ 796kHz | 10MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
|
744045150FIXED IND 15UH 730MA 500MOHM SMD |
1,677 | 0.85 |
|
Datasheet |
WE-LQ | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 730 mA | 1.24A | Unshielded | 500mOhm Max | 45 @ 1MHz | 26MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.114" (2.90mm) |
|
74479775222AFIXED IND 2.2UH 1A 250 MOHM SMD |
1,550 | 0.00 |
|
Datasheet |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 1 A | 700mA | Unshielded | 250mOhm Max | 23 @ 1MHz | 50MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | 0.039" (1.00mm) |
|
CDRH3D16/HPNP-2R2NCFIXED IND 2.2UH 2.3A 59 MOHM SMD |
168,667 | 1.00 |
|
Datasheet |
CDRH3D16/HP | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±30% | 2.3 A | 1.75A | Shielded | 59mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|

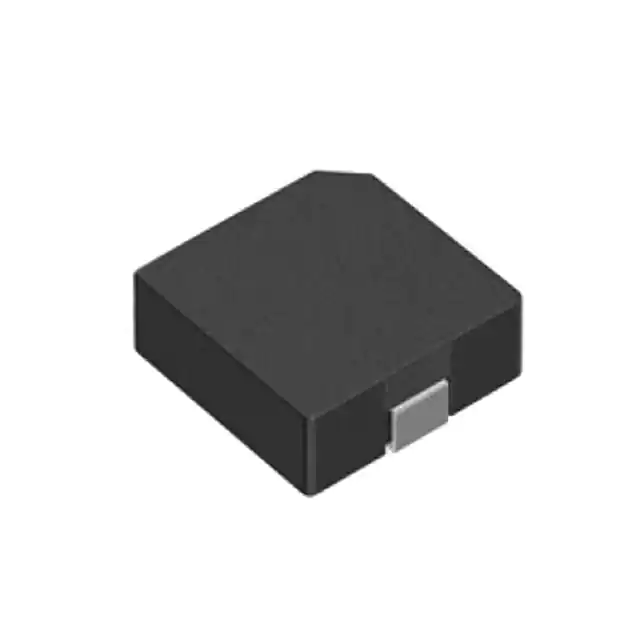

SPM10040XT-R18MFIXED IND 180NH 38A 0.55MOHM SMD |
31,155 | 1.47 |
|
Datasheet |
SPM-XT | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 180 nH | ±20% | 38 A | 46A | Shielded | 0.55mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.157" (4.00mm) |
|

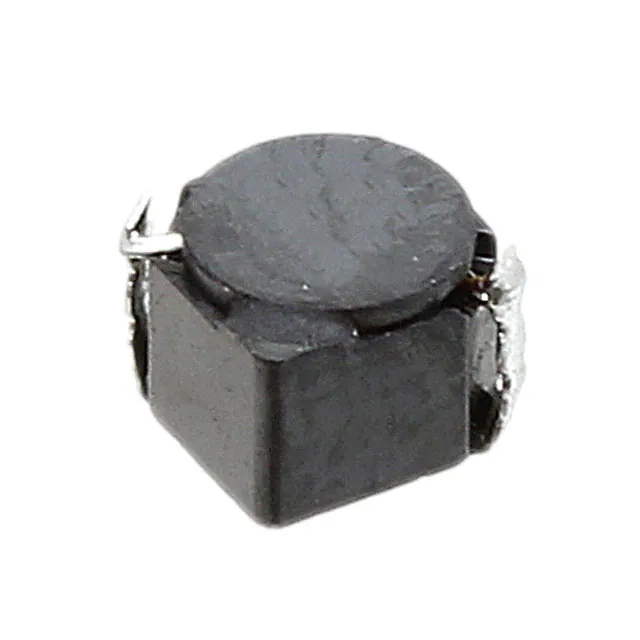

CDRH3D28NP-100NCFIXED IND 10UH 1.18A 145MOHM SMD |
19,138 | 1.00 |
|
Datasheet |
CDRH3D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±30% | 1.18 A | 1.05A | Shielded | 145mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
|
CDRH3D28NP-330NCFIXED IND 33UH 630MA 481MOHM SMD |
18,950 | 1.00 |
|
Datasheet |
CDRH3D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 630 mA | 580mA | Shielded | 481mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.118" (3.00mm) |
.jpg)
|
74479774210FIXED IND 1UH 1.1A 190 MOHM SMD |
14,381 | 0.86 |
|
Datasheet |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.1 A | 500mA | Shielded | 190mOhm | 12 @ 1MHz | 100MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
CDRH6D28NP-6R0NCFIXED IND 6UH 2.25A 35 MOHM SMD |
10,971 | 0.95 |
|
Datasheet |
CDRH6D28 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6 µH | ±30% | 2.25 A | - | Shielded | 35mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.264" L x 0.264" W (6.70mm x 6.70mm) | 0.118" (3.00mm) |
|
B82432C1224K000FIXED IND 220UH 115MA 7.5OHM SMD |
10,347 | 1.01 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 115 mA | - | Unshielded | 7.5Ohm Max | 30 @ 796kHz | 6MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
74479774222FIXED IND 2.2UH 700MA 340MOHM SM |
9,498 | 0.86 |
|
Datasheet |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 µH | ±20% | 700 mA | 250mA | Shielded | 340mOhm | 15 @ 1MHz | 40MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|
B82432C1154K000FIXED IND 150UH 130MA 6.1OHM SMD |
8,490 | 1.01 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 130 mA | - | Unshielded | 6.1Ohm Max | 30 @ 796kHz | 7MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
ASPI-0630HI-2R2M-T15FIXED IND 2.2UH 8A 20 MOHM SMD |
5,952 | 0.96 |
|
Datasheet |
ASPI-0630HI | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.262" W (7.20mm x 6.65mm) | 0.118" (3.00mm) |
