Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82432C1473K000FIXED IND 47UH 210MA 2.3 OHM SMD |
13,609 | 1.01 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 210 mA | - | Unshielded | 2.3Ohm Max | 30 @ 2.52MHz | 12MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
NS10145T681MNAFIXED IND 680UH 420MA 1.884 OHM |
5,076 | 0.98 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 500mA | Shielded | 1.884Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
NS10145T471MNAFIXED IND 470UH 520MA 1.236 OHM |
4,905 | 0.98 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 520 mA | 610mA | Shielded | 1.236Ohm Max | - | 2.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
SDR1006-471KLFIXED IND 470UH 420MA 1.48OHM SM |
4,124 | 1.00 |
|
Datasheet |
SDR1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 420 mA | 800mA | Unshielded | 1.48Ohm Max | 12 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
DR74-3R3-RFIXED IND 3.3UH 3.94A 18.3 MOHM |
4,023 | 0.94 |
|
Datasheet |
DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3.94 A | 5.4A | Shielded | 18.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.171" (4.35mm) |
|
|

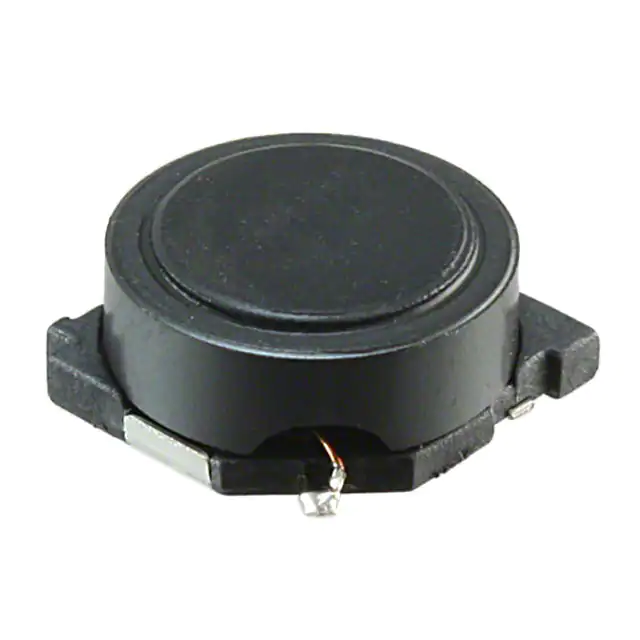

NS10145T221MNAFIXED IND 220UH 780MA 582MOHM SM |
2,912 | 0.98 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 780 mA | 910mA | Shielded | 582mOhm Max | - | 4.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
SDR1005-680KLFIXED IND 68UH 1.2A 240 MOHM SMD |
2,631 | 0.99 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.2 A | 1.4A | Unshielded | 240mOhm Max | 24 @ 2.2MHz | 11MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
NS10145T102MNAFIXED IND 1MH 320MA 3.096OHM SMD |
2,561 | 0.98 |
|
Datasheet |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 320 mA | 410mA | Shielded | 3.096Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.191" (4.85mm) |
|
|
SDR1005-332KLFIXED IND 3.3MH 160MA 14 OHM SMD |
1,680 | 0.99 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 160 mA | 180mA | Unshielded | 14Ohm Max | 106 @ 128kHz | 1MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
|
SDR1005-151KLFIXED IND 150UH 800MA 590MOHM SM |
1,178 | 0.99 |
|
Datasheet |
SDR1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 800 mA | 1A | Unshielded | 590mOhm Max | 58 @ 87kHz | 6MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.197" (5.00mm) |
|
B82472G6222M000FIXED IND 2.2UH 3A 20 MOHM SMD |
10,409 | 1.48 |
|
Datasheet |
B82472G6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 3 A | 2.8A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
B82432T1472K000FIXED IND 4.7UH 800MA 220MOHM SM |
9,876 | 0.96 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 800 mA | - | Unshielded | 220mOhm Max | 10 @ 7.96MHz | 40MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1104K000FIXED IND 100UH 200MA 3.5OHM SMD |
9,132 | 0.96 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 200 mA | - | Unshielded | 3.5Ohm Max | 20 @ 796kHz | 6.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1105K000FIXED IND 1MH 70MA 30 OHM SMD |
5,242 | 0.96 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 70 mA | - | Unshielded | 30Ohm Max | 20 @ 252kHz | 2.3MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
B82432T1153K000FIXED IND 15UH 600MA 500MOHM SMD |
4,381 | 0.96 |
|
Datasheet |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 600 mA | - | Unshielded | 500mOhm Max | 10 @ 2.52MHz | 20MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SLF6025T-100M1R0-PFFIXED IND 10UH 1.3A 68.76MOHM SM |
4,377 | 0.92 |
|
Datasheet |
SLF | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.3 A | 1A | Shielded | 68.76mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.106" (2.70mm) |
|
TMS322512ALM-1R5MTAAFIXED IND 1.5UH 3.2A 0.057OHM SM |
3,544 | 0.00 |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 3.2 A | 4A | Shielded | 57mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
CR54NP-100MCFIXED IND 10UH 1.44A 100MOHM SMD |
3,541 | 0.92 |
|
Datasheet |
CR54 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.44 A | - | Unshielded | 100mOhm Max | - | 30.6MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.209" W (5.80mm x 5.30mm) | 0.191" (4.85mm) |
|
|
TMS322512ALM-100MTAAFIXED IND 10UH 1.2A 0.36OHM SMD |
2,922 | 0.00 |
|
Datasheet |
TMS-ALM | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 10 µH | ±20% | 1.2 A | 1.6A | Shielded | 360mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|

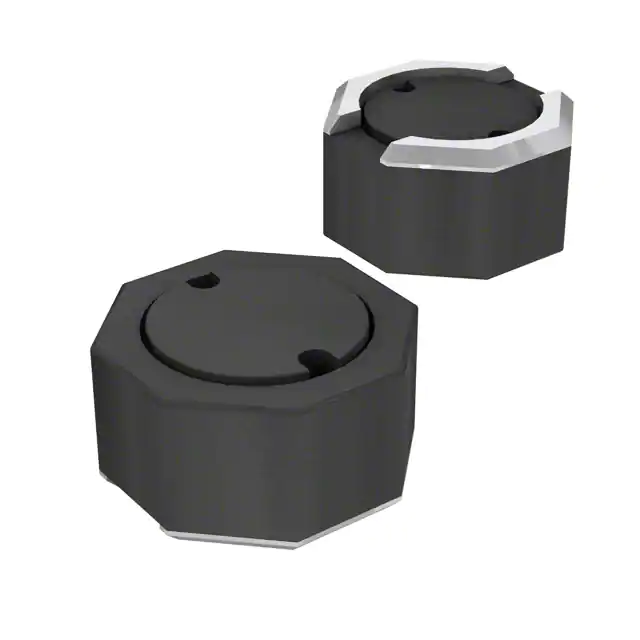

SRU2016-2R2YFIXED IND 2.2UH 1.6A 105MOHM SMD |
2,554 | 1.00 |
|
Datasheet |
SRU2016 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.6 A | 1A | Shielded | 105mOhm Max | 8 @ 7.96MHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.071" (1.80mm) |
