Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQW2UASR10J0CLFIXED IND 100NH 650MA 560MOHM SM |
1,920 | 0.24 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 100 nH | ±5% | 650 mA | - | Unshielded | 560mOhm Max | 60 @ 350MHz | 1GHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
.jpg)
|

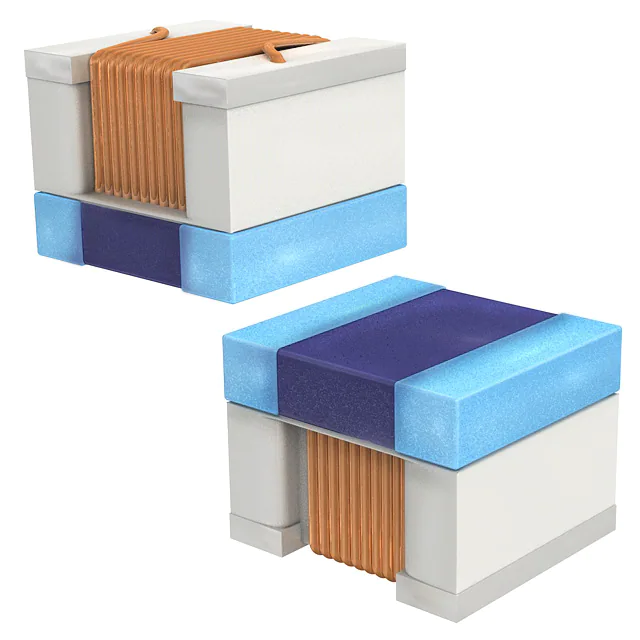

LQW2UAS2R2J0CLFIXED IND 2.2UH 280MA 2.8OHM SMD |
1,895 | 0.24 |
|
Datasheet |
LQW2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 2.2 µH | ±5% | 280 mA | - | Unshielded | 2.8Ohm Max | 28 @ 50MHz | 130MHz | - | -40°C ~ 85°C | 7.9 MHz | - | Surface Mount | 1008 | 0.103" L x 0.096" W (2.62mm x 2.45mm) | 0.080" (2.03mm) |
|
MLF2012E6R8JT000FIXED IND 6.8UH 15MA 650MOHM SMD |
1,853 | 0.22 |
|
Datasheet |
MLF | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 6.8 µH | ±5% | 15 mA | - | Shielded | 650mOhm Max | 50 @ 4MHz | 40MHz | - | -55°C ~ 125°C | 4 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
-1,80mm.jpg)
|
CB2016T3R3MFIXED IND 3.3UH 800MA 260MOHM SM |
1,834 | 0.24 |
|
Datasheet |
CB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 800 mA | 400mA | Unshielded | 260mOhm Max | - | 55MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
NLV32T-271J-EFDFIXED IND 270UH 45MA 28 OHM SMD |
1,736 | 0.31 |
|
Datasheet |
NLV-EFD | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 45 mA | - | Unshielded | 28Ohm Max | 20 @ 796kHz | 6MHz | AEC-Q200 | -40°C ~ 105°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
LQW18AS5N6J0ZDFIXED IND 5.6NH 700MA 75MOHM SMD |
1,670 | 0.23 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 5.6 nH | ±5% | 700 mA | - | Unshielded | 75mOhm Max | 26 @ 250MHz | 4.76GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MAKK2016T1R5MFIXED IND 1.5UH 1.65A 130MOHM SM |
1,660 | 0.23 |
|
Datasheet |
MCOIL™, MA | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1.5 µH | ±20% | 1.65 A | 1.6A | Shielded | 130mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
LQW18AS36NG0ZDFIXED IND 36NH 600MA 250MOHM SMD |
1,650 | 0.24 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 36 nH | ±2% | 600 mA | - | Unshielded | 250mOhm Max | 37 @ 250MHz | 2.08GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
LQM18NNR33K00DFIXED IND 330NH 35MA 850MOHM SMD |
1,541 | 0.19 |
|
Datasheet |
LQM18 | 0603 (1608 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | Ferrite | 330 nH | ±10% | 35 mA | - | Shielded | 850mOhm Max | 15 @ 25MHz | 125MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
CB2016T100KFIXED IND 10UH 520MA 650MOHM SMD |
1,388 | 0.24 |
|
Datasheet |
CB | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 520 mA | 250mA | Unshielded | 650mOhm Max | - | 32MHz | - | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.071" (1.80mm) |
|
LQW15AN3N5C8ZDFIXED IND 3.5NH 1.95A 0.03OHM SM |
1,345 | 0.24 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 3.5 nH | ±0.2nH | 1.95 A | - | Unshielded | 30mOhm Max | 30 @ 250MHz | 10GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN7N4J8ZDFIXED IND 7.4NH 1.7A 0.05OHM SMD |
1,296 | 0.23 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 7.4 nH | ±5% | 1.7 A | - | Unshielded | 50mOhm Max | 30 @ 250MHz | 7GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
.jpg)
|
744786033AFIXED IND 3.3NH 600MA 150MOHM SM |
1,280 | 0.21 |
|
Datasheet |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.3 nH | ±0.3nH | 600 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
-0,95mm.jpg)
|
LBMF1608T4R7MFIXED IND 4.7UH 110MA 240MOHM SM |
1,275 | 0.24 |
|
Datasheet |
LB, MF Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 110 mA | - | Unshielded | 240mOhm | - | 45MHz | - | -25°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
-BR-Series.jpg)
|
BRC2518T330KFIXED IND 33UH 390MA 1.105OHM SM |
1,146 | 0.32 |
|
Datasheet |
BR, C Type | 1007 (2518 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 390 mA | 560mA | Unshielded | 1.105Ohm Max | - | 8MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1007 (2518 Metric) | 0.098" L x 0.071" W (2.50mm x 1.80mm) | 0.079" (2.00mm) |
|
|
LQW18AS4N7J0ZDFIXED IND 4.7NH 700MA 116MOHM SM |
1,131 | 0.23 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 4.7 nH | ±5% | 700 mA | - | Unshielded | 116mOhm Max | 20 @ 250MHz | 5.8GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18AS23NG0ZDFIXED IND 23NH 700MA 190MOHM SMD |
1,111 | 0.24 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 23 nH | ±2% | 700 mA | - | Unshielded | 190mOhm Max | 38 @ 250MHz | 2.85GHz | AEC-Q200 | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
|
LQW18ASR20G0ZDFIXED IND 200NH 200MA 1.98OHM SM |
1,055 | 0.24 |
|
Datasheet |
LQW18 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Wirewound | Non-Magnetic | 200 nH | ±2% | 200 mA | - | Unshielded | 1.98Ohm Max | 25 @ 100MHz | 900MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
0402HP-220EHTSFIXED IND 22NH 800MA 160MOHM SMD |
50,890 | 0.25 |
|
Datasheet |
0402HP | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±3% | 800 mA | - | Unshielded | 160mOhm | - | 3.3GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
MAMK2520TR47MFIXED IND 470NH 3.4A 39 MOHM SMD |
50,854 | 0.25 |
|
Datasheet |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.4 A | 4.2A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
