Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

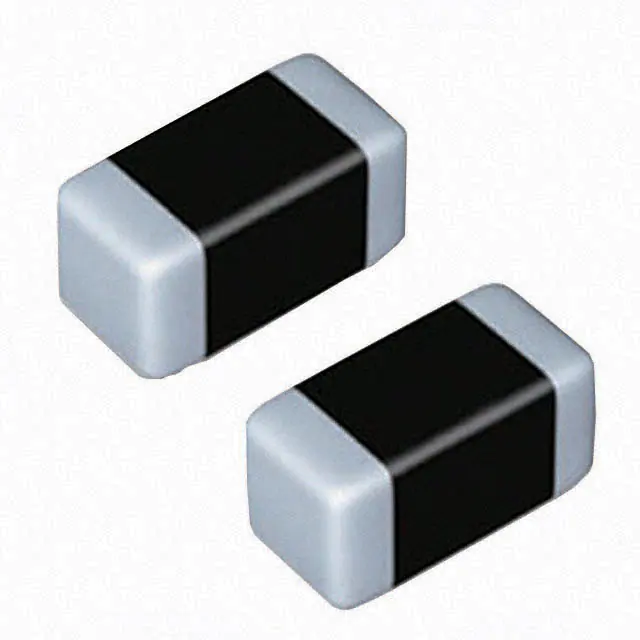

CBC2012T4R7MFIXED IND 4.7UH 520MA 650MOHM SM |
43,070 | 0.25 |
|
Datasheet |
CB, C Type | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 520 mA | 360mA | Unshielded | 650mOhm Max | - | 45MHz | - | -40°C ~ 105°C | 7.96 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
LQP03HQ68NH02DFIXED IND 68NH 100MA 5 OHM SMD |
30,800 | 0.23 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 68 nH | ±3% | 100 mA | - | Unshielded | 5Ohm Max | 12 @ 300MHz | 1.1GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
LQW15AN23NG80DFIXED IND 23NH 760MA 0.201OHM SM |
28,675 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 23 nH | ±2% | 760 mA | - | Unshielded | 201mOhm Max | 29 @ 250MHz | 4.5GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
MLF1005VR33JT000FIXED IND 330NH 140MA 1.05OHM SM |
28,038 | 0.25 |
|
Datasheet |
MLF | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ferrite | 330 nH | ±5% | 140 mA | - | Shielded | 1.05Ohm Max | 15 @ 25MHz | 230MHz | - | -40°C ~ 85°C | 25 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
-1,45mm.jpg)
|
LBR2012T100KVFIXED IND 10UH 150MA 360MOHM SMD |
27,374 | 0.26 |
|
- |
LB, R Type | 0805 (2012 Metric) | Tape & Reel (TR) | Not For New Designs | Wirewound | - | 10 µH | ±10% | 150 mA | - | Unshielded | 360mOhm | - | 32MHz | AEC-Q200 | -40°C ~ 105°C | 2.52 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
LQW15AN75NG80DFIXED IND 75NH 320MA 1.224OHM SM |
26,625 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 75 nH | ±2% | 320 mA | - | Unshielded | 1.224Ohm Max | 25 @ 200MHz | 2.4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
-BR-Series.jpg)
|
BRL1608T3R3MFIXED IND 3.3UH 390MA 650MOHM SM |
24,535 | 0.34 |
|
Datasheet |
BR, L Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 390 mA | 290mA | Unshielded | 650mOhm | - | 300MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
PE-0603CLH1R0STSFIXED IND 1UH 900MA 260MOHM SMD |
19,288 | 0.23 |
|
Datasheet |
0805CLH | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | - | 900 mA | 600mA | Shielded | 260mOhm Max | - | 98MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
LQW15AN53NG80DFIXED IND 53NH 415MA 0.696OHM SM |
18,958 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 53 nH | ±2% | 415 mA | - | Unshielded | 696mOhm Max | 25 @ 200MHz | 2.9GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
LQW15AN7N1G80DFIXED IND 7.1NH 1.42A 0.069OHM |
18,711 | 0.25 |
|
Datasheet |
LQW15 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Non-Magnetic | 7.1 nH | ±2% | 1.42 A | - | Unshielded | 69mOhm Max | 32 @ 250MHz | 7GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | - | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.024" (0.60mm) |
|
|
BRL1608T6R8MFIXED IND 6.8UH 250MA 2.132 OHM |
15,978 | 0.34 |
|
Datasheet |
BR, L Type | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 250 mA | 200mA | Unshielded | 2.132Ohm Max | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.028" (0.70mm) |
|
0402HM-3N9EBTSFIXED IND 3.9NH 750MA 70MOHM SMD |
15,965 | 0.25 |
|
Datasheet |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 3.9 nH | ±0.1nH | 750 mA | - | Unshielded | 70mOhm | 25 @ 250MHz | 10GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
0402HM-2N7ECTSFIXED IND 2.7NH 850MA 50MOHM SMD |
15,930 | 0.25 |
|
Datasheet |
0402HM | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.2nH | 850 mA | - | Unshielded | 50mOhm | 20 @ 250MHz | 15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.045" L x 0.028" W (1.15mm x 0.70mm) | 0.024" (0.60mm) |
|
|
LQP03HQ56NH02DFIXED IND 56NH 130MA 2.5 OHM SMD |
14,590 | 0.23 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 56 nH | ±3% | 130 mA | - | Unshielded | 2.5Ohm Max | 12 @ 300MHz | 1.2GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
0805CT-151EJTSFIXED IND 150NH 300MA 800MOHM SM |
14,501 | 0.25 |
|
Datasheet |
0805CT | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 300 mA | - | Unshielded | 800mOhm | 40 @ 250MHz | 1.05GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 | 0.090" L x 0.068" W (2.29mm x 1.73mm) | 0.041" (1.03mm) |
|
|
LQP03HQ24NH02DFIXED IND 24NH 170MA 1.6 OHM SMD |
13,046 | 0.23 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 24 nH | ±3% | 170 mA | - | Unshielded | 1.6Ohm Max | 15 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
MAKK2520TR47MFIXED IND 470NH 3.2A 46 MOHM SMD |
11,740 | 0.25 |
|
Datasheet |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 470 nH | ±20% | 3.2 A | 3.9A | Shielded | 46mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
LQP03HQR10H02DFIXED IND 100NH 80MA 7 OHM SMD |
11,553 | 0.23 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 100 nH | ±3% | 80 mA | - | Unshielded | 7Ohm Max | 10 @ 300MHz | 900MHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
LQP03HQ39NH02DFIXED IND 39NH 150MA 2 OHM SMD |
11,382 | 0.23 |
|
Datasheet |
LQP03 | 0201 (0603 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 39 nH | ±3% | 150 mA | - | Unshielded | 2Ohm Max | 12 @ 300MHz | 1.5GHz | - | -55°C ~ 125°C | 300 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.017" (0.42mm) |
|
|
MAKK2520T4R7MFIXED IND 4.7UH 1.1A 300MOHM SMD |
11,012 | 0.25 |
|
Datasheet |
MCOIL™, MA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.1 A | 1.3A | Shielded | 300mOhm Max | - | - | - | -40°C ~ 105°C | 2 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
