Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CR43NP-180MCFIXED IND 18UH 740MA 338MOHM SMD |
4,103 | 0.48 |
|
Datasheet |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 740 mA | - | Unshielded | 338mOhm Max | - | 26.8MHz | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|
|
CR43NP-1R0MCFIXED IND 1UH 2.56A 48.7MOHM SMD |
3,291 | 0.48 |
|
Datasheet |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 2.56 A | - | Unshielded | 48.7mOhm Max | - | 152.8MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
CR43NP-1R4MCFIXED IND 1.4UH 2.52A 56.2 MOHM |
3,147 | 0.48 |
|
Datasheet |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.4 µH | ±20% | 2.52 A | - | Unshielded | 56.2mOhm Max | - | 112.7MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
CR43NP-1R8MCFIXED IND 1.8UH 1.95A 63.7 MOHM |
4,861 | 0.48 |
|
Datasheet |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±20% | 1.95 A | - | Unshielded | 63.7mOhm Max | - | 77.8MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.189" L x 0.169" W (4.80mm x 4.30mm) | 0.138" (3.50mm) |
|
|
CR43NP-5R6MCFIXED IND 5.6UH 990MA 125.7 MOHM |
1,865 | 0.48 |
|
Datasheet |
CR43 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 990 mA | - | Unshielded | 125.7mOhm Max | - | 44.2MHz | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.138" (3.50mm) |
|

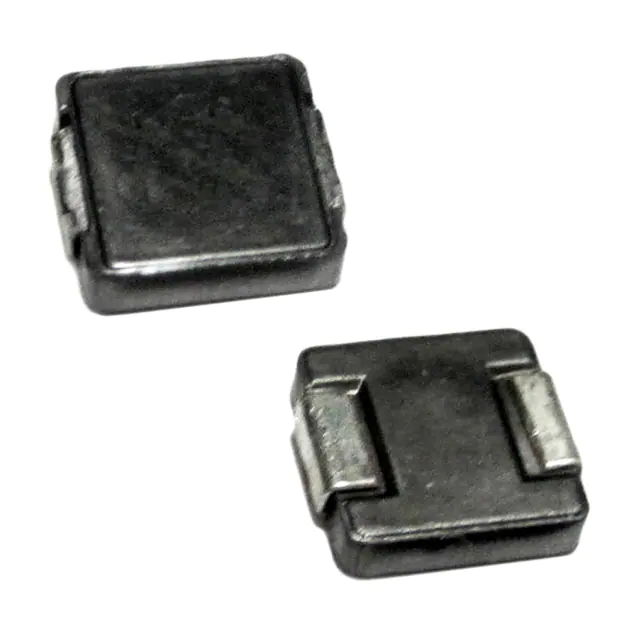

ASPI-7318-R10M-TFIXED IND 100NH 30A 1.7 MOHM SMD |
1,742 | 0.00 |
|
Datasheet |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 nH | ±20% | 30 A | 50A | Shielded | 1.7mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ASPI-7318-R15M-TFIXED IND 150NH 26A 2.5 MOHM SMD |
2,117 | 0.00 |
|
Datasheet |
ASPI-7318 | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 26 A | 45A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ASPI-7318-R20M-TFIXED IND 200NH 24A 3 MOHM SMD |
4,358 | 0.00 |
|
Datasheet |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 200 nH | ±20% | 24 A | 41A | Shielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ASPI-7318-R22M-TFIXED IND 220NH 22A 3.1 MOHM SMD |
2,442 | 0.00 |
|
Datasheet |
ASPI-7318 | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±20% | 22 A | 34A | Shielded | 3.1mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ASPI-7318-R68M-TFIXED IND 680NH 15.5A 5.5MOHM SM |
2,135 | 0.47 |
|
Datasheet |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 15.5 A | 22A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
|
ASPI-7318-R82M-TFIXED IND 820NH 13A 8 MOHM SMD |
2,350 | 0.47 |
|
Datasheet |
ASPI-7318 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 13 A | 19A | Shielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 200 kHz | - | Surface Mount | - | 0.287" L x 0.268" W (7.30mm x 6.80mm) | 0.118" (3.00mm) |
|
ASPI-1040HI-R16M-T05FIXED IND 160NH 40A 0.65MOHM SMD |
4,345 | 0.00 |
|
Datasheet |
ASPI-1040HI | Nonstandard | Tape & Reel (TR) | Obsolete | Molded | Ferrite | 160 nH | ±20% | 40 A | 75A | Unshielded | 0.65mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.167" (4.25mm) |
|
7440310047FIXED IND 470NH 3A 22 MOHM SMD |
1,675 | 1.53 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±35% | 3 A | 2A | Shielded | 22mOhm Max | - | 208MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3816 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.071" (1.80mm) |
|
CD54NP-150MCFIXED IND 15UH 1.3A 140 MOHM SMD |
2,342 | 0.48 |
|
Datasheet |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 µH | ±20% | 1.3 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
CD54NP-330LCFIXED IND 33UH 880MA 230MOHM SMD |
1,687 | 0.48 |
|
Datasheet |
CD54 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±15% | 880 mA | - | Unshielded | 230mOhm Max | - | - | - | -40°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

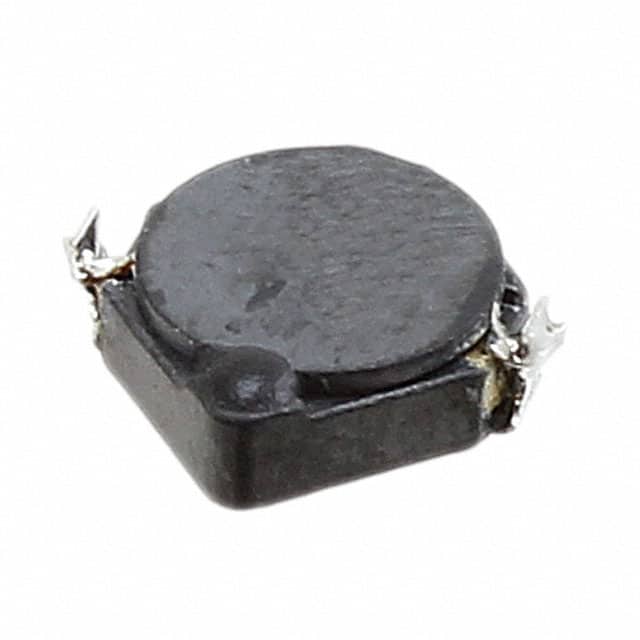

CDRH4D16NP-3R0NCFIXED IND 3UH 2.3A 53 MOHM SMD |
4,407 | 0.48 |
|
Datasheet |
CDRH4D16 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3 µH | ±25% | 2.3 A | 1.75A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.181" L x 0.181" W (4.60mm x 4.60mm) | 0.071" (1.80mm) |
|
CR32NP-2R2MCFIXED IND 2.2UH 1.28A 104MOHM SM |
3,976 | 0.48 |
|
Datasheet |
CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.28 A | - | Unshielded | 104mOhm Max | - | - | - | -40°C ~ 100°C | 7.96 MHz | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.118" (3.00mm) |
|
|
CR32NP-470KCFIXED IND 47UH 330MA 970MOHM SMD |
1,657 | 0.48 |
|
Datasheet |
CR32 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 330 mA | - | Unshielded | 970mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.150" L x 0.138" W (3.80mm x 3.50mm) | 0.118" (3.00mm) |
|

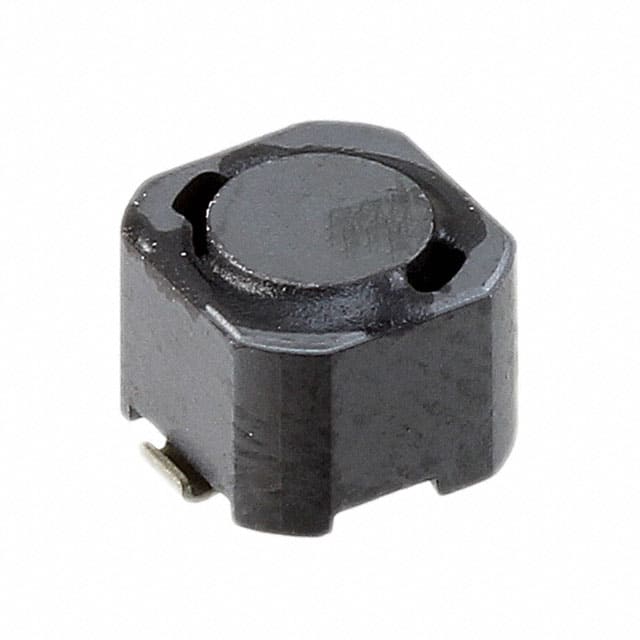

CDRH64BNP-120MC-BFIXED IND 12UH 1.2A 130 MOHM SMD |
3,360 | 0.48 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 12 µH | ±20% | 1.2 A | - | Shielded | 130mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
|
|
CDRH64BNP-330MC-BFIXED IND 33UH 750MA 330MOHM SMD |
2,830 | 0.48 |
|
Datasheet |
CDRH64B | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 750 mA | - | Shielded | 330mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.197" (5.00mm) |
