Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLF252015MT-100MFIXED IND 10UH 940MA 280MOHM SMD |
3,068 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 940 mA | 420mA | Shielded | 280mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
VLF252015MT-150MFIXED IND 15UH 770MA 450MOHM SMD |
1,852 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 770 mA | 340mA | Shielded | 450mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-1R5NFIXED IND 1.5UH 2.58A 39MOHM SMD |
3,056 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 2.58 A | 1.02A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-220MFIXED IND 22UH 580MA 730MOHM SMD |
4,726 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 580 mA | 280mA | Shielded | 730mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-2R2MFIXED IND 2.2UH 2.1A 70 MOHM SMD |
1,462 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.1 A | 870mA | Shielded | 70mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-3R3MFIXED IND 3.3UH 1.7A 100MOHM SMD |
4,132 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.7 A | 710mA | Shielded | 100mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-4R7MFIXED IND 4.7UH 1.45A 120MOHM SM |
3,275 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.45 A | 590mA | Shielded | 120mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-6R8MFIXED IND 6.8UH 1.14A 190MOHM SM |
2,980 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.14 A | 520mA | Shielded | 190mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-R47NFIXED IND 470NH 4.03A 16MOHM SMD |
4,076 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 nH | ±30% | 4.03 A | 1.85A | Shielded | 16mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
|
VLF252015MT-R68NFIXED IND 680NH 3.38A 23MOHM SMD |
2,441 | 0.00 |
|
Datasheet |
VLF-M | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 3.38 A | 1.54A | Shielded | 23mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.059" (1.50mm) |
|
SRP3020C-1R0MFIXED IND 1UH 5A 36 MOHM SMD |
2,978 | 1.03 |
|
Datasheet |
SRP3020C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 1 µH | ±20% | 5 A | 5.5A | Shielded | 36mOhm Max | 10 @ 100kHz | 66MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.079" (2.00mm) |
|
AMPLA1004S-R56MTFIXED IND 560NH 25A 1.8 MOHM SMD |
2,565 | 1.02 |
|
Datasheet |
AMPLA1004S | Nonstandard | Tape & Reel (TR) | Active | Molded | Carbonyl Powder | 560 nH | ±20% | 25 A | 40A | Shielded | 1.8mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
8230-58FIXED IND 39UH 180MA 3.6 OHM TH |
2,893 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 180 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-60FIXED IND 47UH 165MA 4.5 OHM TH |
1,771 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 165 mA | - | Unshielded | 4.5Ohm Max | 45 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-62FIXED IND 56UH 145MA 5.7 OHM TH |
3,177 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 145 mA | - | Unshielded | 5.7Ohm Max | 45 @ 2.5MHz | 18MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-64FIXED IND 68UH 135MA 6.7 OHM TH |
1,572 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 135 mA | - | Unshielded | 6.7Ohm Max | 50 @ 2.5MHz | 15MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|

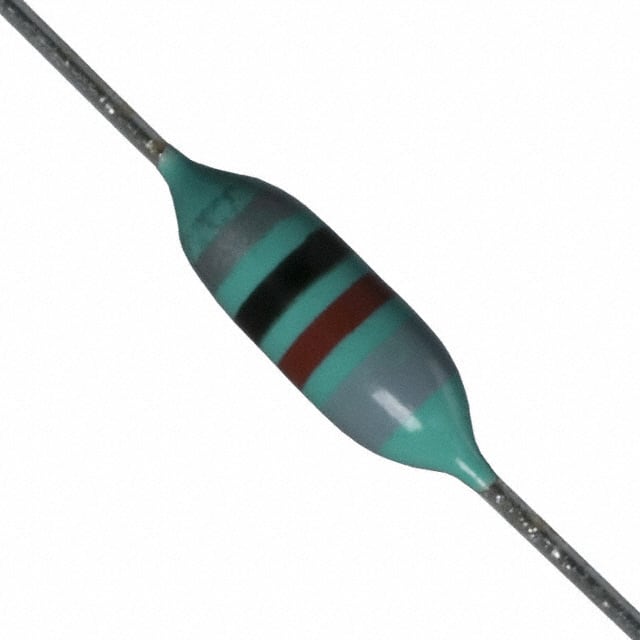

8230-66FIXED IND 82UH 130MA 7.3 OHM TH |
1,328 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 130 mA | - | Unshielded | 7.3Ohm Max | 50 @ 2.5MHz | 14MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-68FIXED IND 100UH 125MA 8 OHM TH |
4,925 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 125 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-72FIXED IND 150UH 85MA 15 OHM TH |
3,643 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 85 mA | - | Unshielded | 15Ohm Max | 30 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
|
8230-74FIXED IND 180UH 79MA 17 OHM TH |
2,440 | 0.00 |
|
Datasheet |
8230 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 79 mA | - | Unshielded | 17Ohm Max | 30 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.120" Dia x 0.300" L (3.05mm x 7.62mm) | - |
