Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER1641-821KSFIXED IND 820NH 370MA 590MOHM TH |
3,519 | 6.27 |
|
Datasheet |
ER1641 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±10% | 370 mA | - | Shielded | 590mOhm Max | 40 @ 25MHz | 180MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
0925-124HFIXED IND 120UH 88MA 5.8 OHM TH |
4,409 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 120 µH | ±3% | 88 mA | 27mA | Shielded | 5.8Ohm Max | 31 @ 790kHz | 13MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-154HFIXED IND 150UH 75MA 7.9 OHM TH |
2,491 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 150 µH | ±3% | 75 mA | 24mA | Shielded | 7.9Ohm Max | 33 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-184HFIXED IND 180UH 69MA 9.4 OHM TH |
2,229 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 180 µH | ±3% | 69 mA | 22mA | Shielded | 9.4Ohm Max | 33 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-224HFIXED IND 220UH 64MA 11 OHM TH |
2,671 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 220 µH | ±3% | 64 mA | 20mA | Shielded | 11Ohm Max | 35 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-274HFIXED IND 270UH 61MA 12 OHM TH |
1,667 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 270 µH | ±3% | 61 mA | 18mA | Shielded | 12Ohm Max | 37 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-334HFIXED IND 330UH 53MA 16 OHM TH |
3,325 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±3% | 53 mA | 16mA | Shielded | 16Ohm Max | 40 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-394HFIXED IND 390UH 46MA 21 OHM TH |
2,624 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 390 µH | ±3% | 46 mA | 14mA | Shielded | 21Ohm Max | 38 @ 790kHz | 7.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-474HFIXED IND 470UH 43MA 24 OHM TH |
2,144 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 470 µH | ±3% | 43 mA | 13mA | Shielded | 24Ohm Max | 36 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
0925-564HFIXED IND 560UH 40MA 28 OHM TH |
1,850 | 6.27 |
|
Datasheet |
0925 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 560 µH | ±3% | 40 mA | 12mA | Shielded | 28Ohm Max | 36 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
DB3-561LFRADIAL POWER LINE CHOKE |
1,819 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 5.6 µH | ±20% | 21 A | 54A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
DB3-561RADIAL POWER LINE CHOKE |
2,545 | 0.00 |
|
Datasheet |
DB3 | Radial, Vertical Cylinder (Open) | Bulk | Active | Wirewound | Ferrite | 5.6 µH | ±20% | 21 A | 54A | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.887" (22.53mm) |
|
|
SMP3340-102MLFMOLDED UNSHIELDED INDUCTOR |
2,267 | 0.00 |
|
Datasheet |
SMP3340 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 10 µH | ±20% | 4.2 A | 9A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.450" (11.43mm) |
|
|
SMP3340-102MMOLDED UNSHIELDED INDUCTOR |
2,701 | 0.00 |
|
Datasheet |
SMP3340 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 10 µH | ±20% | 4.2 A | 9A | Unshielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.450" (11.43mm) |
|

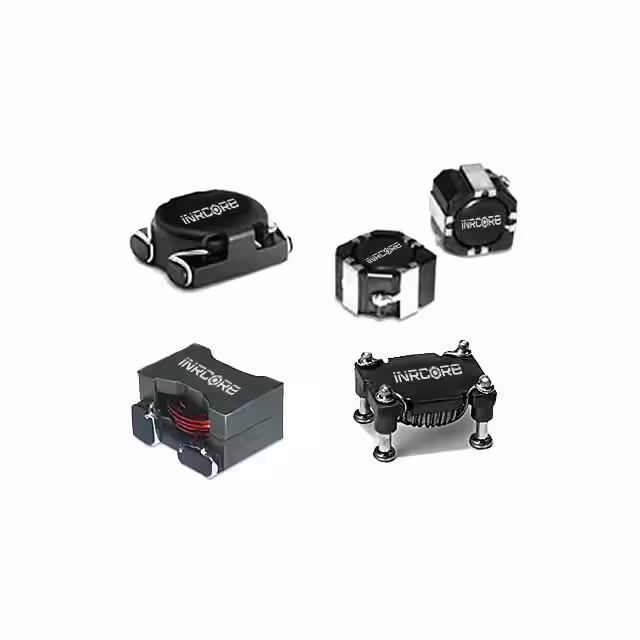

PL8180FIXED IND 10.5UH 15.4A 6.2 MOHM |
1,706 | 7.12 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 10.5 µH | - | 15.4 A | - | Unshielded | 6.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|
|
PL8180NLFIXED IND 10.5UH 15.4A 6.2 MOHM |
3,429 | 7.12 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 10.5 µH | - | 15.4 A | - | Unshielded | 6.2mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|
|
PL9301NLTFIXED IND 680NH 7.6A 5.5MOHM SMD |
3,025 | 7.09 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 680 nH | ±25% | 7.6 A | 10A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9302NLTFIXED IND 1.3UH 7.1A 7.3MOHM SMD |
3,837 | 7.09 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.3 µH | ±25% | 7.1 A | 8A | Shielded | 7.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9304NLTFIXED IND 3.3UH 5.2A 13.3MOHM SM |
1,113 | 7.09 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±25% | 5.2 A | 5.8A | Shielded | 13.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9305NLTFIXED IND 4.7UH 4.7A 19.6MOHM SM |
1,056 | 7.09 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±25% | 4.7 A | 5.4A | Shielded | 19.6mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
