Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2150R-16FFIXED IND 4.7UH 415MA 1.8 OHM TH |
1,789 | 5.77 |
|
Datasheet |
2150R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 4.7 µH | ±1% | 415 mA | - | Unshielded | 1.8Ohm Max | 40 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.220" Dia x 0.560" L (5.59mm x 14.22mm) | - |
|
|
PL8171NLTFIXED IND 8.4UH 10.4A 8.3MOHM SM |
2,610 | 5.00 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 10.4 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|

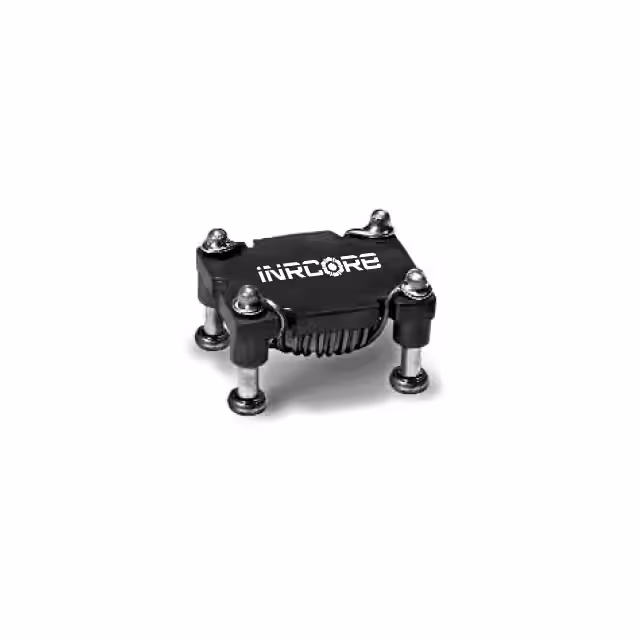

PL8171TFIXED IND 8.4UH 10.4A 8.3MOHM SM |
2,682 | 5.00 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 8.4 µH | - | 10.4 A | - | Unshielded | 8.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.900" L x 0.690" W (22.86mm x 17.53mm) | 0.520" (13.21mm) |
|
|
1B104WW HIGH CURRENT POWER CHOKE |
4,583 | 0.00 |
|
Datasheet |
1B | Axial | Bulk | Active | Toroidal | - | 1 mH | ±10% | 1 A | - | Unshielded | 600mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.575" Dia x 1.175" L (14.61mm x 29.85mm) | - |
|
|
IHTH1125KZEB680M5AFIXED IND 68UH 10.5A 27.4MOHM TH |
1,870 | 7.19 |
|
Datasheet |
IHTH-1125KZ-5A | Radial, Vertical Cylinder, 3 Leads | Bulk | Active | - | Metal Composite | 68 µH | ±20% | 10.5 A | 9.6A | Shielded | 27.4mOhm Max | - | 2.95MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Through Hole | - | 1.125" Dia (28.58mm) | 0.433" (11.00mm) |
|
IH10BQ500KFIXED IND 50UH 11A 25 MOHM TH |
2,601 | 7.12 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 11 A | 10A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.375" L (23.75mm x 34.93mm) | - |
|

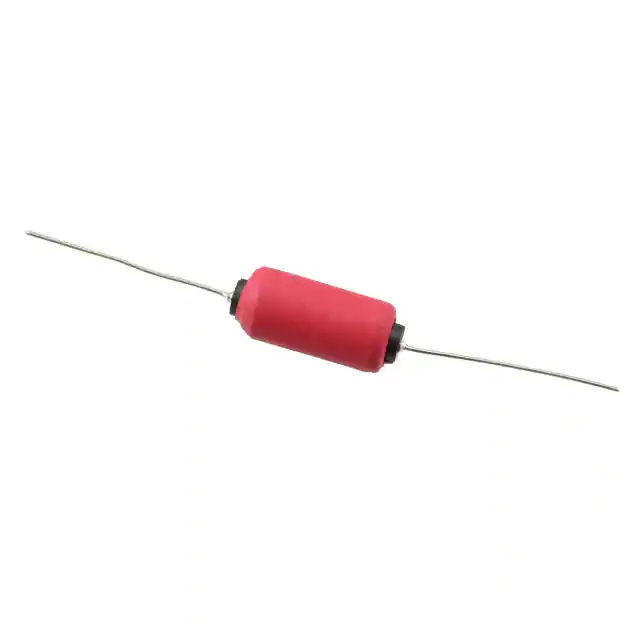

IHA205BAFIXED IND 500UH 2.3A 320 MOHM TH |
2,393 | 7.12 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 500 µH | ±10% | 2.3 A | - | Unshielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.750" Dia x 1.050" L (19.05mm x 26.67mm) | - |
|
|
SMP3340-222MMOLDED UNSHIELDED INDUCTOR |
3,165 | 0.00 |
|
Datasheet |
SMP3340 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 22 µH | ±20% | 3 A | 6A | Unshielded | 66mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.450" (11.43mm) |
|
|
SMP3340-472MMOLDED UNSHIELDED INDUCTOR |
3,647 | 0.00 |
|
Datasheet |
SMP3340 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 47 µH | ±20% | 2.3 A | 4A | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.450" (11.43mm) |
|
|
030KM2502SMTOROIDAL INDUCTOR |
3,741 | 0.00 |
|
Datasheet |
KMSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 2.16 A | 960mA | Shielded | 70mOhm Max | - | 25MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.440" L x 0.435" W (11.18mm x 11.05mm) | 0.360" (9.14mm) |
|
|
PT400-1200FIXED IND 400UH 2.4A 250 MOHM TH |
2,762 | 6.47 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 400 µH | ±15% | 2.4 A | - | Shielded | 250mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.200" Dia x 0.550" W (30.48mm x 13.97mm) | - |
|
|
PT400-1500FIXED IND 400UH 4.7A 180 MOHM TH |
1,589 | 6.47 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 400 µH | ±15% | 4.7 A | - | Shielded | 180mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.600" W (38.10mm x 15.24mm) | - |
|
|
PT400-1750FIXED IND 400UH 6A 110 MOHM TH |
2,657 | 6.47 |
|
Datasheet |
PT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 400 µH | ±15% | 6 A | - | Shielded | 110mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.750" Dia x 0.780" W (44.45mm x 19.81mm) | - |
|
|
PT400R-1200FIXED IND 400UH 2.4A 250 MOHM TH |
3,522 | 6.47 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 400 µH | ±15% | 2.4 A | - | Unshielded | 250mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.200" Dia x 0.550" W (30.48mm x 13.97mm) | - |
|
|
PT400R-1500FIXED IND 400UH 4.7A 180 MOHM TH |
4,639 | 6.47 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 400 µH | ±15% | 4.7 A | - | Unshielded | 180mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.500" Dia x 0.600" W (38.10mm x 15.24mm) | - |
|
|
PT400R-1750FIXED IND 400UH 6A 110 MOHM TH |
3,627 | 6.47 |
|
Datasheet |
PTR | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 400 µH | ±15% | 6 A | - | Unshielded | 110mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.750" Dia x 0.780" W (44.45mm x 19.81mm) | - |
|
|
IH10EB680KFIXED IND 68UH 10A 27 MOHM TH |
3,221 | 7.16 |
|
Datasheet |
IH | Radial, Horizontal Cylinder | - | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 10 A | 8A | Unshielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.935" Dia x 1.375" L (23.75mm x 34.93mm) | - |
|
|
IHA504BAFIXED IND 50UH 6.1A 40 MOHM TH |
4,225 | 7.16 |
|
Datasheet |
IHA | Axial | - | Active | Drum Core, Wirewound | Ferrite | 50 µH | ±10% | 6.1 A | - | Unshielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.700" Dia x 1.050" L (17.78mm x 26.67mm) | - |
|
LGJ12575TS-331M1R0-HFIXED IND 330UH 1.1A 340MOHM SMD |
2,464 | 7.70 |
|
Datasheet |
LGJ | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.1 A | 1A | Shielded | 340mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.295" (7.50mm) |
|
|
MLP24-333LMOLDED AXL UNSHIELDED INDUCTOR |
2,643 | 0.00 |
|
Datasheet |
MLP24 | Axial | Tape & Reel (TR) | Active | Molded | Ferrite | 330 µH | ±15% | 740 mA | 350mA | Unshielded | 650mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Axial | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
