Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PL9312NLTFIXED IND 27UH 2.1A 89 MOHM SMD |
2,289 | 7.09 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 27 µH | ±20% | 2.1 A | 2.3A | Shielded | 89mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9313NLTFIXED IND 47UH 1.65A 142MOHM SMD |
4,106 | 7.09 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 47 µH | ±20% | 1.65 A | 2.1A | Shielded | 142mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
26HF1002VVERTICAL TOROIDAL INDUCTOR |
4,663 | 0.00 |
|
Datasheet |
HF | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 10 µH | ±10% | 2.25 A | 3A | Unshielded | 50mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia x 0.150" L (8.13mm x 3.81mm) | - |
|
ETQ-PAF1R3EFAFIXED IND 1.3UH 17.7A 1.56 MOHM |
1,996 | 7.31 |
|
Datasheet |
PCC-F179F (S1) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 1.3 µH | ±30% | 17.7 A | 35.2A | Shielded | 1.56mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.677" L x 0.661" W (17.20mm x 16.80mm) | 0.354" (9.00mm) |
|
|
26HF1802HLFHORIZONTAL TOROIDAL INDUCTOR |
2,994 | 0.00 |
|
Datasheet |
HF | Radial, Horizontal Cylinder (Open) | Bulk | Active | Toroidal | - | 18 µH | ±10% | 2.05 A | 2A | Unshielded | 60mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.320" Dia (8.13mm) | 0.150" (3.80mm) |
|
|
1840R-07GFIXED IND 560NH 1.67A 100MOHM TH |
3,981 | 3.94 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±2% | 1.67 A | - | Unshielded | 100mOhm Max | 55 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-08GFIXED IND 680NH 1.52A 120MOHM TH |
1,923 | 3.94 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±2% | 1.52 A | - | Unshielded | 120mOhm Max | 55 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-09GFIXED IND 820NH 1.24A 180MOHM TH |
4,672 | 3.94 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±2% | 1.24 A | - | Unshielded | 180mOhm Max | 55 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840R-10GFIXED IND 1UH 1.05A 250 MOHM TH |
4,591 | 3.94 |
|
Datasheet |
1840R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 1 µH | ±2% | 1.05 A | - | Unshielded | 250mOhm Max | 55 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
PL9314NLTFIXED IND 68UH 1.32A 212MOHM SMD |
3,939 | 7.23 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 68 µH | ±20% | 1.32 A | 1.5A | Shielded | 212mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9315NLTFIXED IND 100UH 1.1A 328MOHM SMD |
4,926 | 7.23 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 100 µH | ±20% | 1.1 A | 1.35A | Shielded | 328mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9316NLTFIXED IND 150UH 880MA 500MOHM SM |
3,810 | 7.23 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 880 mA | 1.15A | Shielded | 500mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
|
PL9318NLTFIXED IND 330UH 600MA 1.133 OHM |
3,272 | 7.23 |
|
Datasheet |
PL93XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 330 µH | ±20% | 600 mA | 700mA | Shielded | 1.133Ohm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.410" L x 0.410" W (10.41mm x 10.41mm) | 0.157" (4.00mm) |
|
PL8181FIXED IND 17.6UH 10.9A 12.3 MOHM |
3,932 | 7.12 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 17.6 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|
|
PL8181NLFIXED IND 17.6UH 10.9A 12.3 MOHM |
4,844 | 7.12 |
|
Datasheet |
SLED | Nonstandard | Tube | Active | Toroidal | - | 17.6 µH | - | 10.9 A | - | Unshielded | 12.3mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 1.275" L x 1.065" W (32.39mm x 27.05mm) | 0.510" (12.95mm) |
|

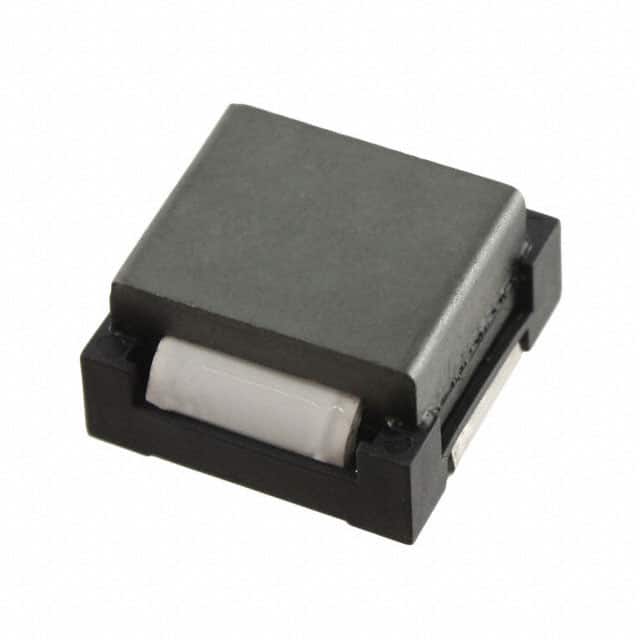

HC2LP-R47-RFIXED IND 470NH 52.9A 0.6MOHM SM |
3,423 | 3.42 |
|
Datasheet |
HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 52.9 A | 63.75A | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
|
B82559A4222A019FIXED IND 2.2UH 2.2 MOHM SMD |
1,585 | 7.69 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | - | 32.2A | Shielded | 2.2mOhm Max | - | 2MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.807" L x 0.807" W (20.50mm x 20.50mm) | 0.398" (10.10mm) |
|
HCM1A2213V2-820-RFIXED IND 82UH 7A 34.3 MOHM SMD |
4,656 | 7.57 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 82 µH | ±20% | 7 A | 9.5A | Shielded | 34.3mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM1A2213V2-470-RFIXED IND 47UH 10A 17.7 MOHM SMD |
1,525 | 7.57 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 47 µH | ±20% | 10 A | 15A | Shielded | 17.7mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
|
|
HCM1A2213V2-330-RFIXED IND 33UH 11A 15.5 MOHM SMD |
4,660 | 7.57 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 11 A | 16A | Shielded | 15.5mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.885" L x 0.866" W (22.48mm x 22.00mm) | 0.512" (13.00mm) |
