Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LC50-2592SMTOROIDAL INDUCTOR |
2,033 | 0.00 |
|
Datasheet |
LCSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25.9 µH | ±20% | 4.6 A | - | Shielded | 32mOhm Max | - | 10MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
LC50-1602SMTOROIDAL INDUCTOR |
3,710 | 0.00 |
|
Datasheet |
LCSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 16 µH | ±20% | 6 A | - | Shielded | 18.7mOhm Max | - | 15MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|
|
LC50-1602SMLFTOROIDAL INDUCTOR |
3,452 | 0.00 |
|
Datasheet |
LC37SM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 16 µH | ±20% | 6 A | - | Shielded | 18.7mOhm Max | - | 15MHz | - | -30°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.390" (9.91mm) |
|

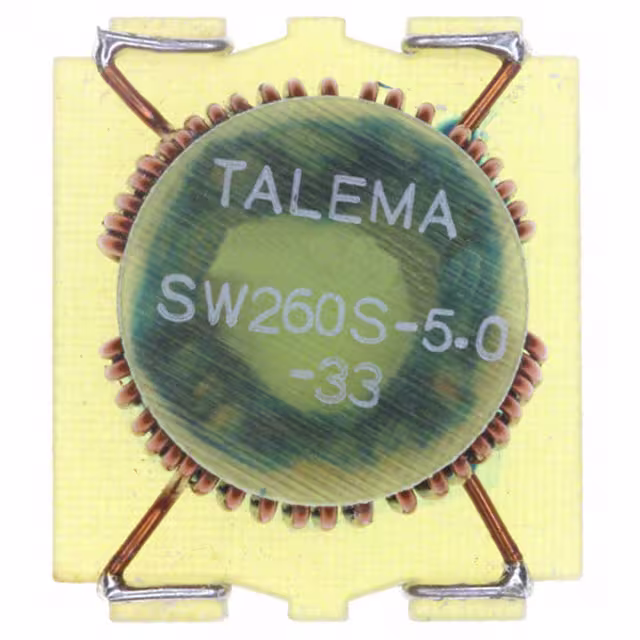

SWS-5.0-33FIXED IND 36UH 5A 19 MOHM SMD |
1,129 | 7.37 |
|
Datasheet |
SW | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | Iron Powder | 36 µH | ±20% | 5 A | - | Unshielded | 19mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.063" W (30.99mm x 27.00mm) | 0.510" (12.95mm) |
|
|
SH260S-5.0-33FIXED IND 36UH 5A 19 MOHM SMD |
2,288 | 8.01 |
|
Datasheet |
SH260 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 36 µH | ±20% | 5 A | - | Unshielded | 19mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
|
PL8122NLTFIXED IND 21.9UH 2.7A 72MOHM SMD |
3,056 | 8.20 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 21.9 µH | - | 2.7 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|

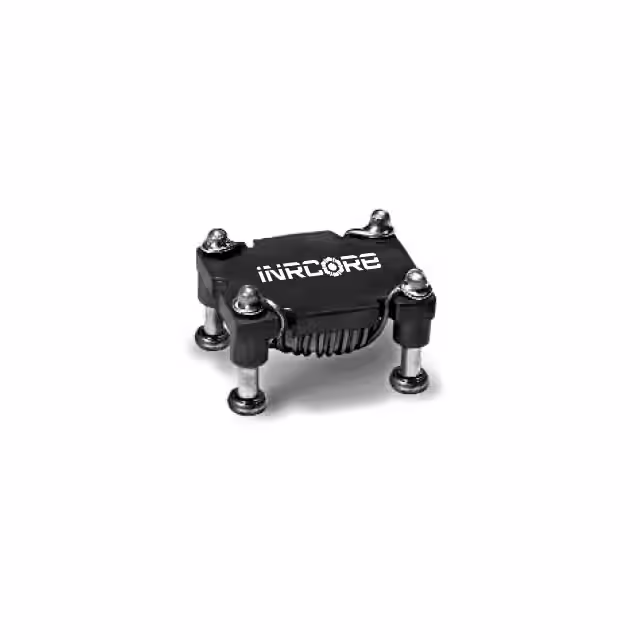

PL8122TFIXED IND 21.9UH 2.7A 72MOHM SMD |
3,414 | 8.20 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 21.9 µH | - | 2.7 A | - | Unshielded | 72mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.410" (10.41mm) |
|
|
ER3013-104KMINDUCTOR RF SMD |
2,905 | 0.00 |
|
Datasheet |
ER3013 | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1 mH | ±10% | 28 mA | - | Shielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.313" L x 0.120" W (7.94mm x 3.05mm) | 0.145" (3.68mm) |
|
5022-102FFIXED IND 1UH 1.125A 290MOHM SMD |
3,284 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1 µH | ±1% | 1.125 A | - | Unshielded | 290mOhm Max | 50 @ 25MHz | 200MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-103FFIXED IND 10UH 610MA 900MOHM SMD |
2,703 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±1% | 610 mA | - | Unshielded | 900mOhm Max | 55 @ 7.9MHz | 45MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-104FFIXED IND 100UH 275MA 4.5OHM SMD |
2,664 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 100 µH | ±1% | 275 mA | - | Unshielded | 4.5Ohm Max | 50 @ 2.5MHz | 9.5MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-105FFIXED IND 1MH 105MA 33 OHM SMD |
4,213 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 mH | ±1% | 105 mA | - | Unshielded | 33Ohm Max | 65 @ 790kHz | 2.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-112FFIXED IND 1.1UH 930MA 420MOHM SM |
4,074 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1.1 µH | ±1% | 930 mA | - | Unshielded | 420mOhm Max | 33 @ 7.9MHz | 190MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-113FFIXED IND 11UH 565MA 1.05OHM SMD |
2,730 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 11 µH | ±1% | 565 mA | - | Unshielded | 1.05Ohm Max | 60 @ 2.5MHz | 44MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-114FFIXED IND 110UH 262MA 4.9OHM SMD |
4,428 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 110 µH | ±1% | 262 mA | - | Unshielded | 4.9Ohm Max | 60 @ 790kHz | 8.9MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-122FFIXED IND 1.2UH 930MA 420MOHM SM |
4,953 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1.2 µH | ±1% | 930 mA | - | Unshielded | 420mOhm Max | 33 @ 7.9MHz | 180MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-123FFIXED IND 12UH 555MA 1.1 OHM SMD |
2,481 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 12 µH | ±1% | 555 mA | - | Unshielded | 1.1Ohm Max | 65 @ 2.5MHz | 42MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-124FFIXED IND 120UH 255MA 5.2OHM SMD |
4,545 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 120 µH | ±1% | 255 mA | - | Unshielded | 5.2Ohm Max | 65 @ 790kHz | 8.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-132FFIXED IND 1.3UH 875MA 480MOHM SM |
2,285 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 1.3 µH | ±1% | 875 mA | - | Unshielded | 480mOhm Max | 33 @ 7.9MHz | 170MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
5022-133FFIXED IND 13UH 520MA 1.2 OHM SMD |
4,789 | 7.33 |
|
Datasheet |
5022 | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 13 µH | ±1% | 520 mA | - | Unshielded | 1.2Ohm Max | 65 @ 2.5MHz | 40MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
