Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT100R-1260HMFIXED IND 100UH 7.8A 35 MOHM TH |
1,915 | 8.45 |
|
Datasheet |
PTR | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 7.8 A | - | Unshielded | 35mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.260" Dia (32.00mm) | 0.600" (15.24mm) |
|
|
PT100R-1550HMFIXED IND 100UH 10.3A 28 MOHM TH |
1,638 | 8.45 |
|
Datasheet |
PTR | Radial, Horizontal (Open) | Bulk | Active | Toroidal | - | 100 µH | ±15% | 10.3 A | - | Unshielded | 28mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | - | 1.550" Dia (39.37mm) | 0.640" (16.26mm) |
|
|
PL8904NLTFIXED IND 3.7UH 8A 8.5 MOHM SMD |
1,446 | 8.91 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.7 µH | ±30% | 8 A | 9.2A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|

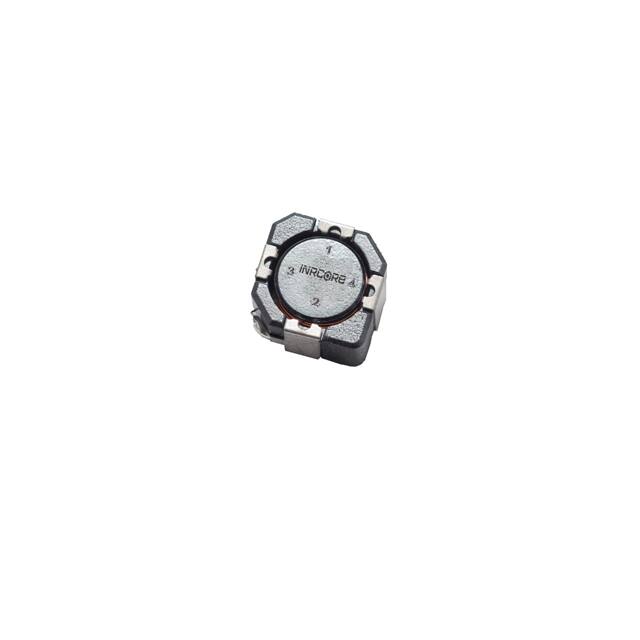

PL8904TFIXED IND 3.7UH 8A 8.5 MOHM SMD |
1,314 | 8.91 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.7 µH | ±30% | 8 A | 9.2A | Shielded | 8.5mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|

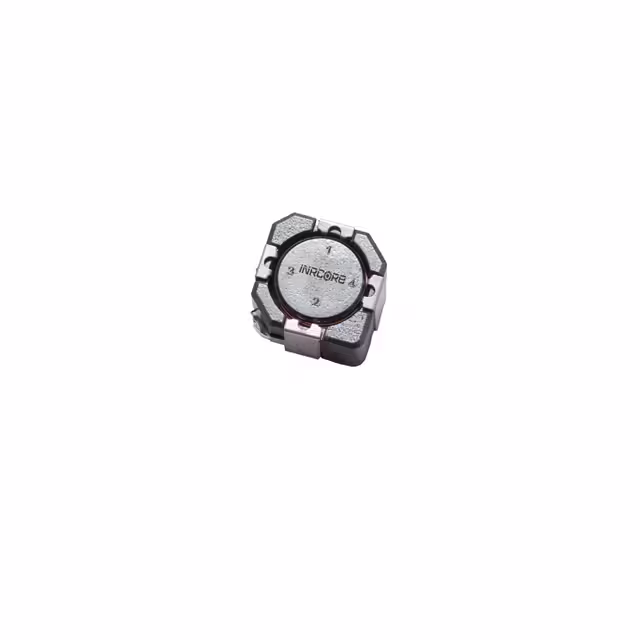

PL8908TFIXED IND 10UH 5A 21.8 MOHM SMD |
1,235 | 8.91 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 5 A | 5.5A | Shielded | 21.8mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8910TFIXED IND 15UH 4.1A 35.4MOHM SMD |
1,233 | 8.91 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 15 µH | ±20% | 4.1 A | 4.4A | Shielded | 35.4mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|
PL8911TFIXED IND 18UH 4A 37 MOHM SMD |
1,462 | 8.91 |
|
Datasheet |
PL89XX | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 4 A | 4.3A | Shielded | 37mOhm Max | - | - | - | -55°C ~ 130°C | - | - | Surface Mount | - | 0.413" L x 0.413" W (10.50mm x 10.50mm) | 0.280" (7.10mm) |
|

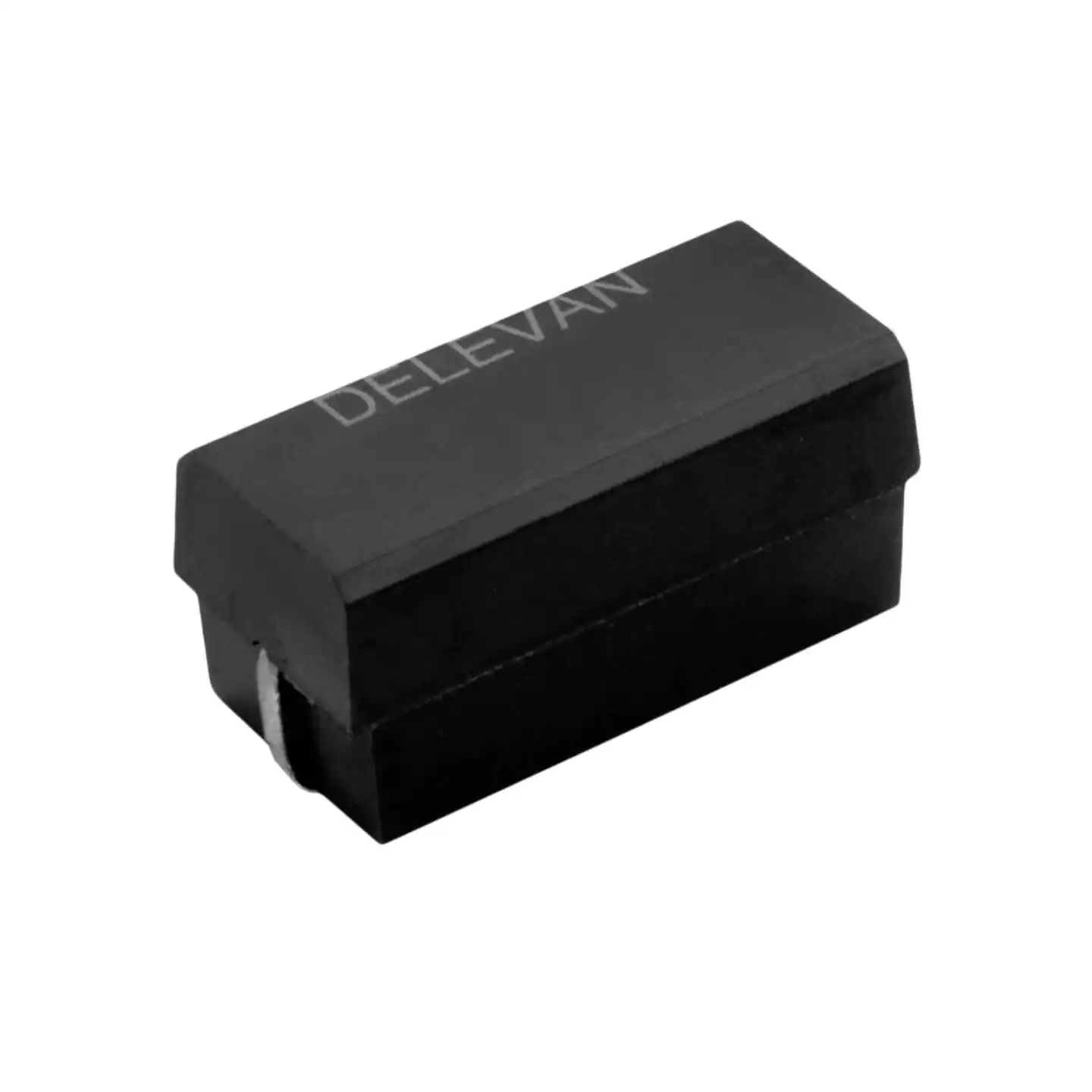

5500R-125KFIXED IND 1.2MH 1.01A 977MOHM SM |
2,609 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.2 mH | ±10% | 1.01 A | 510mA | Unshielded | 977mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-155KFIXED IND 1.5MH 920MA 1.18OHM SM |
3,659 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 mH | ±10% | 920 mA | 450mA | Unshielded | 1.18Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-185KFIXED IND 1.8MH 810MA 1.5OHM SMD |
1,469 | 7.77 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 mH | ±10% | 810 mA | 410mA | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-225KFIXED IND 2.2MH 750MA 1.76OHM SM |
3,367 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 mH | ±10% | 750 mA | 370mA | Unshielded | 1.76Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-275KFIXED IND 2.7MH 680MA 2.13OHM SM |
3,431 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.7 mH | ±10% | 680 mA | 320mA | Unshielded | 2.13Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-335KFIXED IND 3.3MH 630MA 2.53OHM SM |
2,052 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.3 mH | ±10% | 630 mA | 300mA | Unshielded | 2.53Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-395KFIXED IND 3.9MH 590MA 2.84OHM SM |
2,971 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 3.9 mH | ±10% | 590 mA | 280mA | Unshielded | 2.84Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-475KFIXED IND 4.7MH 510MA 3.79OHM SM |
3,697 | 7.77 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 4.7 mH | ±10% | 510 mA | 250mA | Unshielded | 3.79Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-565KFIXED IND 5.6MH 480MA 4.24OHM SM |
4,571 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 5.6 mH | ±10% | 480 mA | 230mA | Unshielded | 4.24Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-685KFIXED IND 6.8MH 420MA 5.75OHM SM |
2,768 | 7.77 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 6.8 mH | ±10% | 420 mA | 210mA | Unshielded | 5.75Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-825KFIXED IND 8.2MH 390MA 6.44OHM SM |
3,126 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 8.2 mH | ±10% | 390 mA | 190mA | Unshielded | 6.44Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-156KFIXED IND 15MH 300MA 10.7OHM SMD |
2,325 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 15 mH | ±10% | 300 mA | 140mA | Unshielded | 10.7Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
|
5500R-186KFIXED IND 18MH 260MA 14.8OHM SMD |
1,247 | 4.90 |
|
Datasheet |
5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 18 mH | ±10% | 260 mA | 130mA | Unshielded | 14.8Ohm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
