Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHB4BV2R2MFIXED IND 2.2UH 33.8A 2 MOHM TH |
1,482 | 12.76 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 2.2 µH | ±20% | 33.8 A | - | Unshielded | 2mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
|
IHB4BV4R7MFIXED IND 4.7UH 27.6A 3 MOHM TH |
4,786 | 12.76 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 4.7 µH | ±20% | 27.6 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
|
IHB4BV8R2MFIXED IND 8.2UH 23.9A 4 MOHM TH |
2,485 | 12.76 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 8.2 µH | ±20% | 23.9 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
|
050AT2503SMWIREWOUND TOROIDAL INDUCTOR |
1,068 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 250 µH | ±10% | 1.84 A | 1.4A | Unshielded | 160mOhm Max | - | 1.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.700" L x 0.670" W (17.78mm x 17.02mm) | 0.405" (10.28mm) |
|
|
040AT2502SMWIREWOUND TOROIDAL INDUCTOR |
4,885 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 3.38 A | 3.5A | Shielded | 35mOhm Max | - | 20MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.565" L x 0.560" W (14.35mm x 14.22mm) | 0.360" (9.14mm) |
|
|
SMT3106-683MSHIELDED TOROIDAL CHOKE |
4,222 | 0.00 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 680 µH | ±20% | 200 mA | 240mA | Shielded | 6.73Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
|
SMT3106-103MSHIELDED TOROIDAL CHOKE |
1,453 | 0.00 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 µH | ±20% | 690 mA | 640mA | Shielded | 550mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
|
SMT3106-103MLFSHIELDED TOROIDAL CHOKE |
1,602 | 0.00 |
|
Datasheet |
SMT3106 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 µH | ±20% | 690 mA | 640mA | Shielded | 550mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.420" W (13.46mm x 10.67mm) | 0.169" (4.30mm) |
|
|
180AT2502SMWIREWOUND TOROIDAL INDUCTOR |
2,652 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 1.33 A | 900mA | Shielded | 145mOhm Max | - | 30MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|

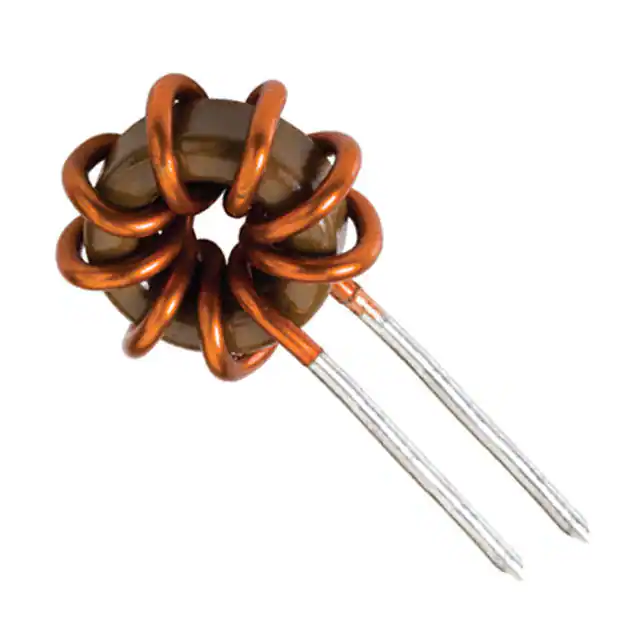

HTPT66R-104KFIXED IND 100UH 1.9A 145 MOHM TH |
3,456 | 11.21 |
|
Datasheet |
HTPT66R | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 100 µH | ±10% | 1.9 A | 1.8A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
HTPT66-104KFIXED IND 100UH 1.9A 145 MOHM TH |
4,322 | 11.21 |
|
Datasheet |
HTPT66 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron | 100 µH | ±10% | 1.9 A | 1.8A | Shielded | 145mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 0.660" Dia x 0.360" W (16.76mm x 9.14mm) | - |
|
|
M1331-124KFIXED IND 120UH 88MA 5.8 OHM SMD |
2,241 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 120 µH | ±10% | 88 mA | 27mA | Shielded | 5.8Ohm Max | 31 @ 790kHz | 13MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-154KFIXED IND 150UH 75MA 7.9 OHM SMD |
1,241 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 150 µH | ±10% | 75 mA | 24mA | Shielded | 7.9Ohm Max | 33 @ 790kHz | 12MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-184KFIXED IND 180UH 69MA 9.4 OHM SMD |
2,482 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 180 µH | ±10% | 69 mA | 22mA | Shielded | 9.4Ohm Max | 33 @ 790kHz | 11MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-224KFIXED IND 220UH 64MA 11 OHM SMD |
3,689 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 220 µH | ±10% | 64 mA | 20mA | Shielded | 11Ohm Max | 35 @ 790kHz | 10MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-274KFIXED IND 270UH 61MA 12 OHM SMD |
1,999 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 270 µH | ±10% | 61 mA | 18mA | Shielded | 12Ohm Max | 35 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-334KFIXED IND 330UH 53MA 16 OHM SMD |
1,930 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 330 µH | ±10% | 53 mA | 16mA | Shielded | 16Ohm Max | 35 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-394KFIXED IND 390UH 46MA 21 OHM SMD |
2,650 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 390 µH | ±10% | 46 mA | 14mA | Shielded | 21Ohm Max | 35 @ 790kHz | 7.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-474KFIXED IND 470UH 43MA 24 OHM SMD |
2,464 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 470 µH | ±10% | 43 mA | 13mA | Shielded | 24Ohm Max | 35 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
|
|
M1331-564KFIXED IND 560UH 40MA 28 OHM SMD |
3,369 | 10.95 |
|
Datasheet |
M1331 | Nonstandard | Tape & Reel (TR) | Obsolete | - | Ferrite | 560 µH | ±10% | 40 mA | 12mA | Shielded | 28Ohm Max | 35 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Surface Mount | - | 0.320" L x 0.125" W (8.13mm x 3.18mm) | 0.145" (3.68mm) |
