Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHB4BV180KFIXED IND 18UH 16.9A 8 MOHM TH |
1,374 | 12.99 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 18 µH | ±10% | 16.9 A | - | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
|
IHB4BV220KFIXED IND 22UH 15.9A 9 MOHM TH |
3,883 | 12.99 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 22 µH | ±10% | 15.9 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
|
IHB4BV270KFIXED IND 27UH 15.1A 10 MOHM TH |
2,290 | 12.99 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 27 µH | ±10% | 15.1 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
|
IHB4BV330KFIXED IND 33UH 14.4A 11 MOHM TH |
2,804 | 12.99 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 33 µH | ±10% | 14.4 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
|
IHB4BV820KFIXED IND 82UH 10A 23 MOHM TH |
2,149 | 12.99 |
|
Datasheet |
IHB | Radial, Vertical Cylinder | - | Active | Wirewound | - | 82 µH | ±10% | 10 A | - | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | - | 1.600" Dia (40.64mm) | 1.030" (26.16mm) |
|
1540M13FIXED IND 700UH 2.25A 420MOHM TH |
1,334 | 11.98 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 700 µH | ±15% | 2.25 A | - | Unshielded | 420mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|
|
1540M14FIXED IND 1.25MH 1.75A 850 MOHM |
3,223 | 11.98 |
|
Datasheet |
1540 | Radial, Vertical (Open) | Bulk | Active | Toroidal | - | 1.25 mH | ±15% | 1.75 A | - | Unshielded | 850mOhm Max | - | - | - | - | - | - | Through Hole | - | 1.250" Dia x 0.625" W (31.75mm x 15.88mm) | - |
|

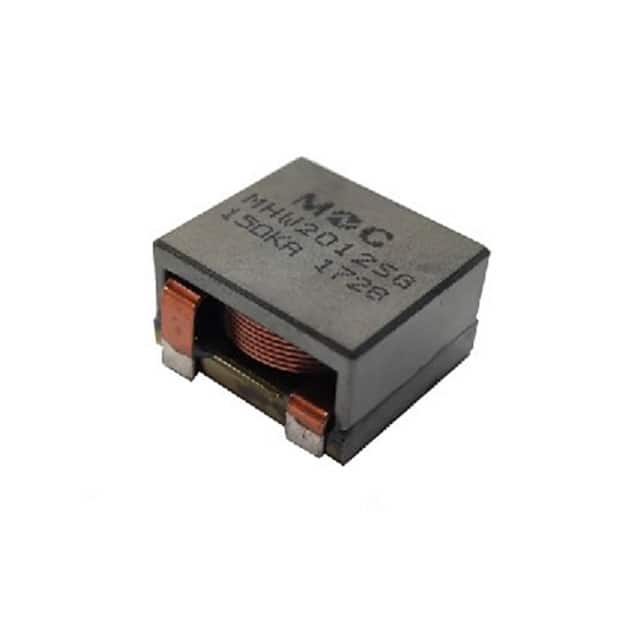

MHW2012SG150KAFIXED IND 15UH 10A 3.9 MOHM SMD |
3,113 | 11.90 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Planar | - | 15 µH | ±10% | 10 A | 15.3A | - | 3.9mOhm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.878" L x 0.866" W (22.30mm x 22.00mm) | 0.492" (12.50mm) |
|
|
180KM2502SMTOROIDAL INDUCTOR |
4,899 | 0.00 |
|
Datasheet |
KMSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 1.33 A | 500mA | Shielded | 145mOhm Max | - | 30MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
ER1641-331KSFIXED IND 330NH 780MA 130MOHM TH |
2,154 | 7.07 |
|
Datasheet |
Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 330 nH | ±10% | 780 mA | - | Unshielded | 130mOhm Max | 46 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-471KSFIXED IND 470NH 565MA 250MOHM TH |
3,074 | 7.07 |
|
Datasheet |
Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 470 nH | ±10% | 565 mA | - | Unshielded | 250mOhm Max | 44 @ 25MHz | 235MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IHTH1500TZEB6R8M5AFIXED IND 6.8UH |
3,910 | 0.00 |
|
Datasheet |
* | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
040KM1002SMTOROIDAL INDUCTOR |
1,329 | 0.00 |
|
Datasheet |
KMSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 10 µH | ±10% | 4.84 A | 2.5A | Shielded | 17mOhm Max | - | 35MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.565" L x 0.560" W (14.35mm x 14.22mm) | 0.360" (9.14mm) |
|
|
180AT5002SMWIREWOUND TOROIDAL INDUCTOR |
1,915 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 50 µH | ±10% | 1.12 A | 600mA | Shielded | 205mOhm Max | - | 10MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.340" L x 0.340" W (8.64mm x 8.64mm) | 0.270" (6.86mm) |
|
PL8502TFIXED IND 25UH 2.4A 74 MOHM SMD |
4,587 | 4.79 |
|
Datasheet |
SLED | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 25 µH | ±10% | 2.4 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.625" L x 0.525" W (15.88mm x 13.34mm) | 0.245" (6.22mm) |
|
|
121AT7502SMLFWIREWOUND TOROIDAL INDUCTOR |
4,192 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 75 µH | ±10% | 3.9 A | 3.9A | Shielded | 45mOhm Max | - | 3MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.510" (12.95mm) |
|
|
121AT7502SMWIREWOUND TOROIDAL INDUCTOR |
2,200 | 0.00 |
|
Datasheet |
ATSM | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 75 µH | ±10% | 3.9 A | 3.9A | Shielded | 45mOhm Max | - | 3MHz | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.510" (12.95mm) |
|
|
1840-07FFIXED IND 560NH 1.67A 100MOHM TH |
1,424 | 5.48 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 560 nH | ±1% | 1.67 A | - | Unshielded | 100mOhm Max | 55 @ 25MHz | 270MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-08FFIXED IND 680NH 1.52A 120MOHM TH |
3,520 | 5.48 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 680 nH | ±1% | 1.52 A | - | Unshielded | 120mOhm Max | 55 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
1840-09FFIXED IND 820NH 1.24A 180MOHM TH |
4,328 | 5.48 |
|
Datasheet |
1840 | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 820 nH | ±1% | 1.24 A | - | Unshielded | 180mOhm Max | 55 @ 25MHz | 220MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
