Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
083AT5002VVERTICAL TOROIDAL INDUCTOR |
2,702 | 0.00 |
|
Datasheet |
AT | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 50 µH | ±10% | 19 A | 25A | Shielded | 8.2mOhm Max | - | 6MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.900" Dia x 0.500" L (48.26mm x 12.70mm) | - |
|
|
3500-00KFIXED IND 47UH 225MA 5.9 OHM TH |
1,140 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | Wirewound | Phenolic | 47 µH | ±10% | 225 mA | - | Unshielded | 5.9Ohm | 18 @ 2.5MHz | 13.5MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-02KFIXED IND 56UH 216MA 6.4 OHM TH |
4,597 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Phenolic | 56 µH | ±10% | 216 mA | - | Unshielded | 6.4Ohm | 18 @ 2.5MHz | 13MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-04KFIXED IND 68UH 201MA 3.3 OHM TH |
2,563 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 68 µH | ±10% | 201 mA | - | Unshielded | 3.3Ohm | 70 @ 2.5MHz | 13MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-06KFIXED IND 82UH 196MA 3.5 OHM TH |
2,024 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 82 µH | ±10% | 196 mA | - | Unshielded | 3.5Ohm | 65 @ 2.5MHz | 11.7MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-08KFIXED IND 100UH 188MA 3.8 OHM TH |
1,434 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 100 µH | ±10% | 188 mA | - | Unshielded | 3.8Ohm | 65 @ 2.5MHz | 10.7MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-10KFIXED IND 120UH 169MA 4.7 OHM TH |
4,098 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 120 µH | ±10% | 169 mA | - | Unshielded | 4.7Ohm | 75 @ 790kHz | 9.3MHz | - | - | 790 kHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-12KFIXED IND 150UH 159MA 8.3MOHM TH |
3,189 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 150 µH | ±10% | 159 mA | - | Unshielded | 8.3mOhm | 75 @ 790kHz | 5.3MHz | - | - | 790 kHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-14KFIXED IND 180UH 171MA 5.5 OHM TH |
2,652 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 180 µH | ±10% | 171 mA | - | Unshielded | 5.5Ohm | 80 @ 790kHz | 6MHz | - | - | 790 kHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-16KFIXED IND 220UH 165MA 5.9 OHM TH |
2,693 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 220 µH | ±10% | 165 mA | - | Unshielded | 5.9Ohm | 80 @ 790kHz | 5.5MHz | - | - | 790 kHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-18KFIXED IND 270UH 156MA 6.6 OHM TH |
4,511 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 270 µH | ±10% | 156 mA | - | Unshielded | 6.6Ohm | 80 @ 790kHz | 5.1MHz | - | - | 790 kHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-20KFIXED IND 330UH 143MA 7.8 OHM TH |
1,475 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 330 µH | ±10% | 143 mA | - | Unshielded | 7.8Ohm | 75 @ 790kHz | 4.2MHz | - | - | 790 kHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|
|
3500-22KFIXED IND 390UH 136MA 8.7 OHM TH |
4,841 | 25.17 |
|
Datasheet |
3500 | Axial | Bulk | Last Time Buy | - | Iron | 390 µH | ±10% | 136 mA | - | Unshielded | 8.7Ohm | 75 @ 790kHz | 3.9MHz | - | - | 790 kHz | - | Through Hole | - | 0.250" Dia x 0.560" W (6.35mm x 14.22mm) | - |
|

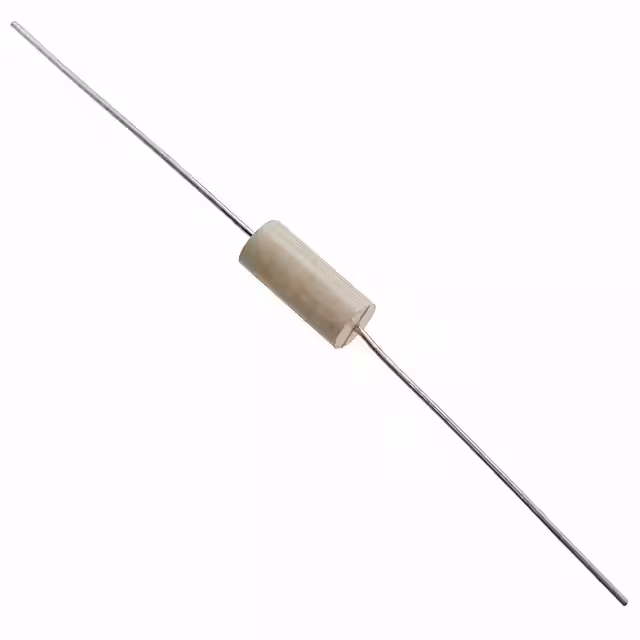

ER1840-00KSFIXED IND 150NH 2.9A 30 MOHM TH |
2,782 | 16.12 |
|
Datasheet |
Military, MIL-PRF-39010/04, ER1840 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 150 nH | ±10% | 2.9 A | - | Unshielded | 30mOhm Max | 55 @ 25MHz | 510MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
ER1840-02KRFIXED IND 220NH 2.7A 35 MOHM TH |
2,386 | 16.12 |
|
Datasheet |
Military, MIL-PRF-39010/04, ER1840 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 2.7 A | - | Unshielded | 35mOhm Max | 50 @ 25MHz | 415MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|

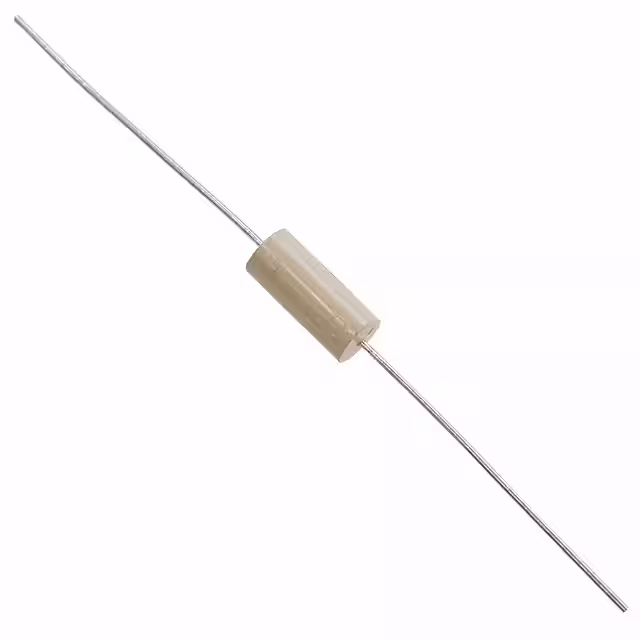

ER1840-18KRFIXED IND 3.3UH 945MA 140MOHM TH |
2,586 | 16.12 |
|
Datasheet |
Military, MIL-PRF-39010/05, ER1840 | Axial | Tape & Reel (TR) | Active | - | Iron | 3.3 µH | ±10% | 945 mA | - | Unshielded | 140mOhm Max | 30 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
|
156LADC REACTOR, FILTER CHOKE, OPEN C |
4,773 | 0.00 |
|
Datasheet |
156 | Nonstandard | Bulk | Active | Wirewound | - | 7 H | ±15% | 75 mA | - | Unshielded | - | - | - | - | - | - | - | Chassis Mount | - | 2.810" L x 1.500" W (71.37mm x 38.10mm) | - |
|
|
083AT7502VVERTICAL TOROIDAL INDUCTOR |
3,107 | 0.00 |
|
Datasheet |
AT | Radial, Vertical Cylinder (Open) | Bulk | Active | Toroidal | - | 75 µH | ±10% | 14 A | 21A | Shielded | 15mOhm Max | - | 5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 1.900" Dia x 0.500" L (48.26mm x 12.70mm) | - |
|
|
894T3005HIGH INDUCTANCE TOROID INDUCTOR |
4,216 | 0.00 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 30 mH | ±2% | 260 mA | - | Unshielded | 7Ohm Max | - | 95MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
|
|
894T1005HIGH INDUCTANCE TOROID INDUCTOR |
2,760 | 0.00 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 10 mH | ±2% | 516 mA | - | Unshielded | 2.5Ohm Max | - | 175MHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
