Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
103R-822GSFIXED IND 8.2UH 195MA 2.5OHM SMD |
2,808 | 26.25 |
|
Datasheet |
103R | Nonstandard, 2 Lead | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±2% | 195 mA | - | Unshielded | 2.5Ohm Max | 22 @ 7.9MHz | 48MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.100" L x 0.100" W (2.54mm x 2.54mm) | 0.075" (1.91mm) |
|
|
050T2006HIGH INDUCTANCE TOROID INDUCTOR |
4,877 | 0.00 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 200 mH | ±2% | 28 mA | - | Unshielded | 120Ohm Max | - | 45kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|
|
050AT2003VCVERT TOROIDAL CHOKE |
2,964 | 0.00 |
|
Datasheet |
ATVC | Radial, Vertical | Bulk | Active | Toroidal | - | 200 µH | ±10% | 1.97 A | 1.6A | Shielded | 140mOhm Max | - | 1.3MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" L x 0.400" W (19.05mm x 10.16mm) | 0.312" (7.92mm) |
|
|
050KM1003VCVERT POTTED TOROIDAL INDUCTOR |
3,189 | 0.00 |
|
Datasheet |
KMVC | Radial, Vertical | Bulk | Active | Toroidal | - | 100 µH | ±10% | 3.14 A | 960mA | Shielded | 55mOhm Max | - | 2.5MHz | - | -55°C ~ 130°C | 1 kHz | - | Through Hole | Radial | 0.750" L x 0.400" W (19.05mm x 10.16mm) | 0.312" (7.92mm) |
|
|
C225SM8544G6BROADBAND CONICAL SMT INDUCTOR |
2,052 | 0.00 |
|
Datasheet |
C225SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 5.1 µH | - | 182 mA | - | Unshielded | 2.6Ohm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.250" L x 0.144" W (6.35mm x 3.65mm) | 0.250" (6.35mm) |
|
|
10A682RADIAL-LEADED HIGH CURRENT CHOKE |
3,694 | 0.00 |
|
Datasheet |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
051T1006HIGH INDUCTANCE TOROID INDUCTOR |
3,314 | 0.00 |
|
Datasheet |
T-Small | Radial | Bulk | Active | Toroidal | - | 100 mH | ±2% | 36 mA | - | Unshielded | 115Ohm Max | - | 70kHz | - | -40°C ~ 105°C | 1 kHz | - | Through Hole | Radial | 0.700" Dia (17.78mm) | 0.400" (10.16mm) |
|
|
C225SM7042G6BROADBAND CONICAL SMT INDUCTOR |
4,488 | 0.00 |
|
Datasheet |
C225SM | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.6 µH | - | 239 mA | - | Unshielded | 1.5Ohm | - | - | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | - | 0.250" L x 0.144" W (6.35mm x 3.65mm) | 0.250" (6.35mm) |
|
|
THFD2811R2V-2R2MN-DIND 2.2UH 0.77MOHM 62A TH |
3,500 | 0.00 |
|
Datasheet |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
C1000FL5726C6BROADBAND CONICAL INDUCTOR |
3,037 | 0.00 |
|
Datasheet |
C1000FL | Radial, Horizontal Cylinder | Box | Active | - | Iron Powder | 22 µH | - | 2.7 A | - | Unshielded | 215mOhm Max | 30 @ 10MHz | - | - | -55°C ~ 125°C | 10 MHz | - | Through Hole | Radial | 0.450" Dia x 1.000" L (11.43mm x 25.40mm) | - |
|
|
C1000FL4524C6BROADBAND CONICAL INDUCTOR |
3,687 | 0.00 |
|
Datasheet |
C1000FL | Radial, Horizontal Cylinder | Box | Active | - | Iron Powder | 13 µH | - | 3.8 A | - | Unshielded | 110mOhm Max | 39 @ 10MHz | - | - | -55°C ~ 125°C | 10 MHz | - | Through Hole | Radial | 0.450" Dia x 1.000" L (11.43mm x 25.40mm) | - |
|
|
C1000FL2920C6BROADBAND CONICAL INDUCTOR |
4,322 | 0.00 |
|
Datasheet |
C1000FL | Radial, Horizontal Cylinder | Box | Active | - | Iron Powder | 5 µH | - | 7.7 A | - | Unshielded | 30mOhm Max | 48 @ 10MHz | - | - | -55°C ~ 125°C | 10 MHz | - | Through Hole | Radial | 0.450" Dia x 1.000" L (11.43mm x 25.40mm) | - |
|
|
C225FL7042G6BROADBAND CONICAL INDUCTOR |
1,550 | 0.00 |
|
Datasheet |
C225FL | Radial, Horizontal Cylinder | Bulk | Active | - | Iron Powder | 3.8 µH | - | 184 mA | - | Unshielded | 1.5Ohm Max | - | - | - | -55°C ~ 125°C | 10 MHz | - | Through Hole | Radial | 0.070" Dia x 0.225" L (1.78mm x 5.72mm) | - |
|

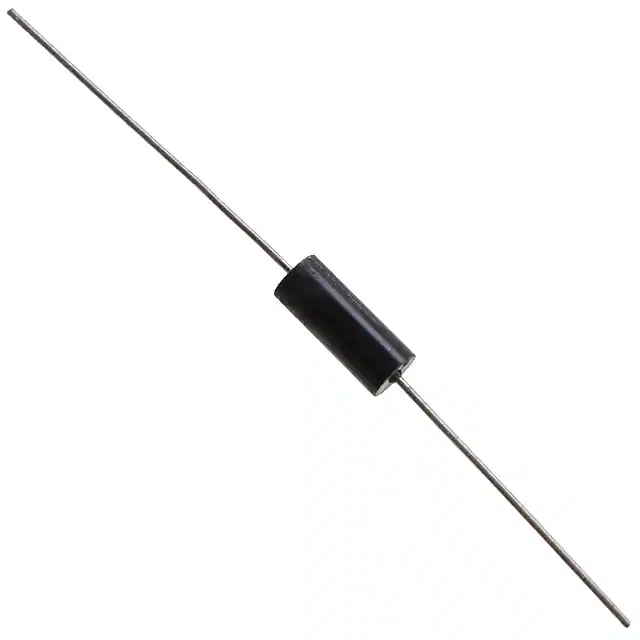

ER1641-164JSFIXED IND 160UH 135MA 4.4 OHM TH |
1,783 | 16.78 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 160 µH | ±5% | 135 mA | - | Unshielded | 4.4Ohm Max | 55 @ 790kHz | 8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-204JSFIXED IND 200UH 125MA 5 OHM TH |
3,265 | 16.78 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 200 µH | ±5% | 125 mA | - | Unshielded | 5Ohm Max | 55 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-274JSFIXED IND 270UH 115MA 5.8 OHM TH |
1,980 | 16.78 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 270 µH | ±5% | 115 mA | - | Unshielded | 5.8Ohm Max | 55 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-434JSFIXED IND 430UH 92MA 9.5 OHM TH |
3,103 | 16.78 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 430 µH | ±5% | 92 mA | - | Unshielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-513JSFIXED IND 51UH 190MA 2.23 OHM TH |
4,575 | 16.78 |
|
Datasheet |
Military, MIL-PRF-39010/03, ER1641 | Axial | Tape & Reel (TR) | Active | - | Ferrite | 51 µH | ±5% | 190 mA | - | Unshielded | 2.23Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
15A502RADIAL-LEADED HIGH CURRENT CHOKE |
4,566 | 0.00 |
|
Datasheet |
A | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | Ferrite | 50 µH | ±10% | 15 A | - | Unshielded | 20mOhm | - | 4MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.000" Dia x 1.625" L (25.40mm x 41.28mm) | - |
|
|
5A103RADIAL-LEADED HIGH CURRENT CHOKE |
4,105 | 0.00 |
|
Datasheet |
A | Radial, Horizontal Cylinder | Bulk | Active | Wirewound | Ferrite | 10 µH | ±10% | 5 A | - | Unshielded | 18mOhm | - | 25MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.640" Dia x 1.125" L (16.26mm x 28.58mm) | - |
