Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1120-681KFIXED IND 680UH 1.6A 430 MOHM TH |
3,966 | 0.00 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.6 A | - | Unshielded | 430mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-821KFIXED IND 820UH 1.3A 590 MOHM TH |
1,085 | 0.00 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±10% | 1.3 A | - | Unshielded | 590mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-122KFIXED IND 1.2MH 800MA 1.14OHM TH |
4,529 | 0.00 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 800 mA | - | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|

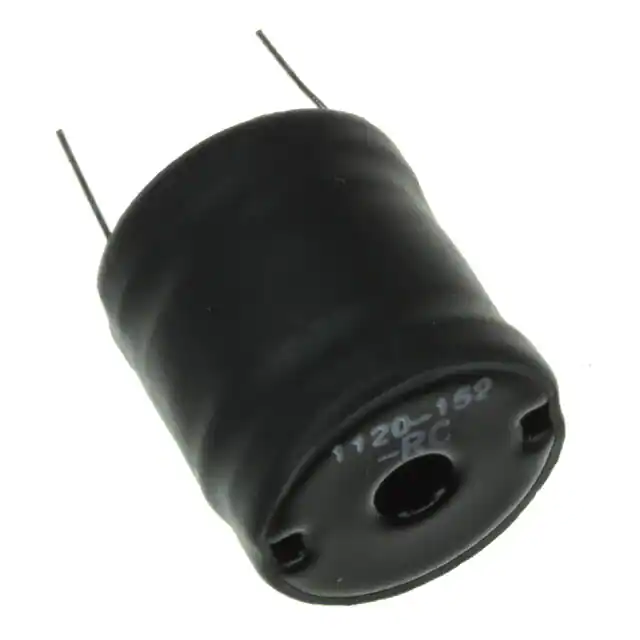

1120-152KFIXED IND 1.5MH 800MA 1.26OHM TH |
2,389 | 0.00 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 800 mA | - | Unshielded | 1.26Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-182KFIXED IND 1.8MH 800MA 1.39OHM TH |
1,357 | 0.00 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.8 mH | ±10% | 800 mA | - | Unshielded | 1.39Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
|
1120-222KFIXED IND 2.2MH 800MA 1.54OHM TH |
2,622 | 0.00 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | - | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
1130-1R0MFIXED IND 1UH 21A 3 MOHM TH |
4,037 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-3R3MFIXED IND 3.3UH 21A 3 MOHM TH |
3,321 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-4R7MFIXED IND 4.7UH 21A 3 MOHM TH |
3,496 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-5R6MFIXED IND 5.6UH 21A 3 MOHM TH |
2,514 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 21 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-8R2MFIXED IND 8.2UH 21A 4 MOHM TH |
1,085 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 21 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-100KFIXED IND 10UH 17A 6 MOHM TH |
4,883 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 17 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-220KFIXED IND 22UH 13.5A 11 MOHM TH |
4,161 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 13.5 A | - | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-270KFIXED IND 27UH 13.5A 12 MOHM TH |
1,155 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 13.5 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-470KFIXED IND 47UH 9A 24 MOHM TH |
4,293 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 9 A | - | Unshielded | 24mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-560KFIXED IND 56UH 9A 26 MOHM TH |
1,002 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 9 A | - | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-680KFIXED IND 68UH 9A 29 MOHM TH |
3,129 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 9 A | - | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-271KFIXED IND 270UH 4.5A 110 MOHM TH |
3,642 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 4.5 A | - | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-331KFIXED IND 330UH 4.5A 122 MOHM TH |
3,824 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 4.5 A | - | Unshielded | 122mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
1130-391KFIXED IND 390UH 4A 169 MOHM TH |
3,195 | 0.00 |
|
Datasheet |
1130 | Radial, Vertical Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 4 A | - | Unshielded | 169mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
