Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4624FIXED IND 15UH 1A 170 MOHM TH |
3,797 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±5% | 1 A | - | Unshielded | 170mOhm Max | 62 @ 2.52MHz | 33MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4628FIXED IND 39UH 600MA 650 MOHM TH |
3,728 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 39 µH | ±5% | 600 mA | - | Unshielded | 650mOhm Max | 70 @ 2.52MHz | 20MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4630FIXED IND 62UH 475MA 1.2 OHM TH |
2,250 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 62 µH | ±5% | 475 mA | - | Unshielded | 1.2Ohm Max | 83 @ 2.52MHz | 16MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4631FIXED IND 82UH 450MA 1.9 OHM TH |
3,066 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 82 µH | ±5% | 450 mA | - | Unshielded | 1.9Ohm Max | 85 @ 2.52MHz | 13MHz | - | -55°C ~ 105°C | 2.52 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|
|
4642FIXED IND 100UH 160MA 5.4 OHM TH |
3,582 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 100 µH | ±5% | 160 mA | - | Unshielded | 5.4Ohm Max | 49 @ 790kHz | 11MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.410" Dia x 0.875" L (10.41mm x 22.22mm) | - |
|
4646FIXED IND 240UH 160MA 8.5 OHM TH |
3,712 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 240 µH | ±5% | 160 mA | - | Unshielded | 8.5Ohm Max | 56 @ 790kHz | 7.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.440" Dia x 0.875" L (11.18mm x 22.22mm) | - |
|
|
4649FIXED IND 550UH 160MA 13 OHM TH |
2,812 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 550 µH | ±5% | 160 mA | - | Unshielded | 13Ohm Max | 58 @ 790kHz | 4.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.500" Dia x 0.875" L (12.70mm x 22.22mm) | - |
|
|
4650FIXED IND 620UH 160MA 15 OHM TH |
1,925 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Wirewound | Phenolic | 620 µH | ±5% | 160 mA | - | Unshielded | 15Ohm Max | 59 @ 790kHz | 4.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
|
4670FIXED IND 6.2MH 100MA 37 OHM TH |
4,190 | 0.00 |
|
Datasheet |
4600 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 6.2 mH | ±5% | 100 mA | - | Unshielded | 37Ohm Max | 89 @ 252kHz | 1MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.530" Dia x 0.875" L (13.46mm x 22.22mm) | - |
|
5218FIXED IND 3.35UH 20A 10 MOHM TH |
2,176 | 0.00 |
|
Datasheet |
5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 3.35 µH | ±20% | 20 A | - | Unshielded | 10mOhm Max | - | 107MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - |
|
|
5219FIXED IND 4.9UH 15A 16 MOHM TH |
1,312 | 0.00 |
|
Datasheet |
5200 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 4.9 µH | ±20% | 15 A | - | Unshielded | 16mOhm Max | - | 95MHz | - | -55°C ~ 105°C | 7.96 MHz | - | Through Hole | - | 0.600" Dia x 1.250" L (15.24mm x 31.75mm) | - |
|
|
5300-14FIXED IND 12UH 1.4A 110 MOHM TH |
3,032 | 0.00 |
|
Datasheet |
5300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 1.4 A | 880mA | Unshielded | 110mOhm Max | - | 17MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|

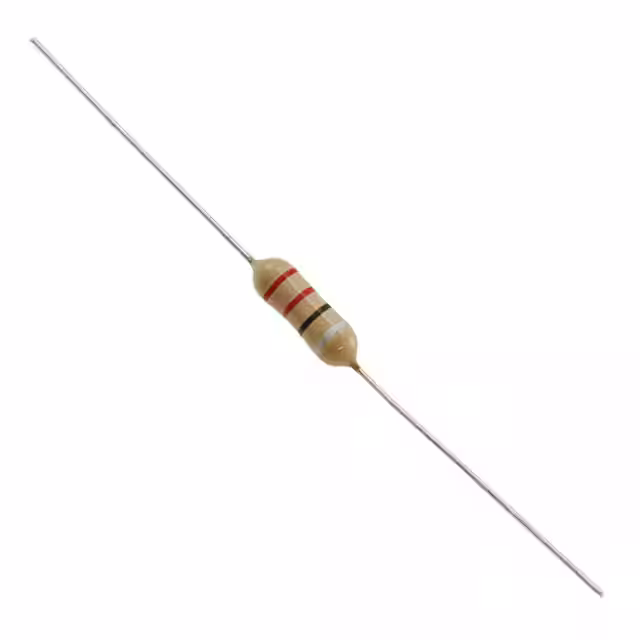

5300-19FIXED IND 33UH 910MA 240 MOHM TH |
2,223 | 0.00 |
|
Datasheet |
5300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 910 mA | 530mA | Unshielded | 240mOhm Max | - | 7.6MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
|
5300-44FIXED IND 3.9MH 77MA 34 OHM TH |
1,022 | 0.00 |
|
Datasheet |
5300 | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 77 mA | 48mA | Unshielded | 34Ohm Max | - | 480kHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.160" Dia x 0.500" L (4.06mm x 12.70mm) | - |
|
5501FIXED IND 5UH 10A 13 MOHM TH |
1,440 | 46.43 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|
|
5503FIXED IND 27UH 7A 30 MOHM TH |
3,135 | 0.00 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 7 A | - | Unshielded | 30mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 0.880" L (20.57mm x 22.35mm) | - |
|
|
5505FIXED IND 100UH 4.9A 61 MOHM TH |
2,357 | 0.00 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 4.9 A | - | Unshielded | 61mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.120" L (20.57mm x 28.45mm) | - |
|
|
5506FIXED IND 150UH 4.6A 69 MOHM TH |
1,379 | 0.00 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 4.6 A | - | Unshielded | 69mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia x 1.380" L (20.57mm x 35.05mm) | - |
|
|
5508FIXED IND 5UH 14A 9 MOHM TH |
2,825 | 0.00 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 14 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.640" Dia x 0.880" L (16.26mm x 22.35mm) | - |
|
|
5510FIXED IND 27UH 9A 22 MOHM TH |
4,990 | 0.00 |
|
Datasheet |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 9 A | - | Unshielded | 22mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.880" Dia x 0.880" L (22.35mm x 22.35mm) | - |
