Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IHDM1107BBEV7R5M20FG, IHDM-1107BB-20 7.5 20% |
441 | 11.59 |
|
Datasheet |
IHDM-1107BB-20 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Iron Powder | 7.5 µH | ±20% | 31 A | 118A | Unshielded | 2.6mOhm Max | - | 29MHz | - | -55°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.055" L x 0.705" W (26.80mm x 17.90mm) | 0.882" (22.40mm) |
.jpg)
|
AIRD-03-332KFIXED IND 3.3MH 1.3A 1.27 OHM TH |
341 | 6.64 |
|
Datasheet |
AIRD-03 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.3 mH | ±10% | 1.3 A | 2A | Unshielded | 1.27Ohm Max | - | - | - | -25°C ~ 85°C | 1 Hz | - | Through Hole | - | 1.102" Dia (28.00mm) | 0.827" (21.00mm) |
|
B82559B0303A019FIXED IND 30UH 8.6A 17 MOHM SMD |
318 | 7.28 |
|
Datasheet |
ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 30 µH | ±10% | 8.6 A | 11.5A | Shielded | 17mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.417" (10.60mm) |
|
SH150T-0.68-377FIXED IND 377UH 680MA 1 OHM TH |
230 | 6.44 |
|
Datasheet |
SH150 | Radial, Horizontal - Corner Terminals | Tray | Active | Toroidal | Iron Powder | 377 µH | ±20% | 680 mA | - | Unshielded | 1Ohm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.358" (9.10mm) |
|

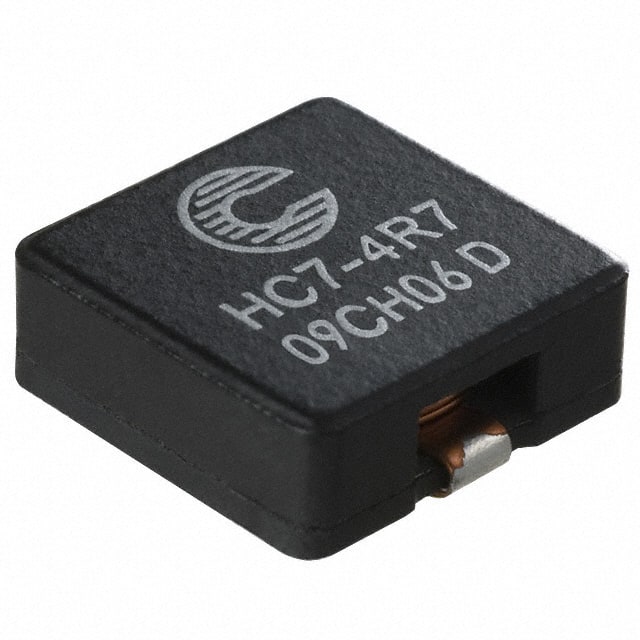

HC7-4R7-RFIXED IND 4.7UH 9.8A 9 MOHM SMD |
139 | 5.64 |
|
Datasheet |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 9.8 A | 17.3A | Unshielded | 9mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|
FIT106-1FIXED IND 253UH 4A 139 MOHM TH |
185 | 6.76 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 253 µH | - | 4 A | - | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|
|
FIT106-3FIXED IND 154UH 5.7A 74 MOHM TH |
176 | 6.76 |
|
Datasheet |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 154 µH | - | 5.7 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|
S1008R-331KFIXED IND 330NH 865MA 150MOHM SM |
4,784 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±10% | 865 mA | - | Shielded | 150mOhm Max | 40 @ 25MHz | 293MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-272KFIXED IND 2.7UH 365MA 850MOHM SM |
4,251 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.7 µH | ±10% | 365 mA | - | Shielded | 850mOhm Max | 30 @ 7.9MHz | 55MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-332KFIXED IND 3.3UH 335MA 900MOHM SM |
3,495 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 3.3 µH | ±10% | 335 mA | - | Shielded | 900mOhm Max | 30 @ 7.9MHz | 50MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-472KFIXED IND 4.7UH 305MA 1.2OHM SMD |
3,163 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 4.7 µH | ±10% | 305 mA | - | Shielded | 1.2Ohm Max | 30 @ 7.9MHz | 42MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-103KFIXED IND 10UH 230MA 2.1 OHM SMD |
2,515 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±10% | 230 mA | - | Shielded | 2.1Ohm Max | 30 @ 7.9MHz | 29MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-561KFIXED IND 560NH 790MA 180MOHM SM |
2,116 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 560 nH | ±10% | 790 mA | - | Shielded | 180mOhm Max | 40 @ 25MHz | 232MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-822KFIXED IND 8.2UH 240MA 1.9OHM SMD |
1,719 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 8.2 µH | ±10% | 240 mA | - | Shielded | 1.9Ohm Max | 30 @ 7.9MHz | 32MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-911KFIXED IND 910NH 685MA 240MOHM SM |
463 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 910 nH | ±10% | 685 mA | - | Shielded | 240mOhm Max | 40 @ 25MHz | 130MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-182KFIXED IND 1.8UH 435MA 600MOHM SM |
253 | 6.27 |
|
Datasheet |
S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±10% | 435 mA | - | Shielded | 600mOhm Max | 30 @ 7.9MHz | 66MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
2300HT-220-H-RCFIXED IND 22UH 19A 8 MOHM TH |
396 | 6.53 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 22 µH | ±15% | 19 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2300HT-6R8-V-RCFIXED IND 6.8UH 24.5A 5 MOHM TH |
267 | 6.53 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 6.8 µH | ±15% | 24.5 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300HT-150-H-RCFIXED IND 15UH 20.8A 7 MOHM TH |
262 | 6.53 |
|
Datasheet |
2300HT | Radial, Horizontal (Open) | Tray | Active | Toroidal | Iron Powder | 15 µH | ±15% | 20.8 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
|
2300HT-151-V-RCFIXED IND 150UH 7.5A 50 MOHM TH |
243 | 6.53 |
|
Datasheet |
2300HT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±15% | 7.5 A | - | Shielded | 50mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
