Fixed Inductors

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Type	Material - Core	Inductance	Tolerance	Current Rating (Amps)	Current - Saturation (Isat)	Shielding	DC Resistance (DCR)	Q @ Freq	Frequency - Self Resonant	Ratings	Operating Temperature	Inductance Frequency - Test	Features	Mounting Type	Supplier Device Package	Size / Dimension	Height - Seated (Max)
74439370082 FIXED IND 8.2UH 13A 6.5MOHM SMD Würth Elektronik	324	6.98	RFQ	Datasheet	WE-XHMI	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Metal Composite	8.2 µH	±20%	13 A	44A	Shielded	6.5mOhm	-	10MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.646" L x 0.606" W (16.40mm x 15.40mm)	0.394" (10.00mm)
1537E FIXED IND 10UH 20A 6 MOHM TH Hammond Manufacturing	587	6.93	RFQ	Datasheet	1537	Axial	Bulk	Active	Molded	Ferrite	10 µH	±5%	20 A	-	Unshielded	6mOhm	-	-	-	-	1 kHz	-	Through Hole	-	0.630" Dia x 1.250" L (16.00mm x 31.75mm)	-
M83446/39-39F FIXED IND 15UH 283MA 2.5 OHM SMD Delevan	308	6.44	RFQ	Datasheet	Military, MIL-PRF-39010, M83446/39	1812 (4532 Metric)	Tape & Reel (TR)	Active	-	Ferrite	15 µH	±5%	283 mA	-	Unshielded	2.5Ohm Max	50 @ 2.5MHz	17MHz	-	-55°C ~ 125°C	2.5 MHz	-	Surface Mount	1812	0.177" L x 0.126" W (4.50mm x 3.20mm)	0.134" (3.40mm)
8532R-25L FIXED IND 100UH 1.3A 208MOHM SMD Delevan	1,254	6.49	RFQ	Datasheet	8532R	Nonstandard	Tape & Reel (TR)	Active	-	Ferrite	100 µH	±15%	1.3 A	640mA	Unshielded	208mOhm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Surface Mount	-	0.860" L x 0.320" W (21.84mm x 8.12mm)	0.286" (7.26mm)
74435580330 FIXED IND 3.3UH 29A 1.7 MOHM SMD Würth Elektronik	278	7.34	RFQ	Datasheet	WE-HCI	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Manganese Zinc Ferrite (MnZn)	3.3 µH	±20%	29 A	45A	Shielded	1.7mOhm	-	26.5MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Surface Mount	2212	0.886" L x 0.866" W (22.50mm x 22.00mm)	0.488" (12.40mm)
74435580820 FIXED IND 8.2UH 25.5A 2.7MOHM SM Würth Elektronik	267	7.34	RFQ	Datasheet	WE-HCI	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Manganese Zinc Ferrite (MnZn)	8.2 µH	±20%	25.5 A	30A	Shielded	2.7mOhm	-	17MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Surface Mount	2212	0.886" L x 0.866" W (22.50mm x 22.00mm)	0.488" (12.40mm)
7443630220 FIXED IND 2.2UH 28A 1.5 MOHM SMD Würth Elektronik	339	7.39	RFQ	Datasheet	WE-HCF	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Manganese Zinc Ferrite (MnZn)	2.2 µH	±15%	28 A	52A	Shielded	1.5mOhm	-	32MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.846" L x 0.827" W (21.50mm x 21.00mm)	0.551" (14.00mm)
7443630070 FIXED IND 700NH 32A 0.83MOHM SMD Würth Elektronik	110	7.39	RFQ	Datasheet	WE-HCF	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Manganese Zinc Ferrite (MnZn)	700 nH	±15%	32 A	75A	Shielded	0.83mOhm	-	65MHz	AEC-Q200	-40°C ~ 125°C	100 kHz	-	Surface Mount	-	0.846" L x 0.827" W (21.50mm x 21.00mm)	0.551" (14.00mm)
CLB1108-4-50TR-R FIXED IND 200NH 0.00028OHM SMD Eaton - Electronics Division	366	6.87	RFQ	Datasheet	CLB	Nonstandard	Tape & Reel (TR)	Active	-	Ferrite	200 nH	±20%	-	25A	-	0.28mOhm	-	-	-	-40°C ~ 125°C	1 MHz	4 Phase	Surface Mount	-	1.417" L x 0.433" W (36.00mm x 11.00mm)	0.315" (8.00mm)
CTX100-1-52M-R FIXED IND 100UH 2.5A 106 MOHM TH Eaton - Electronics Division	186	4.68	RFQ	Datasheet	CTX	Radial, Vertical, 4 Leads (Open)	Bulk	Active	Toroidal	Iron Powder	100 µH	±20%	2.5 A	2.4A	Unshielded	106mOhm Max	-	-	-	-40°C ~ 75°C	100 kHz	-	Through Hole	-	0.772" L x 0.634" W (19.60mm x 16.10mm)	0.776" (19.70mm)
B82559A1042A025 FIXED IND 440NH 0.2 MOHM SMD EPCOS - TDK Electronics	241	8.24	RFQ	Datasheet	ERU25 - Flat Wire Inductor	Nonstandard	Bulk	Active	Drum Core, Wirewound	Ferrite	440 nH	±7%	-	71A	Shielded	0.2mOhm Max	-	-	-	-40°C ~ 130°C	10 kHz	-	Surface Mount	-	0.996" L x 0.925" W (25.30mm x 23.50mm)	0.352" (8.95mm)
2474R-39L FIXED IND 1.5MH 340MA 3 OHM TH Delevan	2,025	6.79	RFQ	Datasheet	2474R	Axial	Bulk	Active	Molded	Ferrite	1.5 mH	±15%	340 mA	160mA	Unshielded	3Ohm Max	-	-	-	-55°C ~ 125°C	1 kHz	-	Through Hole	-	0.240" Dia x 0.740" L (6.10mm x 18.80mm)	-
PA2247.223NLT FIXED IND 22UH 16A 15.8MOHM SMD Pulse Electronics	534	8.31	RFQ	Datasheet	PA2247.XXXNLT	Nonstandard	Tape & Reel (TR)	Active	-	-	22 µH	±20%	16 A	18A	Unshielded	15.8mOhm Max	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-	0.650" L x 0.610" W (16.50mm x 15.50mm)	0.394" (10.00mm)
B82559A7103A020 FIXED IND 10UH 3.9 MOHM SMD EPCOS - TDK Electronics	902	8.28	RFQ	Datasheet	ERU20 - Flat Wire Inductor	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	10 µH	±10%	-	18.3A	Shielded	3.9mOhm Max	-	-	AEC-Q200	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.878" L x 0.866" W (22.30mm x 22.00mm)	0.437" (11.10mm)
SH50C-2.0-470 FIXED IND 470UH 2A 170 MOHM TH Amgis, LLC	36,038	7.55	RFQ	Datasheet	SH50	Radial, Vertical (Open)	Tray	Active	Toroidal	Iron Powder	470 µH	±20%	2 A	-	Unshielded	170mOhm Max	-	-	-	-40°C ~ 125°C	10 kHz	-	Through Hole	-	1.252" L x 0.701" W (31.80mm x 17.81mm)	1.382" (35.10mm)

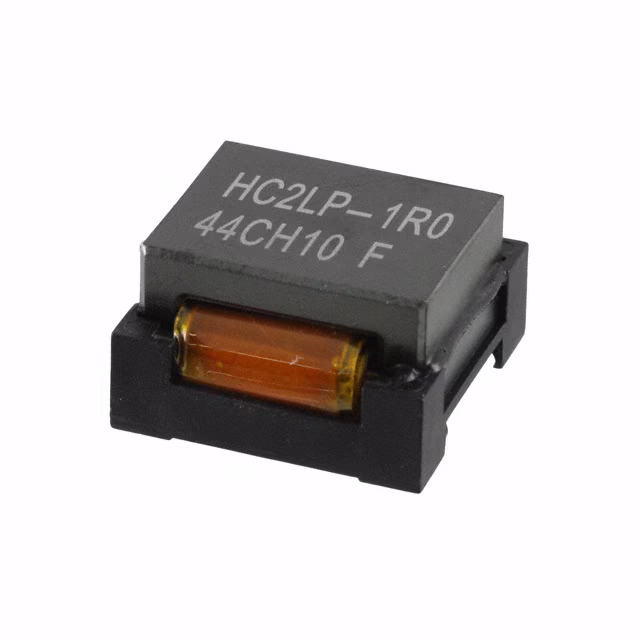

HC2LP-1R0-R FIXED IND 1UH 33A 1.3 MOHM SMD Eaton - Electronics Division	169	7.22	RFQ	Datasheet	HC2LP	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	1 µH	±20%	33 A	42.5A	Unshielded	1.3mOhm Max	-	-	-	-40°C ~ 85°C	300 kHz	-	Surface Mount	-	0.756" L x 0.756" W (19.20mm x 19.20mm)	0.440" (11.18mm)
HC2LP-R68-R FIXED IND 680NH 52.9A 0.6MOHM SM Eaton - Electronics Division	128	7.22	RFQ	Datasheet	HC2LP	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	680 nH	±20%	52.9 A	50A	Unshielded	0.6mOhm Max	-	-	-	-40°C ~ 85°C	300 kHz	-	Surface Mount	-	0.756" L x 0.756" W (19.20mm x 19.20mm)	0.440" (11.18mm)
B82559B2152A027 FIXED IND 1.5UH 52.5A 0.46 MOHM EPCOS - TDK Electronics	574	8.55	RFQ	Datasheet	ERU27 - Flat Wire Inductor	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	1.5 µH	±10%	52.5 A	67A	Shielded	0.46mOhm	-	-	AEC-Q200	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	1.094" L x 1.016" W (27.80mm x 25.80mm)	0.482" (12.25mm)
HCM1A1707-100-R FIXED IND 10UH 12A 10MOHM SMD Eaton - Electronics Division	313	7.90	RFQ	Datasheet	HCM1A	Nonstandard	Tape & Reel (TR)	Active	-	Iron Powder	10 µH	±20%	12 A	14A	Shielded	10mOhm Max	-	-	AEC-Q200	-55°C ~ 155°C	100 kHz	-	Surface Mount	-	0.677" L x 0.663" W (17.20mm x 16.85mm)	0.276" (7.00mm)
B82559A2102A020 FIXED IND 1UH 0.65 MOHM SMD EPCOS - TDK Electronics	185	8.28	RFQ	Datasheet	ERU20 - Flat Wire Inductor	Nonstandard	Tape & Reel (TR)	Active	Drum Core, Wirewound	Ferrite	1 µH	±10%	-	50A	Shielded	0.65mOhm Max	-	-	AEC-Q200	-40°C ~ 150°C	100 kHz	-	Surface Mount	-	0.878" L x 0.866" W (22.30mm x 22.00mm)	0.402" (10.20mm)

Total 147749 Record«Prev 1... 685 686 687 688689690 691 692...7388 Next»
