Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-92117NLFIXED IND 55UH 10A 13 MOHM TH |
1,318 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 55 µH | ±20% | 10 A | - | Unshielded | 13mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-53815NLFIXED IND 26UH 840MA 200 MOHM TH |
4,806 | 0.00 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 26 µH | ±20% | 840 mA | - | Shielded | 200mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.400" L x 0.400" W (10.16mm x 10.16mm) | 0.300" (7.62mm) |
|
|
PE-50503NLFIXED IND 500UH 1.75A 350MOHM TH |
3,079 | 0.00 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Obsolete | Toroidal | - | 500 µH | - | 1.75 A | - | Unshielded | 350mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 1.140" Dia (28.95mm) | 0.665" (16.89mm) |
|

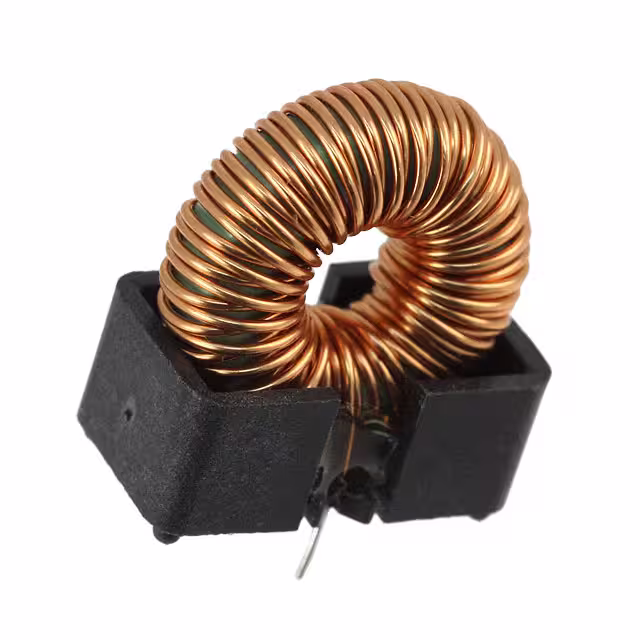

PE-54038NLTFIXED IND 77UH 2.7A 90 MOHM TH |
3,976 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tape & Reel (TR) | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
|
PE-92113NLFIXED IND 170UH 5A 50 MOHM TH |
1,643 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 170 µH | ±20% | 5 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
|
|
PE-50508NLFIXED IND 2MH 1.5A 750 MOHM TH |
3,288 | 0.00 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | - | 2 mH | - | 1.5 A | - | Unshielded | 750mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 1.416" Dia (35.96mm) | 0.850" (21.59mm) |
|
|
PG0220.451NLFIXED IND 450NH 25.5A 1.85 MOHM |
2,511 | 3.27 |
|
Datasheet |
PG0220NL | Radial, Horizontal (Open) | Tray | Obsolete | - | - | 450 nH | ±15% | 25.5 A | 35A | Unshielded | 1.85mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.362" (9.20mm) |
|
|
PA2080.141NLFIXED IND 140NH 40A 0.49 MOHM TH |
1,693 | 0.00 |
|
Datasheet |
PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | 140 nH | ±10% | 40 A | 80A | Unshielded | 0.49mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | 0.350" (8.90mm) |
|
|
PA2080.161NLFIXED IND 165NH 40A 0.49 MOHM TH |
3,930 | 0.00 |
|
Datasheet |
PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | 165 nH | ±10% | 40 A | 70A | Unshielded | 0.49mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | 0.350" (8.90mm) |
|
|
PA2080.221NLFIXED IND 215NH 40A 0.49 MOHM TH |
1,572 | 0.00 |
|
Datasheet |
PA2080NL | Radial, Vertical | Tray | Active | - | - | 215 nH | ±10% | 40 A | 55A | Unshielded | 0.49mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | 0.350" (8.90mm) |
|
|
PA2080.191NLFIXED IND 185NH 40A 0.49 MOHM TH |
3,072 | 0.00 |
|
Datasheet |
PA2080NL | Radial, Vertical | Tray | Obsolete | - | - | 185 nH | ±10% | 40 A | 65A | Unshielded | 0.49mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.415" L x 0.295" W (10.54mm x 7.50mm) | 0.350" (8.90mm) |
|
|
PE-92412NLFIXED IND 100UH 5A 34 MOHM TH |
1,642 | 0.00 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 100 µH | ±20% | 5 A | - | Unshielded | 34mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
|
|
PG0220.281NLFIXED IND 280NH 38.7A 0.8MOHM TH |
1,995 | 0.00 |
|
Datasheet |
PG0220NL | Radial, Horizontal (Open) | Tray | Active | - | - | 280 nH | ±15% | 38.7 A | 45A | Unshielded | 0.8mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" L x 0.433" W (11.00mm x 11.00mm) | 0.315" (8.00mm) |
|
|
PG0200.102NLFIXED IND 1UH 23A 2.4 MOHM TH |
4,050 | 0.00 |
|
Datasheet |
PG0200NL | Radial, Horizontal (Open) | Tray | Obsolete | - | - | 1 µH | ±15% | 23 A | 35A | Unshielded | 2.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.520" L x 0.520" W (13.20mm x 13.20mm) | 0.362" (9.20mm) |
|
|
PE-52630NLFIXED IND 820UH 750MA 2.4 OHM TH |
1,267 | 0.00 |
|
Datasheet |
- | Radial, Horizontal - Corner Terminals | Tube | Active | Toroidal | - | 820 µH | ±20% | 750 mA | - | Unshielded | 2.4Ohm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.710" L x 0.710" W (18.03mm x 18.03mm) | 0.460" (11.68mm) |
|
|
PE-50501NLFIXED IND 1MH 350MA 750 MOHM TH |
1,183 | 0.00 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Obsolete | Toroidal | - | 1 mH | - | 350 mA | - | Unshielded | 750mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 0.754" Dia (19.15mm) | 0.400" (10.16mm) |
|
|
PE-53825NLFIXED IND 18UH 1.81A 60 MOHM TH |
1,114 | 0.00 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 18 µH | ±20% | 1.81 A | - | Shielded | 60mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.495" L x 0.495" W (12.57mm x 12.57mm) | 0.375" (9.52mm) |
|
|
PE-50506NLFIXED IND 500UH 2.75A 250MOHM TH |
1,021 | 0.00 |
|
Datasheet |
- | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | - | 500 µH | - | 2.75 A | - | Unshielded | 250mOhm Max | - | - | - | -55°C ~ 70°C | 20 kHz | - | Through Hole | - | 1.416" Dia (35.96mm) | 0.850" (21.59mm) |
|
|
PE-92108NLFIXED IND 67UH 3.6A 45 MOHM TH |
4,767 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 67 µH | ±20% | 3.6 A | - | Unshielded | 45mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia x 0.550" W (26.67mm x 13.97mm) | - |
|
|
PE-92107NLFIXED IND 450UH 3A 200 MOHM TH |
3,770 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 450 µH | ±20% | 3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.650" Dia x 0.700" W (41.91mm x 17.78mm) | - |
