Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM100505-5N6DLFIXED IND 5.6NH 340MA 190MOHM SM |
1,203 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 5.6 nH | ±0.3nH | 340 mA | - | Unshielded | 190mOhm Max | 8 @ 100MHz | 4.6GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
CM100505-6N8JLFIXED IND 6.8NH 320MA 300MOHM SM |
2,593 | 0.00 |
|
Datasheet |
CM100505 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Alumina | 6.8 nH | ±5% | 320 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 4GHz | - | -40°C ~ 100°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|

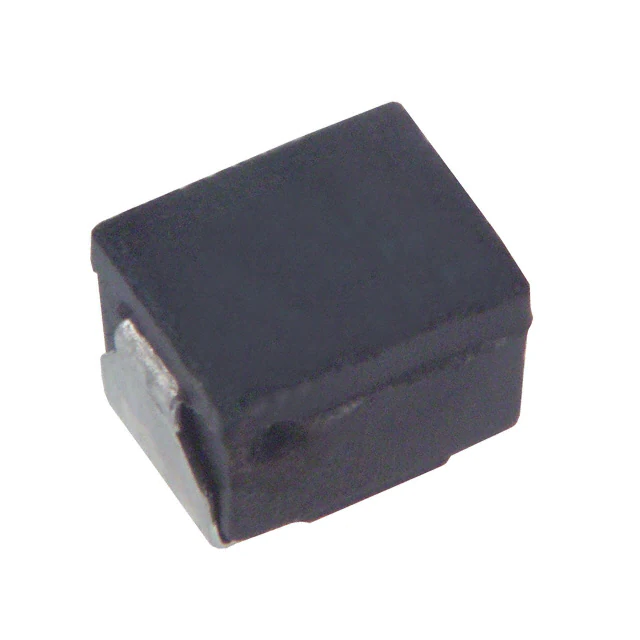

ELJ-FA390JFDFIXED IND 39UH 105MA 6 OHM SMD |
4,356 | 0.00 |
|
Datasheet |
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 39 µH | ±5% | 105 mA | - | Unshielded | 6Ohm Max | 30 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FA680JFDFIXED IND 68UH 85MA 9 OHM SMD |
1,004 | 0.00 |
|
Datasheet |
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 68 µH | ±5% | 85 mA | - | Unshielded | 9Ohm Max | 30 @ 2.52MHz | 12MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-FA820JFDFIXED IND 82UH 75MA 12 OHM SMD |
2,952 | 0.35 |
|
Datasheet |
FA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 82 µH | ±5% | 75 mA | - | Unshielded | 12Ohm Max | 30 @ 2.52MHz | 10MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|

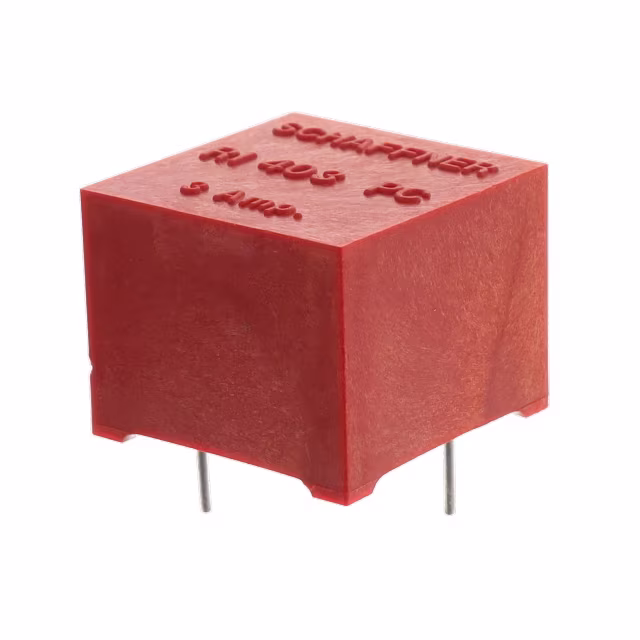

RI403PCFIXED IND 1.8MH 3A 105 MOHM TH |
2,747 | 9.74 |
|
Datasheet |
RI | Radial, Horizontal - Corner Terminals | Tray | Obsolete | - | - | 1.8 mH | - | 3 A | - | Unshielded | 105mOhm | - | - | - | -25°C ~ 110°C | 1 kHz | - | Through Hole | - | 0.917" L x 0.917" W (23.30mm x 23.30mm) | 0.709" (18.00mm) |
|
CTX02-12236FIXED IND 500UH 2.6A 200 MOHM TH |
3,882 | 0.00 |
|
Datasheet |
PFC | Radial, Horizontal (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 500 µH | - | 2.6 A | - | Unshielded | 200mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Through Hole | - | 1.224" Dia (31.08mm) | 0.750" (19.05mm) |
|

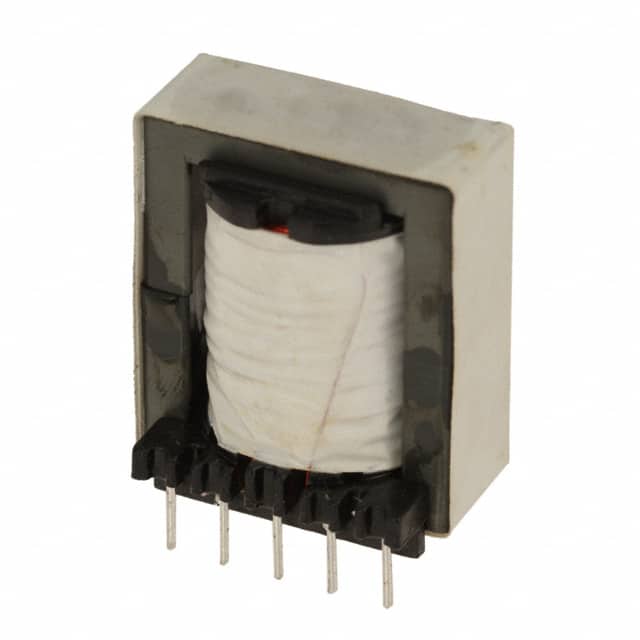

CTX16-15954FIXED IND 1MH 3.1A 212 MOHM TH |
2,166 | 11.17 |
|
Datasheet |
PFC | Radial, Vertical, 10 Leads | Bulk | Obsolete | Toroidal | Ferrite | 1 mH | - | 3.1 A | - | Unshielded | 212mOhm Max | - | - | - | -20°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.181" L x 0.945" W (30.00mm x 24.00mm) | 1.417" (36.00mm) |
|

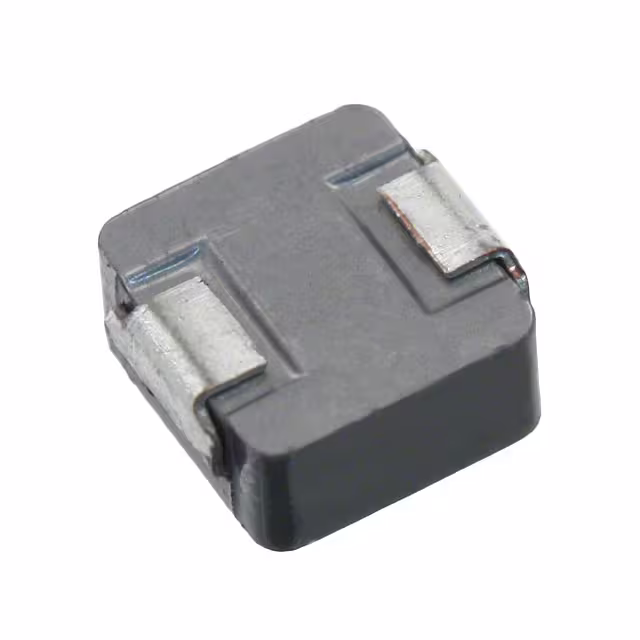

PCMC042T-R10MNFIXED IND 100NH 11A 5 MOHM SMD |
2,187 | 0.00 |
|
Datasheet |
PCMC | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 100 nH | ±20% | 11 A | 30A | Unshielded | 5mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.079" (2.00mm) |
|

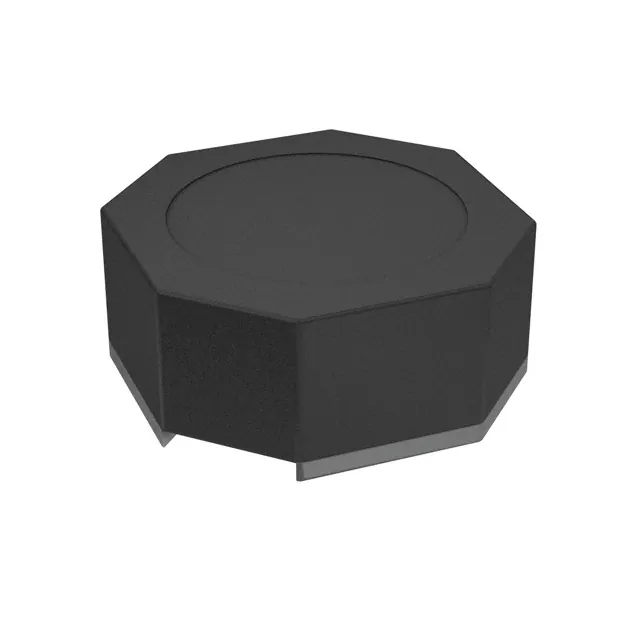

744028150FIXED IND 15UH 450MA 830MOHM SMD |
3,437 | 0.00 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 450 mA | 350mA | Shielded | 830mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
|
744028220FIXED IND 22UH 350MA 1.48OHM SMD |
1,626 | 0.00 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 350 mA | 270mA | Shielded | 1.48Ohm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.047" (1.20mm) |
|
744029150FIXED IND 15UH 500MA 700MOHM SMD |
4,817 | 0.00 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 500 mA | 420mA | Shielded | 700mOhm Max | - | 32MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
744029220FIXED IND 22UH 410MA 970MOHM SMD |
2,210 | 0.00 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 410 mA | 300mA | Shielded | 970mOhm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
744029330FIXED IND 33UH 325MA 1.54OHM SMD |
3,600 | 0.00 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 325 mA | 260mA | Shielded | 1.54Ohm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|
|
744029470FIXED IND 47UH 250MA 2.5 OHM SMD |
2,368 | 0.00 |
|
Datasheet |
WE-TPC | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 250 mA | 200mA | Shielded | 2.5Ohm Max | - | 18MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
.jpg)
|
HKQ0603S15NH-TFIXED IND 15NH 150MA 890MOHM SMD |
4,040 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 15 nH | ±3% | 150 mA | - | Unshielded | 890mOhm Max | 12 @ 500MHz | 2.6GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HKQ0603S18NH-TFIXED IND 18NH 140MA 1.05OHM SMD |
4,099 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 18 nH | ±3% | 140 mA | - | Unshielded | 1.05Ohm Max | 11 @ 500MHz | 2.3GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HKQ0603S1N8C-TFIXED IND 1.8NH 370MA 160MOHM SM |
3,373 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 1.8 nH | ±0.2nH | 370 mA | - | Unshielded | 160mOhm Max | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HKQ0603S2N0C-TFIXED IND 2NH 300MA 240 MOHM SMD |
3,568 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2 nH | ±0.2nH | 300 mA | - | Unshielded | 240mOhm Max | 13 @ 500MHz | 10GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
HKQ0603S3N6C-TFIXED IND 3.6NH 230MA 410MOHM SM |
2,724 | 0.00 |
|
Datasheet |
HK, Q Type | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.6 nH | ±0.2nH | 230 mA | - | Unshielded | 410mOhm Max | 13 @ 500MHz | 7.7GHz | - | -55°C ~ 125°C | 500 MHz | - | Surface Mount | 0201 (0603 Metric) | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
