Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ATFC-0603-39N-FTFIXED IND 39NH 200MA 3 OHM SMD |
3,496 | 0.00 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | 39 nH | ±1% | 200 mA | - | Unshielded | 3Ohm Max | 15 @ 300MHz | 1.5GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-47N-FTFIXED IND 47NH 200MA 3 OHM SMD |
2,915 | 0.00 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | 47 nH | ±1% | 200 mA | - | Unshielded | 3Ohm Max | 15 @ 300MHz | 1.5GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-56N-FTFIXED IND 56NH 150MA 5 OHM SMD |
3,089 | 0.00 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | 56 nH | ±1% | 150 mA | - | Unshielded | 5Ohm Max | 15 @ 300MHz | 1GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|
|
ATFC-0603-R10-GTFIXED IND 100NH 100MA 7.5OHM SMD |
1,699 | 0.00 |
|
Datasheet |
ATFC-0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | Ceramic | 100 nH | ±2% | 100 mA | - | Unshielded | 7.5Ohm Max | 15 @ 300MHz | 1GHz | - | -25°C ~ 85°C | 300 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
|

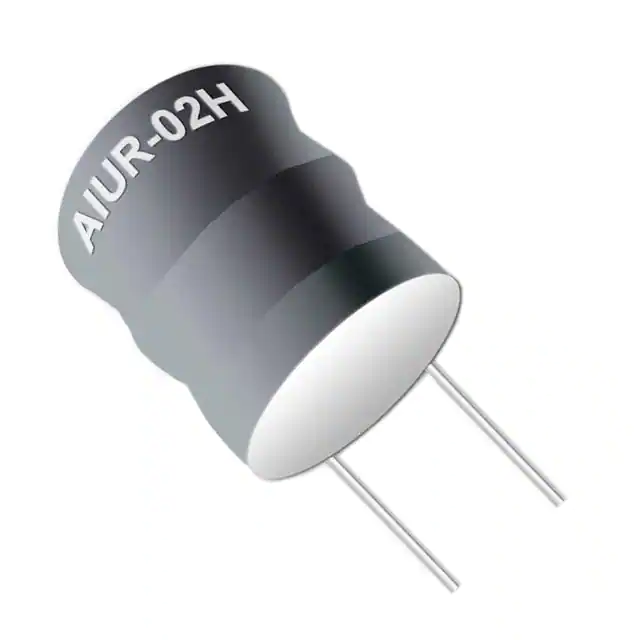

AIUR-02H-471KFIXED IND 470UH 320MA 770MOHM TH |
2,230 | 0.00 |
|
Datasheet |
AIUR-02H | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 320 mA | 680mA | Unshielded | 770mOhm Max | 20 @ 790kHz | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.472" (12.00mm) |
|
AIUR-11-3R9MFIXED IND 3.9UH 1.6A 22 MOHM TH |
1,052 | 0.00 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 1.6 A | 6.8A | Unshielded | 22mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-330KFIXED IND 33UH 1.6A 66 MOHM TH |
1,572 | 0.00 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 1.6 A | 2.3A | Unshielded | 66mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-680KFIXED IND 68UH 1A 168 MOHM TH |
3,704 | 0.00 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1 A | 1.45A | Unshielded | 168mOhm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-153KFIXED IND 15MH 76MA 27.6 OHM TH |
4,806 | 0.00 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 mH | ±10% | 76 mA | 100mA | Unshielded | 27.6Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-333KFIXED IND 33MH 46MA 64.8 OHM TH |
3,916 | 0.00 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 46 mA | 74mA | Unshielded | 64.8Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
|
AIUR-11-683KFIXED IND 68MH 36MA 115 OHM TH |
4,162 | 0.00 |
|
Datasheet |
AIUR-11 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±10% | 36 mA | 40mA | Unshielded | 115Ohm Max | - | - | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.375" Dia (9.53mm) | 0.450" (11.43mm) |
|
AISR-01-382JFIXED IND 3.8MH TH |
4,062 | 0.96 |
|
Datasheet |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 3.8 mH | ±5% | - | - | Shielded | - | 100 @ 50kHz | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|
|
AISR-01-772JFIXED IND 7.7MH 30MA 10 OHM TH |
2,825 | 0.00 |
|
Datasheet |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 7.7 mH | ±5% | 30 mA | - | Shielded | 10Ohm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|
|
AISR-01-123JFIXED IND 12MH 25MA 13 OHM TH |
4,939 | 0.00 |
|
Datasheet |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 12 mH | ±5% | 25 mA | - | Shielded | 13Ohm Max | 100 @ 50kHz | 220kHz | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|
|
AISR-01-683JFIXED IND 68MH 11MA 67 OHM TH |
3,222 | 0.00 |
|
Datasheet |
AISR-01 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 mH | ±5% | 11 mA | - | Shielded | 67Ohm Max | 100 @ 50kHz | 90kHz | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.425" Dia (10.80mm) | 0.551" (14.00mm) |
|

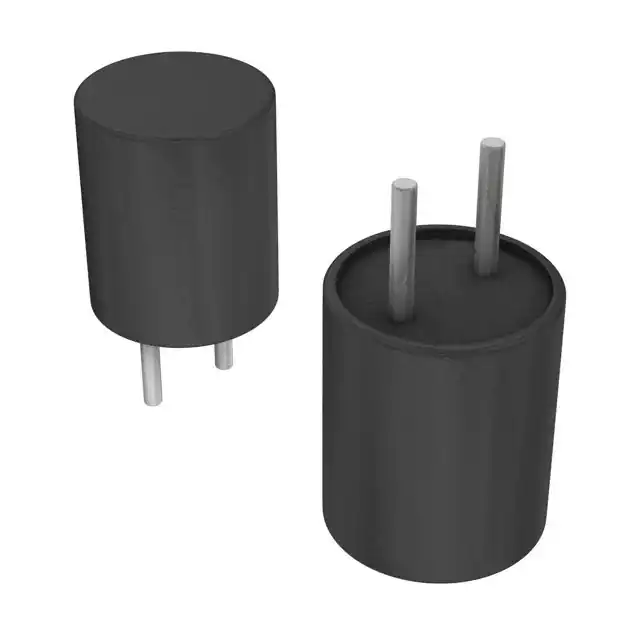

AISR-875-680MFIXED IND 68UH 1.1A 200 MOHM TH |
4,293 | 0.00 |
|
Datasheet |
AISR-875 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 68 µH | ±20% | 1.1 A | - | Shielded | 200mOhm Max | - | - | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
AISR-875-471LFIXED IND 470UH 410MA 1.34OHM TH |
2,800 | 0.00 |
|
Datasheet |
AISR-875 | Radial, Vertical Cylinder | Bulk | Active | Wirewound | - | 470 µH | ±15% | 410 mA | - | Shielded | 1.34Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|

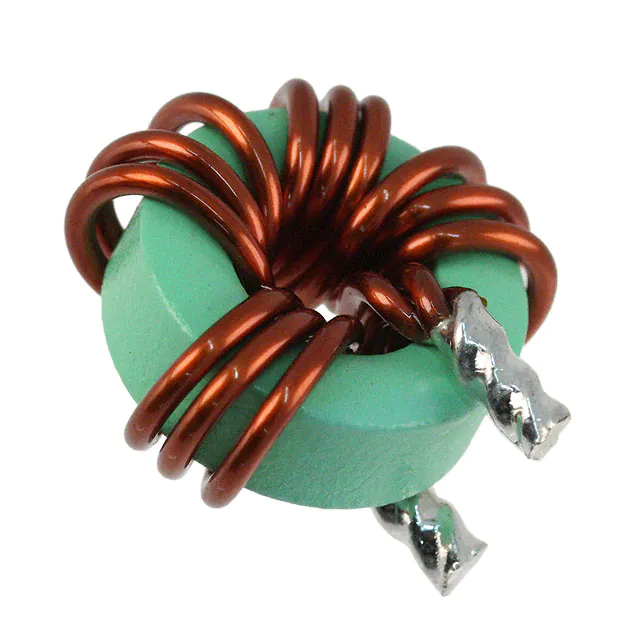

PG0123NLFIXED IND 490NH 48A 0.85 MOHM TH |
4,122 | 0.00 |
|
Datasheet |
Bare Coil | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 490 nH | - | 48 A | - | Unshielded | 0.85mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.807" Dia x 0.413" W (20.50mm x 10.50mm) | - |
|
PA0373NLFIXED IND 2.1UH 34A 3.85 OHM SMD |
3,209 | 0.00 |
|
Datasheet |
Spyglass | Nonstandard | Tray | Active | - | - | 2.1 µH | ±12% | 34 A | 35.2A | Shielded | 3.85Ohm Max | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.920" L x 0.790" W (23.37mm x 20.07mm) | 0.290" (7.37mm) |
-BR-Series.jpg)
|
BRL2515T1R0MFIXED IND 1UH 1.35A 91 MOHM SMD |
2,681 | 0.00 |
|
Datasheet |
BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 1.35 A | 1.5A | Unshielded | 91mOhm Max | - | 160MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
