Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-BR-Series.jpg)
|

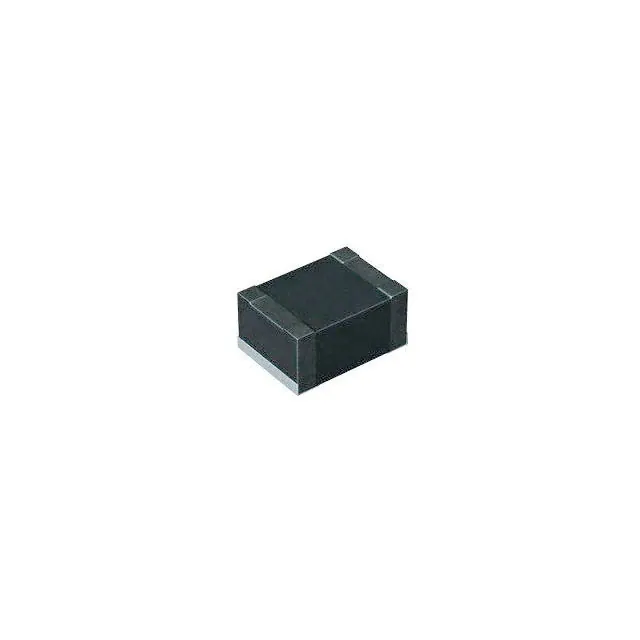

BRL2515T1R5MFIXED IND 1.5UH 1.15A 100MOHM SM |
2,780 | 0.00 |
|
Datasheet |
BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.15 A | 1.2A | Unshielded | 100mOhm | - | 130MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
|
|
BRL2515T2R2MFIXED IND 2.2UH 1A 135 MOHM SMD |
4,854 | 0.00 |
|
Datasheet |
BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1 A | 1A | Unshielded | 135mOhm | - | 100MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
|
|
BRL2515T4R7MDFIXED IND 4.7UH 700MA 344.5 MOHM |
2,934 | 0.00 |
|
Datasheet |
BR, L Type | 1006 (2515 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 700 mA | 650mA | Unshielded | 344.5mOhm Max | - | 60MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1006 (2515 Metric) | 0.098" L x 0.059" W (2.50mm x 1.50mm) | 0.047" (1.20mm) |
-1,80mm.jpg)
|
CKP20162R2M-TFIXED IND 2.2UH 1.2A 140MOHM SMD |
3,106 | 0.00 |
|
Datasheet |
CK, P Type | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 1.2 A | - | Unshielded | 140mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
CKP20164R7M-TFIXED IND 4.7UH 900MA 200MOHM SM |
1,730 | 0.00 |
|
Datasheet |
CK, P Type | 0806 (2016 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 900 mA | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0806 (2016 Metric) | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
-1,45mm.jpg)
|
CKS2125100M-TFIXED IND 10UH 110MA 520MOHM SMD |
2,331 | 0.15 |
|
Datasheet |
CK, S Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 10 µH | ±20% | 110 mA | - | Unshielded | 520mOhm Max | - | 24MHz | - | -40°C ~ 85°C | 2 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CKS21252R2M-TFIXED IND 2.2UH 170MA 190MOHM SM |
1,467 | 0.00 |
|
Datasheet |
CK, S Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 2.2 µH | ±20% | 170 mA | - | Unshielded | 190mOhm Max | - | 50MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
|
CKS21254R7M-TFIXED IND 4.7UH 130MA 300MOHM SM |
3,340 | 0.00 |
|
Datasheet |
CK, S Type | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 4.7 µH | ±20% | 130 mA | - | Unshielded | 300mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 10 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
NRG4026T150MFIXED IND 15UH 1.1A 110 MOHM SMD |
3,302 | 0.00 |
|
Datasheet |
NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 900mA | Shielded | 110mOhm | - | 19MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
|
NRG4026T330MFIXED IND 33UH 800MA 200MOHM SMD |
1,489 | 0.00 |
|
Datasheet |
NR, G Type | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 800 mA | 540mA | Shielded | 200mOhm | - | 9MHz | - | -25°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.102" (2.60mm) |
|
ETQ-P3LR33XFNFIXED IND 330NH 17A 2 MOHM SMD |
4,538 | 0.00 |
|
Datasheet |
PCC-M0630L | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | Metal Composite | 330 nH | ±20% | 17 A | - | Shielded | 2mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.295" L x 0.256" W (7.50mm x 6.50mm) | 0.118" (3.00mm) |
|

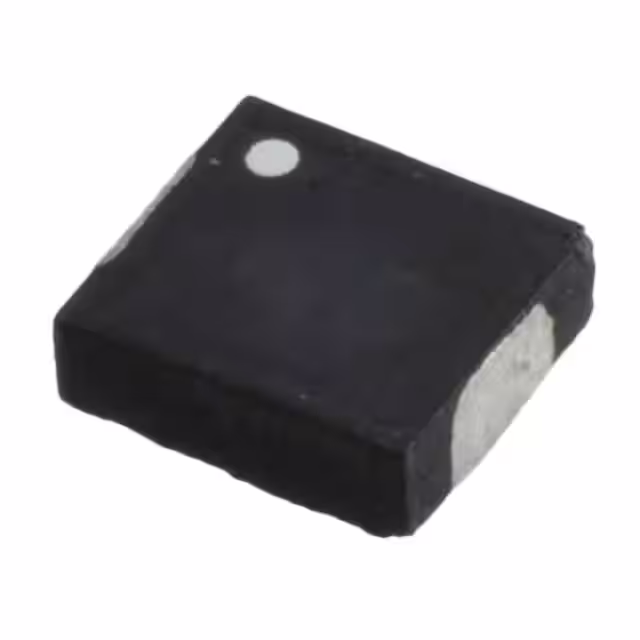

MPI4040R1-R10-RFIXED IND 90NH 8A 8.5 MOHM SMD |
1,224 | 0.00 |
|
Datasheet |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 90 nH | ±20% | 8 A | 32A | Shielded | 8.5mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|

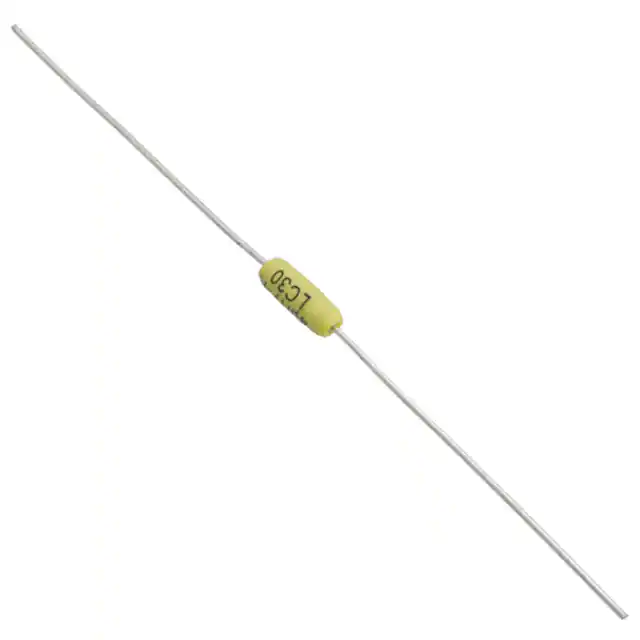

1624000-1FIXED IND 10UH 219MA 3.7 OHM TH |
3,508 | 0.00 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | 10 µH | ±10% | 219 mA | - | Shielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 100°C | 7.9 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
1624002-1FIXED IND 1MH 49MA 72 OHM TH |
4,869 | 0.00 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Tape & Box (TB) | Active | - | - | 1 mH | ±10% | 49 mA | - | Shielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 100°C | 790 kHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
.jpg)
|
36401E10NGFIXED IND 10NH 200MA 1.35OHM SMD |
4,821 | 0.06 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 10 nH | ±2% | 200 mA | - | Unshielded | 1.35Ohm Max | 13 @ 500MHz | 4.5GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E15NGFIXED IND 15NH 130MA 1.75OHM SMD |
4,497 | 0.06 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 15 nH | ±2% | 130 mA | - | Unshielded | 1.75Ohm Max | 13 @ 500MHz | 3.3GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E1N0AFIXED IND 1NH 700MA 150 MOHM SMD |
3,022 | 0.06 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1 nH | ±0.2nH | 700 mA | - | Unshielded | 150mOhm Max | 13 @ 500MHz | 12GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E1N5AFIXED IND 1.5NH 700MA 250MOHM SM |
4,621 | 0.06 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.5 nH | ±0.2nH | 700 mA | - | Unshielded | 250mOhm Max | 13 @ 500MHz | 10GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E1N5ATDFIXED IND 1.5NH 700MA 250MOHM SM |
1,041 | 0.07 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 1.5 nH | ±0.2nH | 700 mA | - | Unshielded | 250mOhm Max | 13 @ 500MHz | 10GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
|
|
36401E22NJFIXED IND 22NH 90MA 2.65 OHM SMD |
2,340 | 0.06 |
|
Datasheet |
3640, Sigma Inductors | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Thin Film | - | 22 nH | ±5% | 90 mA | - | Unshielded | 2.65Ohm Max | 13 @ 500MHz | 2.8GHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.015" (0.37mm) |
