Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
70F687AP-RCFIXED IND 680NH 1A 200 MOHM TH |
1,895 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 680 nH | ±20% | 1 A | - | Unshielded | 200mOhm Max | 48 @ 25MHz | 240MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F752AF-RCFIXED IND 75MH 33MA 222 OHM TH |
2,057 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 75 mH | ±5% | 33 mA | - | Unshielded | 222Ohm Max | 53 @ 79kHz | 174kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.430" Dia x 0.630" L (10.92mm x 16.00mm) | - |
|

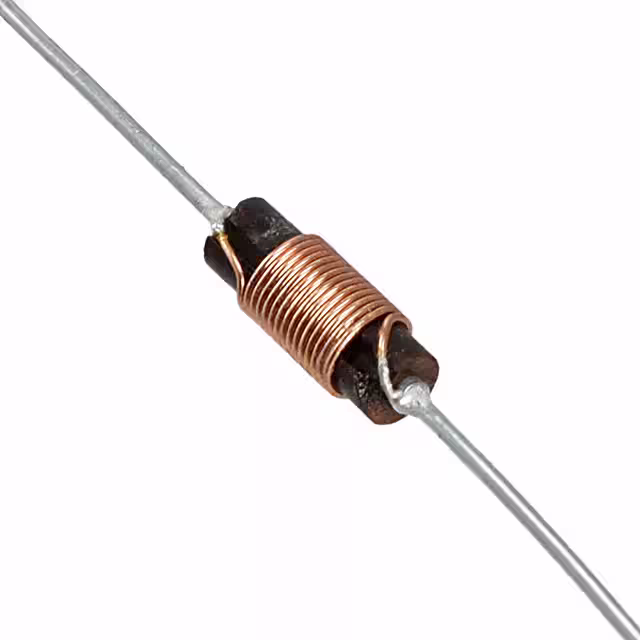

70F337AP-RCFIXED IND 330NH 1.69A 700MOHM TH |
3,598 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 330 nH | ±20% | 1.69 A | - | Unshielded | 700mOhm Max | 47 @ 25MHz | 330MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|
|
70F754AI-RCFIXED IND 750UH 80MA 22.9 OHM TH |
2,820 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 750 µH | ±5% | 80 mA | - | Unshielded | 22.9Ohm Max | 40 @ 790kHz | 1.6MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.210" Dia x 0.250" L (5.33mm x 6.35mm) | - |
|
|
70F755AI-RCFIXED IND 75UH 162MA 4.56 OHM TH |
2,305 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 75 µH | ±5% | 162 mA | - | Unshielded | 4.56Ohm Max | 38 @ 2.5MHz | 7.2MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.180" Dia x 0.250" L (4.57mm x 6.35mm) | - |
|

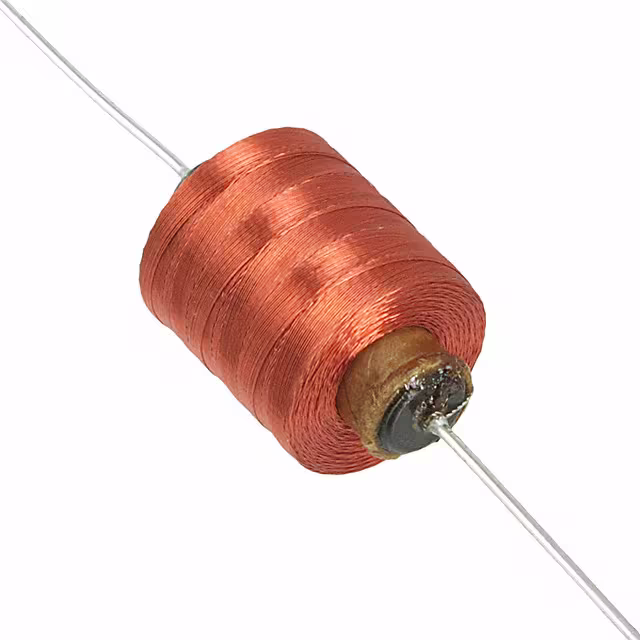

70F391AF-RCFIXED IND 390MH 33MA 617 OHM TH |
2,066 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 mH | ±5% | 33 mA | - | Unshielded | 617Ohm Max | 54 @ 25kHz | 56kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.600" Dia x 0.880" L (15.24mm x 22.35mm) | - |
|
|
70F756AI-RCFIXED IND 7.5UH 566MA 624MOHM TH |
2,418 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 7.5 µH | ±10% | 566 mA | - | Unshielded | 624mOhm Max | 32 @ 7.9MHz | 44MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|
|
70F392AF-RCFIXED IND 39MH 41MA 147 OHM TH |
4,891 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 39 mH | ±5% | 41 mA | - | Unshielded | 147Ohm Max | 59 @ 79kHz | 220kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.370" Dia x 0.630" L (9.40mm x 16.00mm) | - |
|
70F155AI-RCFIXED IND 15UH 250MA 1.92 OHM TH |
4,199 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 µH | ±10% | 250 mA | - | Unshielded | 1.92Ohm Max | 52 @ 2.5MHz | 16MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) | - |
|
70F224AI-RCFIXED IND 220UH 114MA 11.5OHM TH |
1,326 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 220 µH | ±5% | 114 mA | - | Unshielded | 11.5Ohm Max | 46 @ 790kHz | 2.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|
70F275AI-RCFIXED IND 27UH 213MA 2.64 OHM TH |
1,033 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 27 µH | ±5% | 213 mA | - | Unshielded | 2.64Ohm Max | 49 @ 2.5MHz | 12MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) | - |
|

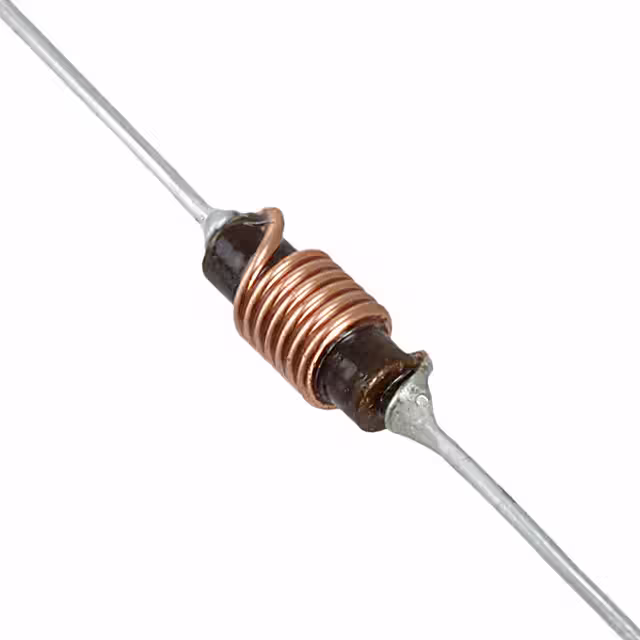

70F107AP-RCFIXED IND 100NH 3.922A 130MOHM |
4,188 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 100 nH | ±20% | 3.922 A | - | Unshielded | 130mOhm Max | 49 @ 25MHz | 600MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.150" Dia x 0.310" L (3.81mm x 7.87mm) | - |
|

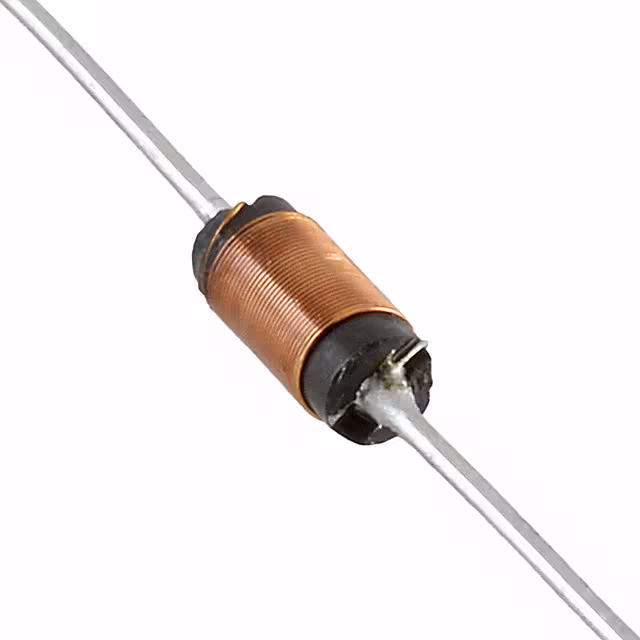

70F566AI-RCFIXED IND 5.6UH 637MA 492MOHM TH |
4,840 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 µH | ±10% | 637 mA | - | Unshielded | 492mOhm Max | 41 @ 7.9MHz | 49MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) | - |
|

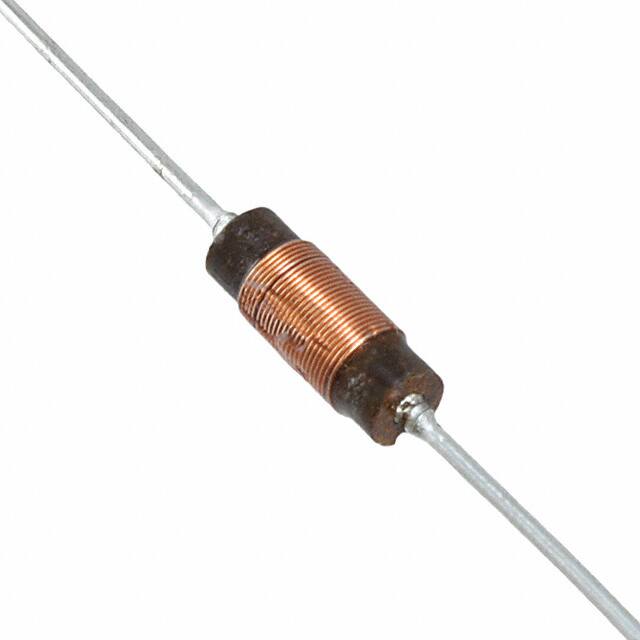

70F757AP-RCFIXED IND 750NH 870MA 264MOHM TH |
2,635 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Wirewound | Phenolic | 750 nH | ±20% | 870 mA | - | Unshielded | 264mOhm Max | 48 @ 25MHz | 224MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) | - |
|

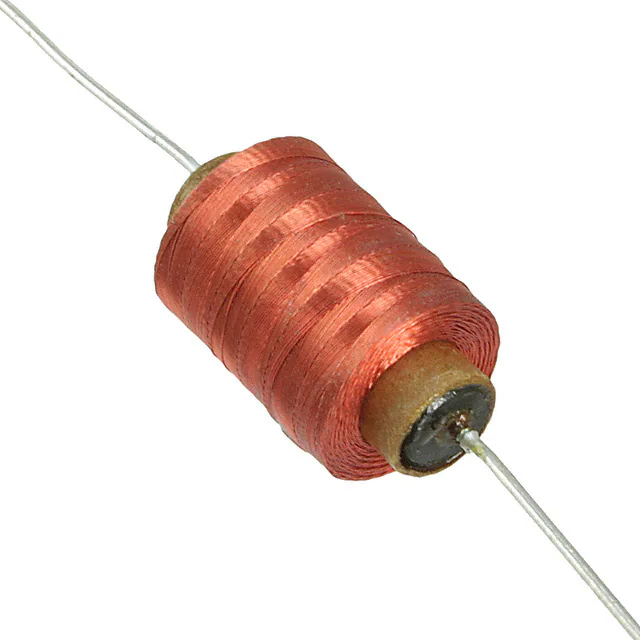

70F251AF-RCFIXED IND 250MH 37MA 468 OHM TH |
1,658 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 250 mH | ±5% | 37 mA | - | Unshielded | 468Ohm Max | 52 @ 25kHz | 65kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.550" Dia x 0.880" L (13.97mm x 22.35mm) | - |
|
70F501AF-RCFIXED IND 500MH 30MA 736 OHM TH |
3,384 | 0.00 |
|
Datasheet |
70F | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 500 mH | ±5% | 30 mA | - | Unshielded | 736Ohm Max | 53 @ 25kHz | 52kHz | - | -55°C ~ 105°C | 25 kHz | - | Through Hole | - | 0.630" Dia x 0.880" L (16.00mm x 22.35mm) | - |
|
70F122AI-RCFIXED IND 12MH 50MA 100 OHM TH |
2,946 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 12 mH | ±5% | 50 mA | - | Unshielded | 100Ohm Max | 46 @ 79kHz | 360kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
|
70F152AI-RCFIXED IND 15MH 47MA 113 OHM TH |
3,579 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 15 mH | ±5% | 47 mA | - | Unshielded | 113Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.300" Dia x 0.500" L (7.62mm x 12.70mm) | - |
|
70F253AI-RCFIXED IND 2.5MH 57MA 45.6 OHM TH |
4,058 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 2.5 mH | ±5% | 57 mA | - | Unshielded | 45.6Ohm Max | 48 @ 250kHz | 960kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.260" Dia x 0.380" L (6.60mm x 9.65mm) | - |
|
70F563AI-RCFIXED IND 5.6MH 46MA 69.6 OHM TH |
4,553 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Iron | 5.6 mH | ±5% | 46 mA | - | Unshielded | 69.6Ohm Max | 53 @ 250kHz | 680kHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.300" Dia x 0.380" L (7.62mm x 9.65mm) | - |
