Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

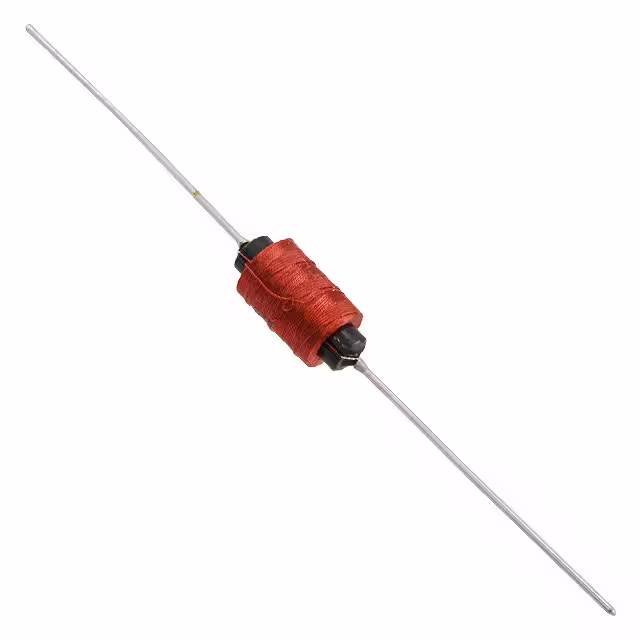

70F252AF-RCFIXED IND 25MH 46MA 115 OHM TH |
1,591 | 0.00 |
|
Datasheet |
70F | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 25 mH | ±5% | 46 mA | - | Unshielded | 115Ohm Max | 59 @ 79kHz | 250kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.340" Dia x 0.630" L (8.64mm x 16.00mm) | - |
|
ELC-15E391LFIXED IND 390UH 1.5A 190 MOHM TH |
1,296 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 1.5 A | - | Shielded | 190mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E392LFIXED IND 3.9MH 470MA 1.7 OHM TH |
4,708 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 470 mA | - | Shielded | 1.7Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E470LFIXED IND 47UH 3.7A 37 MOHM TH |
2,653 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 3.7 A | - | Shielded | 37mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E471LFIXED IND 470UH 1.3A 210 MOHM TH |
2,143 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.3 A | - | Shielded | 210mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E121LFIXED IND 120UH 2.6A 59 MOHM TH |
1,755 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2.6 A | - | Shielded | 59mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E472LFIXED IND 4.7MH 430MA 2.4 OHM TH |
1,345 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 430 mA | - | Shielded | 2.4Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E122LFIXED IND 1.2MH 850MA 540MOHM TH |
4,463 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 850 mA | - | Shielded | 540mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E560LFIXED IND 56UH 3.6A 39 MOHM TH |
1,281 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 3.6 A | - | Shielded | 39mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E150LFIXED IND 15UH 4.7A 22 MOHM TH |
4,014 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 4.7 A | - | Shielded | 22mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E561LFIXED IND 560UH 1.2A 280 MOHM TH |
3,229 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.2 A | - | Shielded | 280mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E151LFIXED IND 150UH 2.4A 77 MOHM TH |
3,102 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2.4 A | - | Shielded | 77mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E152LFIXED IND 1.5MH 800MA 710MOHM TH |
4,824 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 800 mA | - | Shielded | 710mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E5R6LFIXED IND 5.6UH 6.8A 12 MOHM TH |
1,814 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 6.8 A | - | Shielded | 12mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E180LFIXED IND 18UH 4.5A 24 MOHM TH |
1,597 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 4.5 A | - | Shielded | 24mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E680LFIXED IND 68UH 3.5A 45 MOHM TH |
1,546 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.5 A | - | Shielded | 45mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E181LFIXED IND 180UH 2.3A 100 MOHM TH |
1,937 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 2.3 A | - | Shielded | 100mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E681LFIXED IND 680UH 1.1A 310 MOHM TH |
4,051 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.1 A | - | Shielded | 310mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E220LFIXED IND 22UH 4.3A 27 MOHM TH |
1,441 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 4.3 A | - | Shielded | 27mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
|
|
ELC-15E6R8LFIXED IND 6.8UH 6.3A 13 MOHM TH |
2,056 | 0.00 |
|
Datasheet |
15E-L | Radial, Vertical Cylinder, 3 Leads | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 6.3 A | - | Shielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.906" (23.00mm) |
