Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-92114FIXED IND 35.6UH 5A 23 MOHM TH |
1,419 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia x 0.550" W (26.67mm x 13.97mm) | - |
|
|
PE-92114KFIXED IND 35.6UH 5A 23 MOHM TH |
4,157 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.970" L x 0.610" W (24.64mm x 15.50mm) | 1.100" (27.94mm) |
|
|
PE-92116KFIXED IND 55UH 7A 17 MOHM TH |
3,528 | 0.00 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Obsolete | Toroidal | - | 55 µH | ±20% | 7 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
|
PE-92405FIXED IND 145UH 3A 87 MOHM TH |
4,171 | 0.00 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | - | 145 µH | ±20% | 3 A | - | Unshielded | 87mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|
|
PE-92414FIXED IND 35.6UH 5A 23 MOHM TH |
1,272 | 0.00 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Obsolete | Toroidal | - | 35.6 µH | ±20% | 5 A | - | Unshielded | 23mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.050" Dia (26.67mm) | 0.550" (13.97mm) |
|
|
PE-92416FIXED IND 55UH 7A 17 MOHM TH |
4,847 | 0.00 |
|
Datasheet |
- | Radial, Horizontal (Open) | Tray | Active | Toroidal | - | 55 µH | ±20% | 7 A | - | Unshielded | 17mOhm Max | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 1.400" Dia (35.56mm) | 0.700" (17.78mm) |
|

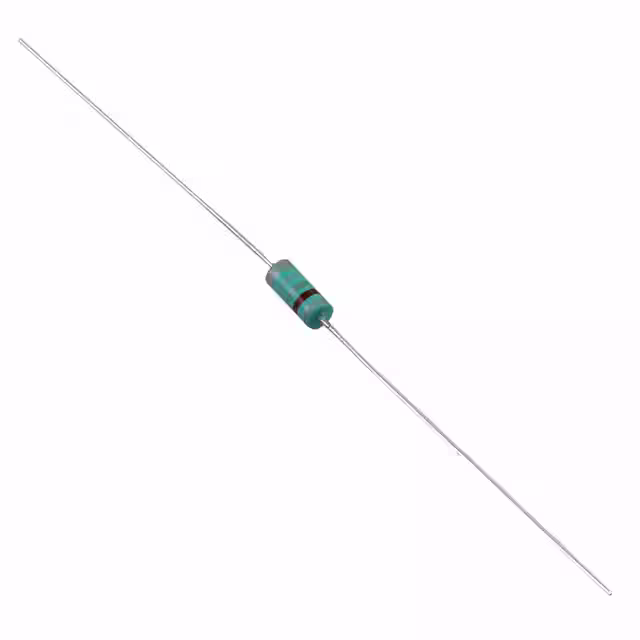

IM02EB100KFIXED IND 10UH 130MA 3.7 OHM TH |
3,419 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 10 µH | ±10% | 130 mA | - | Unshielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB101KFIXED IND 100UH 84MA 8 OHM TH |
1,557 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Ferrite | 100 µH | ±10% | 84 mA | - | Unshielded | 8Ohm Max | 50 @ 2.5MHz | 13MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB102KFIXED IND 1MH 28MA 72 OHM TH |
4,526 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Ferrite | 1 mH | ±10% | 28 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB150KFIXED IND 15UH 150MA 2.8 OHM TH |
4,960 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 15 µH | ±10% | 150 mA | - | Unshielded | 2.8Ohm Max | 40 @ 2.5MHz | 35MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB1R0KFIXED IND 1UH 385MA 1 OHM TH |
2,220 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Phenolic | 1 µH | ±10% | 385 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB1R2KFIXED IND 1.2UH 590MA 180MOHM TH |
3,224 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 1.2 µH | ±10% | 590 mA | - | Unshielded | 180mOhm Max | 25 @ 7.9MHz | 150MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB1R8KFIXED IND 1.8UH 455MA 300MOHM TH |
4,461 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 1.8 µH | ±10% | 455 mA | - | Unshielded | 300mOhm Max | 30 @ 7.9MHz | 125MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB220KFIXED IND 22UH 140MA 3.3 OHM TH |
3,633 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 22 µH | ±10% | 140 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB221KFIXED IND 220UH 52MA 21 OHM TH |
3,782 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Ferrite | 220 µH | ±10% | 52 mA | - | Unshielded | 21Ohm Max | 30 @ 790kHz | 9MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB2R2KFIXED IND 2.2UH 395MA 400MOHM TH |
3,010 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 2.2 µH | ±10% | 395 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB2R7KFIXED IND 2.7UH 355MA 550MOHM TH |
2,705 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 2.7 µH | ±10% | 355 mA | - | Unshielded | 550mOhm Max | 37 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB330KFIXED IND 33UH 130MA 3.4 OHM TH |
3,496 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Ferrite | 33 µH | ±10% | 130 mA | - | Unshielded | 3.4Ohm Max | 45 @ 2.5MHz | 24MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB331KFIXED IND 330UH 45MA 28 OHM TH |
4,364 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Ferrite | 330 µH | ±10% | 45 mA | - | Unshielded | 28Ohm Max | 30 @ 790kHz | 7MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
IM02EB390KFIXED IND 39UH 125MA 3.6 OHM TH |
2,333 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Ferrite | 39 µH | ±10% | 125 mA | - | Unshielded | 3.6Ohm Max | 45 @ 2.5MHz | 22MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
