Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

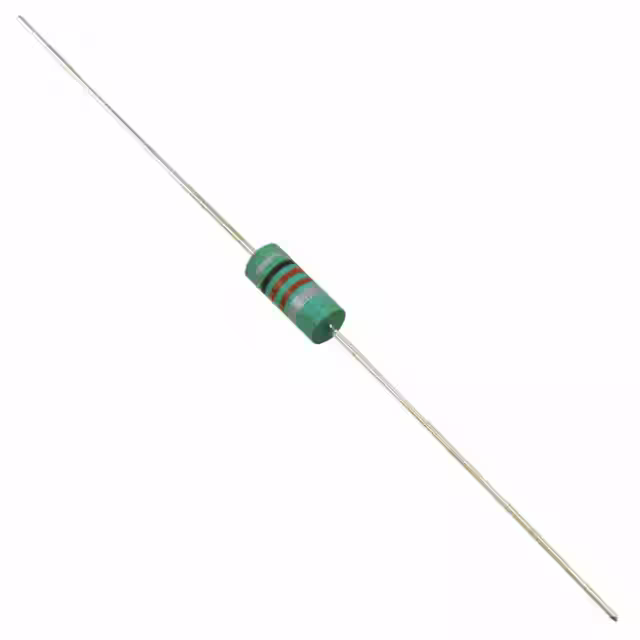

IM04EB330KFIXED IND 33UH 165MA 3 OHM TH |
3,996 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 33 µH | ±10% | 165 mA | - | Unshielded | 3Ohm Max | 65 @ 2.5MHz | 19MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EB390KFIXED IND 39UH 176MA 2.6 OHM TH |
4,785 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 39 µH | ±10% | 176 mA | - | Unshielded | 2.6Ohm Max | 60 @ 2.5MHz | 14.5MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EB3R3KFIXED IND 3.3UH 300MA 2 OHM TH |
2,936 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Phenolic | 3.3 µH | ±10% | 300 mA | - | Unshielded | 2Ohm Max | 33 @ 7.9MHz | 110MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

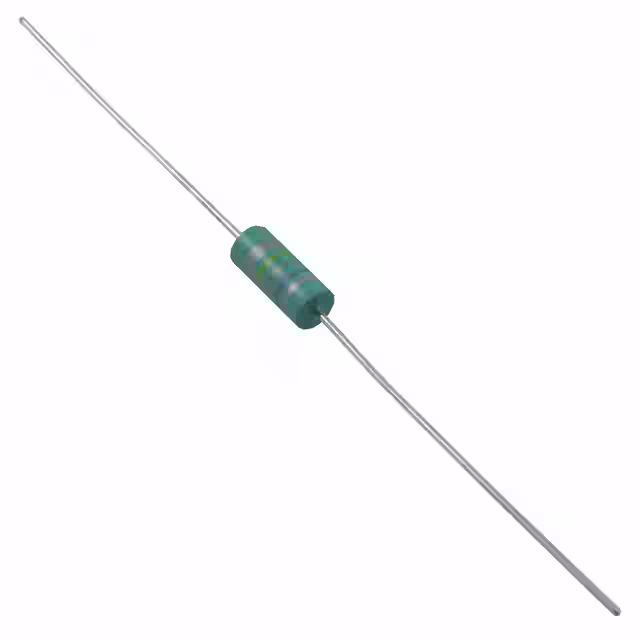

IM04EB4R7KFIXED IND 4.7UH 260MA 2.6 OHM TH |
3,327 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Phenolic | 4.7 µH | ±10% | 260 mA | - | Unshielded | 2.6Ohm Max | 33 @ 7.9MHz | 90MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

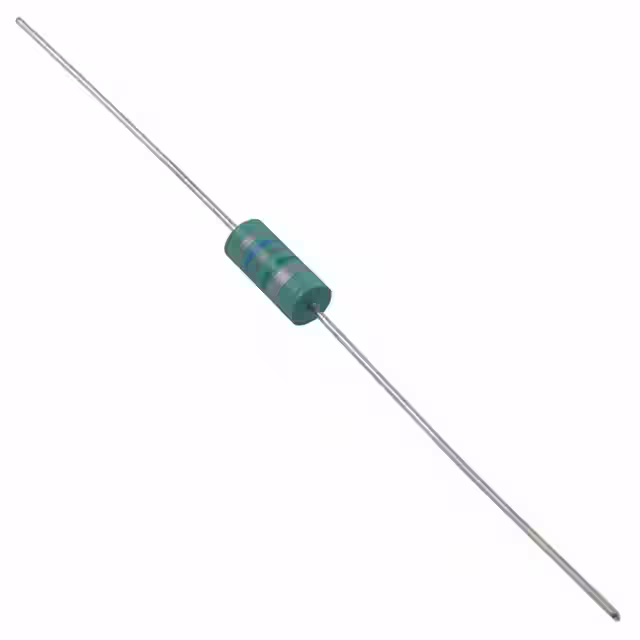

IM04EB5R6KFIXED IND 5.6UH 495MA 320MOHM TH |
2,826 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 5.6 µH | ±10% | 495 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EB6R8KFIXED IND 6.8UH 395MA 500MOHM TH |
3,150 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 6.8 µH | ±10% | 395 mA | - | Unshielded | 500mOhm Max | 50 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|

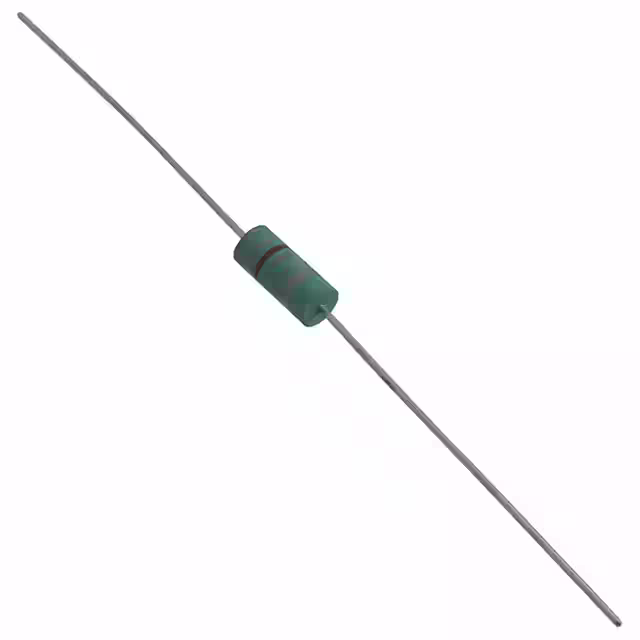

IM04EB8R2KFIXED IND 8.2UH 360MA 600MOHM TH |
2,272 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Iron | 8.2 µH | ±10% | 360 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EBR15MFIXED IND 150NH 2.45A 30 MOHM TH |
4,913 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Phenolic | 150 nH | ±20% | 2.45 A | - | Unshielded | 30mOhm Max | 50 @ 25MHz | 525MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IM04EBR33MFIXED IND 330NH 1.4A 90 MOHM TH |
4,749 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Phenolic | 330 nH | ±20% | 1.4 A | - | Unshielded | 90mOhm Max | 45 @ 25MHz | 360MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
IM04EBR47MFIXED IND 470NH 1.225A 120 MOHM |
4,004 | 0.00 |
|
Datasheet |
IM | Axial | Bulk | Obsolete | Molded | Phenolic | 470 nH | ±20% | 1.225 A | - | Unshielded | 120mOhm Max | 45 @ 25MHz | 310MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
IMS05EB100KFIXED IND 10UH 220MA 1.62 OHM TH |
4,774 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 10 µH | ±10% | 220 mA | - | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB101KFIXED IND 100UH 160MA 3.12OHM TH |
2,861 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 100 µH | ±10% | 160 mA | 120mA | Shielded | 3.12Ohm Max | 50 @ 2.5MHz | 10MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB102KFIXED IND 1MH 70MA 17.5 OHM TH |
2,982 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 1 mH | ±10% | 70 mA | 40mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB150KFIXED IND 15UH 315MA 800 MOHM TH |
1,326 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 15 µH | ±10% | 315 mA | 250mA | Shielded | 800mOhm Max | 45 @ 2.5MHz | 49MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB1R0KFIXED IND 1UH 1.07A 70 MOHM TH |
4,685 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 1 µH | ±10% | 1.07 A | - | Shielded | 70mOhm Max | 44 @ 25MHz | 140MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB1R2KFIXED IND 1.2UH 895MA 100MOHM TH |
2,447 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 1.2 µH | ±10% | 895 mA | - | Shielded | 100mOhm Max | 44 @ 7.9MHz | 130MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB1R8KFIXED IND 1.8UH 775MA 140MOHM TH |
1,183 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 1.8 µH | ±10% | 775 mA | - | Shielded | 140mOhm Max | 44 @ 7.9MHz | 105MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB220KFIXED IND 22UH 290MA 960 MOHM TH |
1,572 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 22 µH | ±10% | 290 mA | 220mA | Shielded | 960mOhm Max | 45 @ 2.5MHz | 41MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB221KFIXED IND 220UH 125MA 5 OHM TH |
3,314 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Ferrite | 220 µH | ±10% | 125 mA | 80mA | Shielded | 5Ohm Max | 55 @ 790kHz | 7.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
IMS05EB2R2KFIXED IND 2.2UH 650MA 190MOHM TH |
2,852 | 0.00 |
|
Datasheet |
IMS-5 | Axial | Bulk | Obsolete | Molded | Iron Powder | 2.2 µH | ±10% | 650 mA | - | Shielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
