Fixed Inductors
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4494R-107FIXED IND 100MH 50MA 50 OHM SMD |
4,508 | 9.07 |
|
Datasheet |
4494R | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 mH | ±25% | 50 mA | 2mA | Unshielded | 50Ohm | 150 @ 25KHz | 150kHz | - | -20°C ~ 80°C | 25 kHz | - | Surface Mount | - | 0.465" L x 0.405" W (11.81mm x 10.29mm) | 0.235" (5.97mm) |
|
|
4494R-125FIXED IND 1.2MH 480MA 570MOHM SM |
1,057 | 9.07 |
|
Datasheet |
4494R | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 1.2 mH | ±25% | 480 mA | 24mA | Unshielded | 570mOhm | 100 @ 250kHz | 1.5MHz | - | -20°C ~ 80°C | 250 kHz | - | Surface Mount | - | 0.465" L x 0.405" W (11.81mm x 10.29mm) | 0.235" (5.97mm) |
|
|
4494R-226FIXED IND 22MH 100MA 13 OHM SMD |
2,762 | 9.07 |
|
Datasheet |
4494R | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 mH | ±25% | 100 mA | 6mA | Unshielded | 13Ohm | 150 @ 79kHz | 280kHz | - | -20°C ~ 80°C | 79 kHz | - | Surface Mount | - | 0.465" L x 0.405" W (11.81mm x 10.29mm) | 0.235" (5.97mm) |
|
|
4494R-475FIXED IND 4.7MH 260MA 1.85OHM SM |
1,639 | 9.07 |
|
Datasheet |
4494R | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 mH | ±25% | 260 mA | 15mA | Unshielded | 1.85Ohm | 100 @ 250kHz | 700kHz | - | -20°C ~ 80°C | 250 kHz | - | Surface Mount | - | 0.465" L x 0.405" W (11.81mm x 10.29mm) | 0.235" (5.97mm) |
|
|
4494R-476FIXED IND 47MH 80MA 19 OHM SMD |
2,907 | 9.07 |
|
Datasheet |
4494R | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±25% | 80 mA | 4mA | Unshielded | 19Ohm | 130 @ 79kHz | 200kHz | - | -20°C ~ 80°C | 79 kHz | - | Surface Mount | - | 0.465" L x 0.405" W (11.81mm x 10.29mm) | 0.235" (5.97mm) |
|

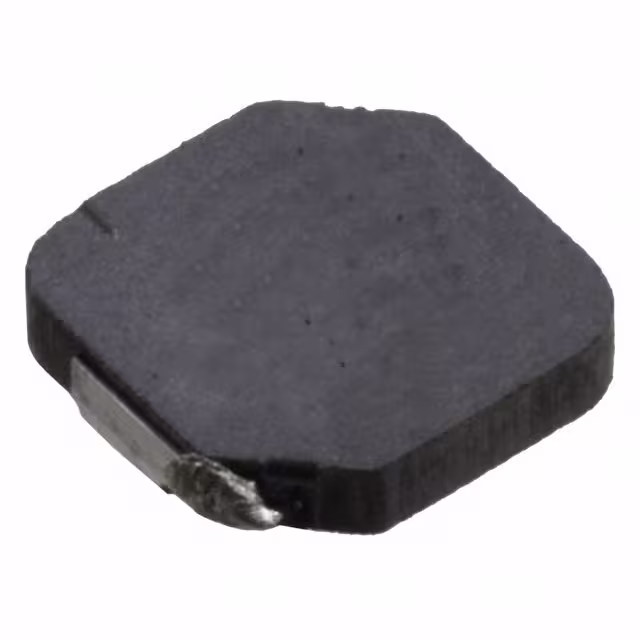

ETQ-P1W1R0WFPFIXED IND 1UH 4.4A 46.5 MOHM SMD |
4,622 | 0.00 |
|
Datasheet |
PCC-M0512W (MC) | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | - | - | 1 µH | ±20% | 4.4 A | - | Shielded | 46.5mOhm | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.047" (1.20mm) |
|
|
Z144EFIXED IND 1.8UH 1.1A 330 MOHM TH |
1,389 | 5.95 |
|
Datasheet |
Z | Axial | Bulk | Active | - | - | 1.8 µH | - | 1.1 A | - | - | 330mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.187" Dia x 0.750" L (4.76mm x 19.05mm) | - |
|
|
Z460FIXED IND 200NH 4A 34 MOHM TH |
4,079 | 0.00 |
|
Datasheet |
Z | Axial | Bulk | Active | - | - | 200 nH | - | 4 A | - | - | 34mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.156" Dia x 0.500" L (3.97mm x 12.70mm) | - |
|
|
Z460EFIXED IND 200NH 4A 34 MOHM TH |
3,230 | 10.14 |
|
Datasheet |
Z | Axial | Bulk | Active | - | - | 200 nH | - | 4 A | - | - | 34mOhm | - | - | - | - | 1 kHz | - | Through Hole | - | 0.156" Dia x 0.500" L (3.97mm x 12.70mm) | - |
|
|
Z7EFIXED IND 84UH 1A 4.7 OHM |
2,913 | 31.49 |
|
Datasheet |
Z | - | Bulk | Active | - | - | 84 µH | - | 1 A | - | - | 4.7Ohm | - | - | - | - | 1 kHz | - | - | - | 0.563" Dia x 6.000" L (14.30mm x 152.40mm) | - |
|
|
ELC-08D100EFIXED IND 10UH 2.8A 22 MOHM TH |
3,876 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 10 µH | ±20% | 2.8 A | - | Unshielded | 22mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D101EFIXED IND 100UH 800MA 120MOHM TH |
1,642 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 100 µH | ±10% | 800 mA | - | Unshielded | 120mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D102EFIXED IND 1MH 290MA 1.3 OHM TH |
3,583 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 1 mH | ±10% | 290 mA | - | Unshielded | 1.3Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D151EFIXED IND 150UH 700MA 200MOHM TH |
3,987 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 150 µH | ±10% | 700 mA | - | Unshielded | 200mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D220EFIXED IND 22UH 2A 34 MOHM TH |
4,187 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 22 µH | ±10% | 2 A | - | Unshielded | 34mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D222EFIXED IND 2.2MH 200MA 2.8 OHM TH |
3,974 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.2 mH | ±10% | 200 mA | - | Unshielded | 2.8Ohm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D2R2EFIXED IND 2.2UH 7.2A 10 MOHM TH |
2,308 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.2 µH | ±20% | 7.2 A | - | Unshielded | 10mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D2R7EFIXED IND 2.7UH 6.3A 11 MOHM TH |
2,621 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 2.7 µH | ±20% | 6.3 A | - | Unshielded | 11mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D3R3EFIXED IND 3.3UH 5.7A 13 MOHM TH |
1,179 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 3.3 µH | ±20% | 5.7 A | - | Unshielded | 13mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
|
|
ELC-08D4R7EFIXED IND 4.7UH 4.3A 15 MOHM TH |
1,035 | 0.00 |
|
Datasheet |
08D | Radial, Vertical Cylinder | Bulk | Obsolete | - | Ferrite | 4.7 µH | ±20% | 4.3 A | - | Unshielded | 15mOhm | - | - | - | - | 10 kHz | - | Through Hole | - | 0.315" Dia (8.00mm) | 0.512" (13.00mm) |
